Overhead Bare Aluminum Conductor AAC AAAC ACSR ACAR Conductor

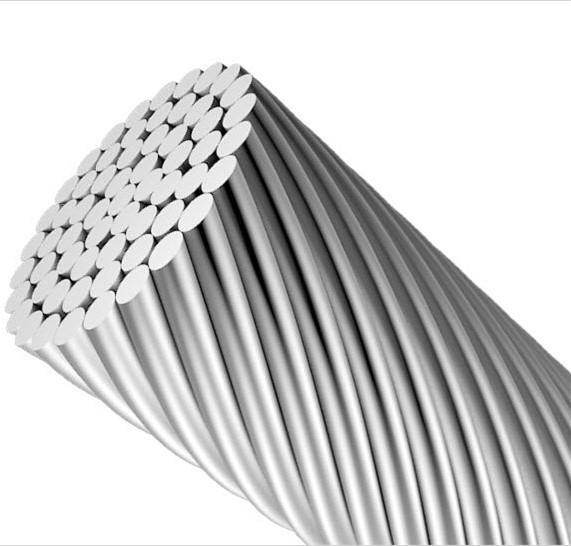

Overhead Bare Aluminum Conductor AAC AAAC ACSR ACAR Conductor image

Get a Quote Email to us

Brand Name :
Sanwu

Model Number :
AAAC

Certification :
ISO CCC

Place of Origin :
Henan

MOQ :
1000M

Price :
Negotiable

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
200 tons per day

Delivery Time :
1-15days

Packaging Details :
Export steel or wooden drum

Material :
All Aluminum Alloy Conductor

Application :
Overhead transmission line

Voltage :
LV,MV,HV

Standard :
IEC,ASTM,BS,DIN,NFC,CSA

Type :
55 sq mm aaac conductor

Size :
55 Sq Mm/ 34 Sq Mm

ASTM IEC BS Bare All Aluminum Alloy Strand Power Electrical Wire Overhead Conductor

AAAC Conductor All Aluminum Alloy Conductor Standard: IEC60889, ASTM B232,BS 215 AAAC Cable can be used in Medium, High and Extra-High voltage transmission lines. AAAC offers better sag performance due to the high strength-to-weight ratio provided by the aluminum-alloy. In addition, AAAC provides a higher corrosion resistance than ACSR conductors.

Construction
Standard 6201-T81 high strength aluminum conductors, conforming to IEC61089 Specification, are concentric-lay- stranded, similar in construction and appearance to 1350 grade aluminum conductors. Standard 6201 alloy conductors are similar to other alloy conductors commercially known as Ardival, Aldrey or Almelec. They were developed to fill the need for an economical conductor for overhead applications requiring higher strength than that obtainable with 1350 grade aluminum conductors, but without a steel core. The DC resistance at 20°C of the 6201-T81 conductors and of the standard ACSR of the same diameter are approximately the same. Conductors of the 6201-T81 alloys are harder and, therefore, have a greater resistance to abrasion than conductors of 1350-H19 grade aluminum.

ASTM B399

Code Name	Area		Size & Stranding of ACSR with Equal Diameter		No. & Diameter of wires	Overall Diameter	Weight	Nominal Breaking Load
	Nominal	Actual	Size & Stranding of ACSR with Equal Diameter		No. & Diameter of wires	Overall Diameter	Weight	Nominal Breaking Load
	MCM	mm2	AWG or MCM	Al/Steel	mm	mm	kg/km	kN
Akron	30.58	15.48	6	6/1	7/1.68	5.04	42.7	4.92
Alton	48.69	24.71	4	6/1	7/2.12	6.35	68.0	7.84
Ames	77.47	39.22	2	6/1	7/2.67	8.02	108	12.45
Azusa	123.3	62.38	1/0	6/1	7/3.37	10.11	172	18.97
Anaheim	155.4	78.65	2/0	6/1	7/3.78	11.35	217	23.93
Amherst	195.7	99.22	3/0	6/1	7/4.25	12.75	273	30.18
Alliance	246.9	125.1	4/0	6/1	7/4.77	14.31	345	38.05
Butte	312.8	158.6	266.8	26/7	19/3.26	16.30	437	48.76
Canton	394.5	199.9	336.4	26/7	19/3.66	18.30	551	58.91
Cairo	465.4	235.8	397.5	26/7	19/3.98	19.88	650	69.48
Darien	559.5	283.5	477.0	26/7	19/4.36	21.79	781	83.52
Elgin	652.4	330.6	556.5	26/7	19/4.71	23.54	911	97.42
Flint	740.8	375.3	636.0	26/7	37/3.59	25.16	1035	108.21
Greely	927.2	469.8	795.0	26/7	37/4.02	28.14	1295	135.47

IEC 61089

Code Number	A2 Conductor					A3 Conductor					Max.D.C. Resistance of Conductor at 20ºC
Code Number	Number of Wires	Diameter of Wires	Diameter of Conductor	Approx. Weight	Rated Strength	Number of Wires	Diameter of Wires	Diameter of Conductor	Approx. Weight	Rated Strength	Max.D.C. Resistance of Conductor at 20ºC
mm²	–	mm	mm	kg/km	daN	–	mm	mm	kg/km	daN	Ω/km
16	7	1.83	5.49	50.4	5.43	7	1.84	5.52	50.8	6.04	1.7896
25	7	2.29	6.87	78.7	8.49	7	2.30	6.9	79.5	9.44	1.1453
40	7	2.89	8.67	125.9	13.58	7	2.91	8.73	127.1	15.1	0.7158
63	7	3.63	10.8	198.3	21.39	7	3.65	10.95	200.2	23.06	0.4545
100	19	2.78	13.9	316.3	33.95	19	2.79	13.95	319.3	37.76	0.2877
125	19	3.10	15.5	395.4	42.44	19	3.12	15.6	399.2	47.20	0.2302
160	19	3.51	17.55	506.1	54.32	19	3.53	17.65	511.0	58.56	0.1798
200	19	3.93	19.65	623.7	67.91	19	3.95	19.75	638.7	73.20	0.1439
250	19	4.39	21.95	790.8	84.68	19	4.41	22.05	798.4	91.50	0.1151
315	37	3.53	24.71	998.9	106.95	37	3.55	24.85	1008.4	115.29	0.0916
400	37	3.98	27.86	1268.4	135.81	37	4.0	28	1280.5	146.4o	0.0721
450	37	4.22	29.54	1426.9	152.79	37	4.24	29.68	1440.5	164.70	0.0641
500	37	4.45	31.15	1585.5	169.76	37	4.47	31.29	1600.6	183.oo	0.0577
560	61	3.67	33.03	1778.4	190.14	61	3.69	33.21	1795.3	204.95	0.0516
630	61	3.89	35.01	2000.7	213.90	61	3.91	35.19	2019.8	230.58	0.0458
710	61	4.13	37.17	2254.8	241.07	61	4.15	37.35	2276.2	259.86	0.0407
800	61	4.38	39.42	2540.6	271.62	61	4.4	39.6	2564.8	282.80	0.0361
900	91	3.81	41.91	2861.1	305.58	91	3.83	42.13	2888.3	329.40	0.0321
1000	91	4.01	44.11	3179.0	339.53	91	4.03	44.33	3209.3	366.00	0.0289
1120	91	4.25	46.75	3560.5	380.27	91	4.27	46.97	3594.4	409.92	0 0258
1250	91	4.49	49.39	3973.7	424.41			–	–	–	–

BS EN50183

<td style="box-sizing: border-box; margin: 0px; padding: 2px 5px; border: 1px solid rgb(204, 204, 204)

We are China Overhead Bare Aluminum Conductor AAC AAAC ACSR ACAR Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
