Overhead Bare All Aluminium Alloy Conductor AAAC 350mcm 400mcm ASTM B399

 China Overhead Bare All Aluminium Alloy Conductor AAAC 350mcm 400mcm ASTM B399 supplier

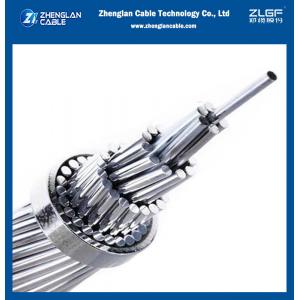

Overhead Bare All Aluminium Alloy Conductor AAAC 350mcm 400mcm ASTM B399 image

Get a Quote Email to us

Brand Name :Zhenglan Cable
Model Number :Overhead Bare Conductor Wire(Nominal Area:16-1120mm2), AAAC Conductor according to IEC 61089
Certification :ISO, CCC, CE
Place of Origin :Henan, China
MOQ :1000 meters
Price :0.1-100USD/m
Payment Terms :L/C, T/T,, Western Union
Supply Ability :15-30ton/day
Delivery Time :15 days
Packaging Details :Wooden drum, wood and steel drum,as customer’s request
Material :aluminum alloy conductor
Out Sheath Color :No
Core :Normal or Customized
Cable Mark :none
Country of original :China
Nominal Area :16-1120
Package :Wooden Drum/Wooden Steel Drum/Rolls
Color :Silver

Overhead Bare Conductor Wire all aluminium alloy conductor AAAC 350mcm 400mcm acoording to ASTM B399​

APPLICATION:

AAAC is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist.

Bare Conductor Wire STANDARD

Basic design to BS 3242 / BS EN 50182 / IEC 61089 / ASTM B 399/B 399M / DIN 48201 -6 standards.

Bare Conductor Wire CONSTRUCTION

AAAC cable bvconsists of aluminum alloy wires. The aluminum alloy wires are concentrically stranded.

This section deals with heat-treatable magnesium silicon type aluminium alloys to the applicable International Standard, the electrical and mechanical properties of which all fall within the values suggested by relevant standard. Conductors to all other recognized specifications can also be supplied. The alloys referred to have higher strength but lower conductivity than pure aluminium. Being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR; Having lower breaking loads than the later, their use becomes particularly favourable when ice and wind loadings are low.

(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

Bare Conductor Wire ELECTRICAL PROPERTIES

density@20ºC 2.70 kg/dm
Temperature Coefficient@20°C 0.00360 (°C)
resistivity@20°C 0.0326 Ohms mm2/m
linear Expansivity

23 x10-6 (°C)

SERVICE CONDITIONS

Ambient Temperature -5°C – 50°C
Wind Pressure 80 – 130kg/m
Seismic Acceleration 0.12 – 0.05g
Isokeraunic level 10 – 18
relative Humidity 5 – 100%

CONSTRUCTION PARAMETERS

Code Name Area No. and diameter Overall diameter Weight Nominal breaking load MAX .DC resistance at 20
Nominal Actual
MCM mm2 mm mm kg/km kN ohm/km
AKRON 30.58 15.5 7/1.68 5.04 42.58 4.92 2.159
ALTON 48.69 24.7 7/2.12 6.36 67.8 7.83 1.356
AMES 77.47 39.2 7/2.67 8.01 107.5 12.4 0.8547
AZUSA 123.3 62.4 7/3.37 10.11 171.3 18.9 0.5365
ANAHEIM 155.4 78.6 7/3.78 11.34 215.6 23.8 0.4264
AMHERST 195.7 99.3 7/4.25 12.75 272.5 30 0.3373
ALLIANCE 246.9 125 7/4.77 14.31 343.2 37.8 0.2678
BUTTE 312.8 159 19/3.26 16.3 435.1 46.5 0.2112
CANTON 394.5 200 19/3.66 18.3 548.5 58.6 0.1676
CAIRO 465.4 236 19/3.98 19.9 648.6 69.2 0.1417
DARIEN 559.5 284 19/4.36 21.8 778.3 83.1 0.1181
ELGIN 652.4 331 19/4.71 23.55 908.3 97 0.1012
FLINT 740.8 375 37/3.59 25.13 1028 107 0.08944
GREELEY 927.2 470 37/4.02 28.14 1289 135 0.07133
/ 1077.4 547 61/3.38 30.42 1502 156 0.0612
/ 1165.1 590 61/3.51 31.59 1620 167 0.05675
/ 1259.6 638 61/3.65 32.85 1751 181 0.05248
/ 1348.8 685 61/3.78 34.02 1878 194 0.04893
/ 1439.2 729 61/3.90 35.1 1999 207 0.04597

Product show

About Us

We, Zhenglan Cable Technology Co., Ltd, are manufacturer of cable and wire with over 20years' experience.
Our factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China.
Oversea sales center locates in Zhengzhou city, Henan, about 10minutes walk to Zhengdong Railway station, 45minutes' drive to Xinzheng International Airport.
Our main products are
  1. overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
  2. 1-35kv overhead transmission line use insulated conductor
  3. power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
  4. power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
  5. 300/300V, 300/500V, 450/750V cotrol cable, house wire

Why you choose us?

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

We are China Overhead Bare All Aluminium Alloy Conductor AAAC 350mcm 400mcm ASTM B399 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
