Overhead AAC All Aluminum Conductor , Electrical Transmission Line Conductor

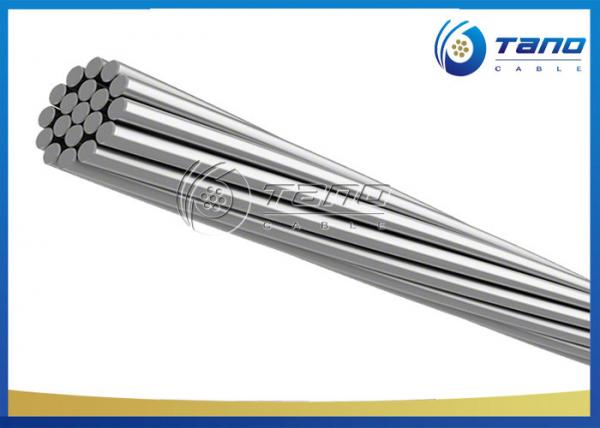

Overhead AAC All Aluminum Conductor , Electrical Transmission Line Conductor image
Brand Name :
Tano Cable
Model Number :
AAC
Certification :
ISO CE
Place of Origin :
China
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
3000 KM/ Per Month
Delivery Time :
7-20 Days
Packaging Details :
by all wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery
Product Name :
AAC
Conductor :
All Aluminum Conductor
Application :
Overhead Electrical Transmission
Package :
Roll and Wooden Drum
Standard :
AS 1531
Material :
Hard Drawn AL Wire
TANO CABLE All Aluminum Conductor Overhead Electrical Transmission Bare Conductor AAC
Application of AAC
All Aluminium bare conductors are used for aerial distribution lines having relatively short spans, aerial feeders and bus bars of substations.
Description of AAC
Hard drawn Aluminum wires, stranded in successive layers, in opposite direction to form the Aluminum stranded AAC conductor.
Standard of AAC
AS 1531
Technical Specification of AAC
| AS 1531 | |||||||
| Code Name | Nominal Area |
No./Nominal diameter of wires |
Approximate Overal Diameter |
Approximate Weight |
Nominal Breaking Load |
Nominal DC Resistance at 20°C |
|
| mm2 | No./mm | mm | kg/km | KN | ohm/km | ||
| Leo | 34.4 | 7/2.50 | 7.50 | 94.3 | 5.7 | 0.8330 | |
| Leonids | 41.6 | 7/2.75 | 8.25 | 113.0 | 6.7 | 0.6890 | |
| Libra | 49.5 | 7/3.00 | 9.00 | 135.0 | 8.0 | 0.5790 | |
| Mars | 77.3 | 7/3.75 | 11.30 | 211.0 | 11.8 | 0.3700 | |
| Mercury | 111.0 | 7/4.50 | 13.50 | 304.0 | 16.9 | 0.2580 | |
| Moon | 124.0 | 7/4.75 | 14.30 | 339.0 | 18.9 | 0.2320 | |
| Neptune | 158.0 | 19/3.25 | 16.30 | 433.0 | 24.7 | 0.1830 | |
| Orion | 183.0 | 19/3.50 | 17.50 | 503.0 | 28.7 | 0.1570 | |
| Pluto | 210.0 | 19/3.75 | 18.80 | 576.0 | 31.9 | 0.1370 | |
| Saturn | 262.0 | 37/3.00 | 21.00 | 721.0 | 42.2 | 0.1100 | |
| Sirius | 307.0 | 37/3.25 | 22.80 | 845.0 | 48.2 | 0.0940 | |
| Taurus | 337.0 | 19/4.75 | 23.80 | 924.0 | 51.3 | 0.0857 | |
| Triton | 409.0 | 37/3.75 | 26.30 | 1120.0 | 62.2 | 0.0706 | |
| Uranus | 506.0 | 61/3.25 | 29.30 | 1400.0 | 75.2 | 0.0572 | |
| Ursula | 587.0 | 61/3.50 | 31.50 | 1620.0 | 87.3 | 0.0493 | |
| Venus | 673.0 | 61/3.75 | 33.80 | 1860.0 | 97.2 | 0.0429 | |
Construction of AAC
Advantage of AAC
Adof aac aaac power cable
1. High quality aluminum raw material.
2. Standard bare hard drawn aluminum wire.
3. Safe packing for exporting.
FAQ
1.Have you ever supplied cable or wore to our Country?
Our products have been exported to many Countries, mainly, Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, etc., almost covered all the world.
2. Which standards do you comply with when you produce the cable and wire ?
We are able to produce cable and wire according to GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc.
3. What is the production capacity per week or per month ?
For the bare conductor, we can finish 3000 tons within one month. For power cables, that depends on the type and size. The total output value per month is approx. USD3,000,000.00 for insulated aluminum cables and that is approx. USD8,000,000.00 for insulated copper cables.
4. Can you provide Type Test Report?
Surely, we will give 100% support according to your instruction.
We are China Overhead AAC All Aluminum Conductor , Electrical Transmission Line Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
