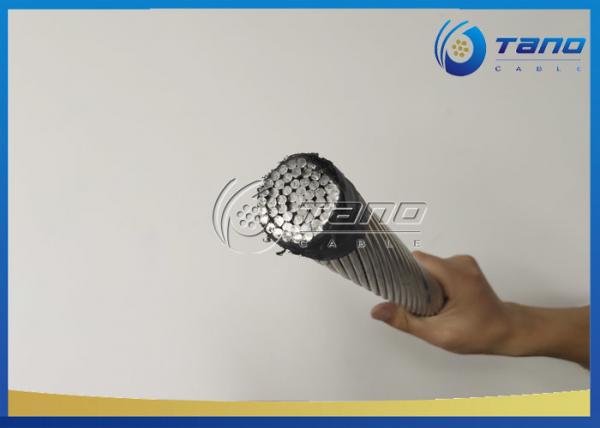

Optimal Strength AAC All Aluminum Conductor 95mm2 Without Sacrificing Ampacity
Optimal Strength AAC All Aluminum Conductor 95mm2 Without Sacrificing Ampacity image
Brand Name :
Tano Cable
Model Number :
AAC
Certification :
ISO
Place of Origin :
China
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000KM per month
Delivery Time :
7-20 working days
Packaging Details :
by coil, carton, plastic bag, all wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery
Material :
All aluminum wire
Color :
Grey
Standard :
IEC61089
Packing :
Wooden drums
Insulation :
bare
Conductor :
Hard drawn aluminum wire
Tano Cable Overhead line AAC Bare Aluminum Conductor 95mm2 IEC 61089
Applicationof AAC Wasp or Fly conductor
Used bare overhead transmission cable and as primary and secondary distribution cable acsr offers optimal strength for line design without sacrificing ampacity .
Standard
IEC 60189
Technical Specification
Code Name | Nominal Area |
No./Nominal diameter of wires |
Approximate Overal Diameter |
Approximate Weight |
Nominal Breaking Load |
Nominal DC Resistance at 20°C |
mm2 | No./mm | mm | kg/km | KN | ohm/km | |
10 | 10.0 | 7/1.35 | 4.05 | 27.4 | 2.0 | 2.8633 |
16 | 16.0 | 7/1.71 | 5.13 | 43.8 | 3.0 | 1.7896 |
25 | 25.0 | 7/2.13 | 6.39 | 68.4 | 4.5 | 1.1453 |
40 | 40.0 | 7/2.70 | 8.10 | 109.4 | 6.8 | 0.7158 |
63 | 63.0 | 7/3.39 | 10.17 | 172.3 | 10.4 | 0.4545 |
100 | 100.0 | 19/2.59 | 12.95 | 274.8 | 17.0 | 0.2877 |
125 | 125.0 | 19/2.89 | 14.45 | 343.6 | 21.3 | 0.2302 |
160 | 160.0 | 19/3.27 | 16.35 | 439.8 | 26.4 | 0.1798 |
200 | 200.0 | 19/3.66 | 18.30 | 549.7 | 32.0 | 0.1439 |
250 | 250.0 | 19/4.09 | 20.45 | 687.1 | 40.0 | 0.1151 |
315 | 315.0 | 37/3.29 | 23.03 | 867.9 | 52.0 | 0.0916 |
400 | 400.0 | 37/3.71 | 25.97 | 1102.0 | 64.0 | 0.0721 |
450 | 450.0 | 37/3.94 | 27.58 | 1239.8 | 72.0 | 0.0641 |
500 | 500.0 | 37/4.15 | 29.05 | 1377.6 | 80.0 | 0.0577 |
560 | 560.0 | 37/4.39 | 30.73 | 1542.9 | 89.6 | 0.0515 |
630 | 630.0 | 61/3.63 | 32.67 | 1738.3 | 100.8 | 0.0458 |
710 | 710.0 | 61/3.85 | 34.65 | 1959.1 | 113.6 | 0.0407 |
800 | 800.0 | 61/4.09 | 36.81 | 2207.4 | 128.0 | 0.0361 |
900 | 900.0 | 61/4.33 | 38.97 | 2483.3 | 144.0 | 0.0321 |
1000 | 1000.0 | 61/4.57 | 41.13 | 2759.2 | 160.0 | 0.0289 |
1120 | 1120.0 | 91/3.96 | 43.56 | 3093.5 | 179.2 | 0.0258 |
1250 | 1250.0 | 91/4.18 | 45.98 | 3452.6 | 200.0 | 0.0231 |
1400 | 1400.0 | 91/4.43 | 48.73 | 3866.9 | 224.0 | 0.0207 |
1500 | 1500.0 | 91/4.58 | 50.38 | 4143.1 | 240.0 | 0.0193 |
about overhead bare AAC conductor
FAQ
1.What types of products do you have?
As a manufacturer, we produce power cable, control cable, communication cable and electric wires. In addition, the size of cable and wire can be customized.
2. How long have you been in the business,
We have been a leading company in China for more than 15 years.
3. What certifications do you have?
CCC CE and so on.
4. What do you take to win the trust from customers?
Put customers first, put quality first, put reputation first
We are China Optimal Strength AAC All Aluminum Conductor 95mm2 Without Sacrificing Ampacity manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: AAC All Aluminum Conductor, AAC CABLE, aac wire
