One Core Three Core Copper Conductor Cable XLPE / PVC Insulation Ground Check
One Core Three Core Copper Conductor Cable XLPE / PVC Insulation Ground Check image
Brand Name :
YIFANG
Model Number :
MVV, MYJV
Certification :
ISO9001, ISO18001, OHSAS
Place of Origin :
CHINA
MOQ :
500meters
Price :
USD 0.1/m to USD 25/m
Supply Ability :
5000km per week
Delivery Time :
3-20work days
Packaging Details :
Cable can be supplied in any length required.
Conductor :
Copper
Insulation :
PVC/ XLPE
No. of Core :
1 core, 3 core, 3+1 core
Sheath :
PVC/ XLPE
Rated Voltage :
10KV
Armoured :
Steel wire/ Steel Tape
Copper Conductor XLPE / PVC Insulation Mining Cable Ground-Check
1. Application:
Use in stationary, horizontal, HV mine power,for power transmission in deep mines ,open pits, tunnels, in conduit or duct, suitable for direct burial in wet or dry locations.
2. Construction:
| Conductors | bare, soft drawn, annealed copper per ASTM B-3, compact stranded per ASTM B-496. |
| Strand shield | extruded semi-conducting compound. |
| Insulation | flame resistant (90℃) cross-linked polyethylene (XLPE) ICEA S-75-381/NEMA WC-58. |
| Insulation shield | extruded semi-conducting compound. bare copper tape helically applied. |
| Color code | Black, White, Red nylon tracer tape applied between the insulation semi-conductive layer and the copper tape shield. |
| Ground wires | Uninsulated, soft drawn, annealed, compact stranded, bare copper per ASTM B-496, B-8 and B-33. |
| Ground check | soft drawn, soft drawn, annealed, compact stranded, bare copper with yellow EPR insulation. |
| Cabling | Three shielded conductors are assembled in a helical configuration with two uninsulated ground wires, one yellow insulated ground check and non-wicking fillers as needed .A woven nylon polyester reinforcement binder is served over the entire assembly for increased stability. |
| Reinforcement | A woven nylon polyester reinforcement binder is applied over the completed assembly for added core stability. |
| Jacket |
Black flame retardant (90℃) PVC per ICEA S-75-381/NEMA WC-58. |
3. Characteristics:
▪ Excellent resistance to oil , water, solvents, corrosives, sunlight, aging, cuts,tears and abrasions
• Resistant to most oils and chemicals, good cut, tear and abrasion resistance.
▪ MP-GC is suitable for all horizontal mine power distribution, messenger assisted high line transmission and direct burial in wet or dry locations requiring MSHA flame and/or UL approval listings.
▪ Jacket will have permanent marking via indent printed legend.
4. Standard:
Meets or exceeds ICEA requirements as applicable for ICEA S-75-381/NEMA WC 58, ASTM B-3.MSHA listed; passes MSHA flame test.
About us
Zhengzhou Yifang Cable Co., Ltd is a large joint-stock, hi-tech enterprise established in 2001. We are specialized in wires & cables, including designment, production and sales. Located in Zhengzhou, China, our factory's position is extremely advantageous.
There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.
Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire),flame retardant mining cable, etc
We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
We are China One Core Three Core Copper Conductor Cable XLPE / PVC Insulation Ground Check manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Copper Conductor Cable, Mining Cable, underground mining cableSimilar Or Related
-
SHD-GC 8kV Copper Conductor Cable EPR Insulated CPE Sheathed 4AWG For Underground Mining
-
Yifang Mining Cable 8KV Tinned Copper EPR Insulation CPE Jacket 3x4AWG 3x2AWG
-
8kV Underground Mining Cable EPR Insulated CPE Sheathed SHD-GC
-

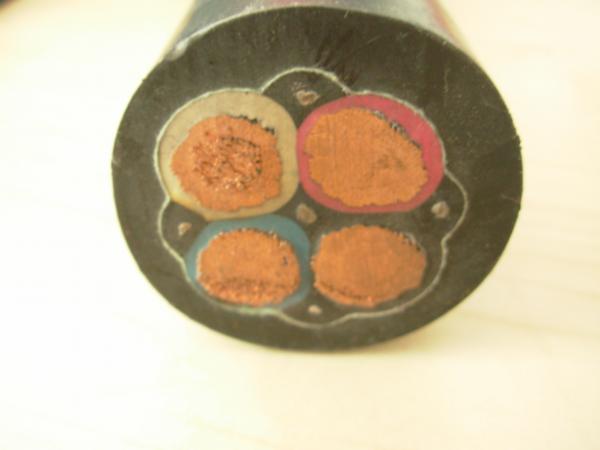

TYPE SHD-CGC 5 KV Mining Cable Flexible Tinned Copper Wire 2/0 AWG To 350MCM
