OM2 GYXS Fiber Optic Duct 12 Strand Single Mode Fiber

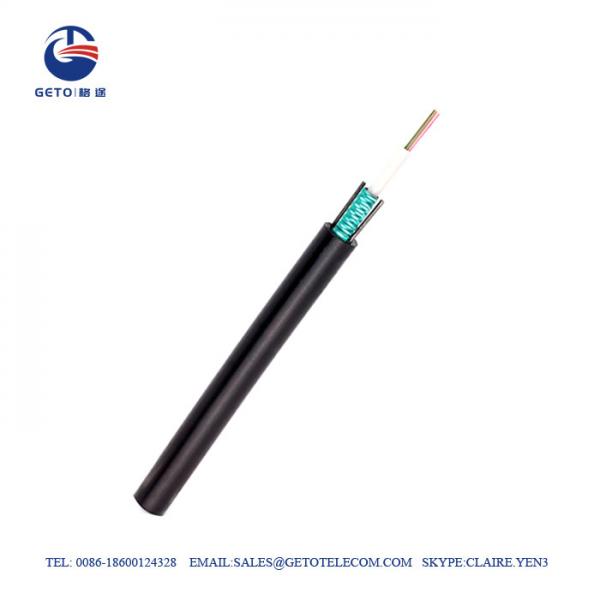

OM2 GYXS Fiber Optic Duct 12 Strand Single Mode Fiber image
Brand Name :
Geto Telecom
Model Number :
GYXS
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
1000M
Price :
0.3
Payment Terms :
L/C, T/T
Supply Ability :
3000 M/Day
Delivery Time :
5-8 Days
Packaging Details :
Drum
Product Name :
Outdoor Single Multimode Light-Armored Duct Fiber
Fiber Type :
ITU G652D ,G657A,OM1,OM2,OM3,OM4
Fiber Core :
2-12 Cores
Application :
used for duct or aerial applications
Armored :
Yes
Operating Temperature :
-40℃ to + 70℃
Out sheath :
Black Polyethylene (PE)
Packing :
1km/2km/4km/roll
Color :
Black, Usually Black Color, blue or others, Aqua, yellow
Jacket material :
LSZH, PVC, PE, TPU, PVC/LSZH
Sheath :
MDPE/HDPE, PLENUM, LSZH, PVC, ect
Strength member :
steel wire, Metallic wire, FRP
GYXS Outdoor Single Multimode Light-Armored Duct Fiber
Description:
GYXS Outdoor Optical fiber cable positioned between CO and first DP in FTTX network. Used as mainline cable which environ- ment is in Buried ,Aerial, under earth Pipes, Poles etc.
| product name | GYXS 16 core |
| product description |
*central tube structure *steel wire armoring *steel-polyethylene adhesive jacket |
| standards | YD/T 769-2010 outdoor central tube optical cable for telecommunications |
| characteristic |
*good mechanical and temperature performance *high strength loose tube which is hydroysis resistant *special tube filling compound ensure a critical protection of fiber *crush resistance and flexibility *enhancing moisture-proof *small diameter, light weight, friendly installation *long delivery length |
| fiber | structure | nominal diameter (mm) | nominal weight(kg/km) | long-term/short-term permitted tensile (N) | long-term/short-term permitted crush(N) | static /dynamic bend radius(mm) |
| 2-12 | central tube | 9.4 | 128 | 600/1500 | 300/1000 | 10D/20D |
| 20-24 | central tube | 10 | 149 | 600/1500 | 300/1000 | 10D/20 |
