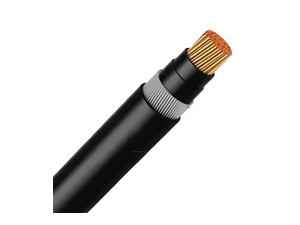

NYRY Cable( 0.6/1 kV CU/PVC/SWA/PVC Power Cable)

0.6/1 kV NYRY Cable (CU/PVC/SWA/PVC)

Also Known As:

NYRY Low voltage cable, NYRY Cable, VV32/VLV32 Cable, 0.6/1 kV CU/PVC/SWA/PVC Power Cable

Applications

NYRY cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.

Applicable Standards:

Ge’s 0.6/1 kV NYRY Cable (CU/PVC/SWA/PVC) meets or exceeds the following Standards

IEC 60228 Conductors
IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) – Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

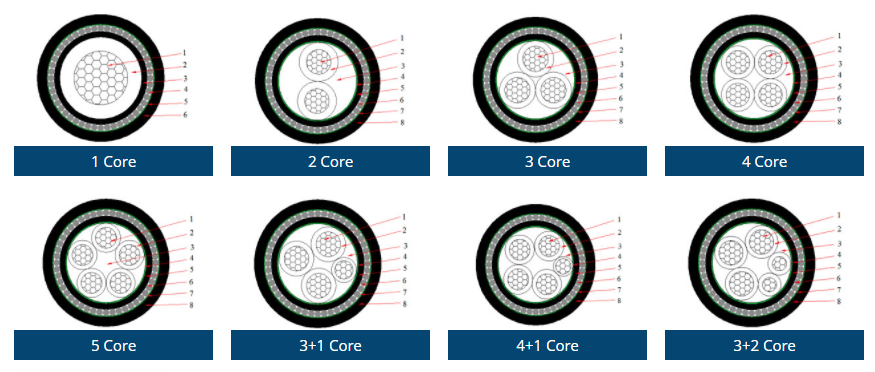

Construction

VV32/VLV32-0.6/1-kV-single-core

1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Polyvinyl chloride PVC
3. Inner sheath: Polyvinyl chloride PVC
4. Armour: Non-magnetic steel wire
5. Binder tape: Non-hygroscopic material
6. Outer sheath: Polyvinyl chloride PVC

VV32/VLV32-0.6/1-kV-multi core

1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Polyvinyl chloride PVC
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Inner sheath: Polyvinyl chloride PVC
6. Armour: Low carbon steel wire
7. Binder tape: Non-hygroscopic material
8. Outer sheath: Polyvinyl chloride PVC

0.6/1 kV NYRY Cable (CU/PVC/SWA/PVC) Specification

Get all the answers to the most frequently asked questions (FAQs) regarding NYRY Cable meaning,NYRY Cable pdf,NYRY Cable full form,NYRY Cable current rating,NYRY Cable type,NYRY Cable manufacturer and much, much more.

0.6/1 kV NYRY Cable (CU/PVC/SWA/PVC) manufactured by GE meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc

1 core 0.6/1kV-1 Core Copper Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Non-magnetic steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
1X10	1	0.8	1.8	13.8	378	1.83	39	53
1X16	1	0.8	1.8	14.9	472	1.15	50	68
1X25	1.2	0.8	1.8	16.6	603	0.727	66	88
1X35	1.2	1.25	1.8	18.1	837	0.524	81	105
1X50	1.4	1.25	1.8	19.8	1024	0.387	98	123
1X70	1.4	1.25	1.8	21.4	1275	0.268	126	151
1X95	1.6	1.6	1.8	24.1	1730	0.193	154	182
1X120	1.6	1.6	1.8	25.5	2016	0.153	182	207
1X150	1.8	1.6	1.8	27.5	2403	0.124	210	235
1X185	2	1.6	1.8	29.6	2840	0.0991	245	266
1X240	2.2	1.6	1.9	32.4	3512	0.0754	290	312
1x300	2.4	2	2	36	4480	0.0601	340	354
1x400	2.6	2	2.2	40	5593	0.047	399	403
1x500	2.8	2	2.3	44.2	6888	0.0366	469	466
1X630	2.8	2.5	2.4	48.9	8756	0.0283	553	532
1X800	2.8	2.5	2.6	53.2	10670	0.0221	644	613

2 core 0.6/1kV-1 Core Copper Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
2X2.5	0.8	0.8	1.8	15.2	388	7.41	18	25
2X4	1	0.8	1.8	17.8	601	4.61	24	33
2X6	1	1.25	1.8	18.8	680	3.08	32	43
2X10	1	1.25	1.8	21.3	871	1.83	41	55
2X16	1	1.25	1.8	23.5	1095	1.15	53	70
2X25	1.2	1.6	1.8	27.5	1573	0.727	70	91
2X35	1.2	1.6	1.8	28.8	1840	0.524	84	109
2X50	1.4	1.6	1.9	32.5	2287	0.387	105	130
2X70	1.4	2	2	36.7	3136	0.268	133	158
2X95	1.6	2	2.1	41.6	3995	0.193	165	193
2X120	1.6	2	2.3	44.6	4676	0.153	193	221
2X150	1.8	2.5	2.4	49.8	6025	0.124	221	245
2X185	2	2.5	2.6	54.4	7125	0.0991	256	277

3 core 0.6/1kV-1 Core Copper Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
3X2.5	0.8	0.8	1.8	15.7	433	7.41	15	22
3X4	1	1.25	1.8	18.4	668	4.61	20	28
3X6	1	1.25	1.8	19.6	778	3.08	27	36
3X10	1	1.25	1.8	22.2	1021	1.83	35	46
3X16	1	1.6	1.8	25.3	1443	1.15	46	60
3X25	1.2	1.6	1.8	28.9	1886	0.727	61	77
3X35	1.2	1.6	1.8	30.4	2254	0.524	74	91
3X50	1.4	2	1.9	35.2	3069	0.387	91	112
3X70	1.4	2	2.1	39.3	3929	0.268	116	137
3X95	1.6	2	2.2	44.1	5007	0.193	144	165
3X120	1.6	2	2.3	48.4	6365	0.153	168	186
3X150	1.8	2.5	2.5	53.2	7702	0.124	189	210
3X185	2	2.5	2.7	57.8	9096	0.0991	221	238
3X240	2.2	2.5	2.9	64.4	11376	0.0754	263	277
3X300	2.4	2.5	3.1	70.2	13638	0.0601	305	312

4 core 0.6/1kV-1 Core Copper Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
4X2.5	0.8	1.25	1.8	17.5	621	7.41	15	22
4X4	1	1.25	1.8	19.5	766	4.61	20	28
4X6	1	1.25	1.8	20.8	900	3.08	27	36
4X10	1	1.6	1.8	24.5	1335	1.83	35	46
4X16	1	1.6	1.8	27.1	1715	1.15	46	60
4X25	1.2	1.6	1.9	31.3	2260	0.727	61	77
4X35	1.2	1.6	2	33	2726	0.524	74	91
4X50	1.4	1.6	2.1	37.8	3525	0.387	91	112
4X70	1.4	2	2.3	42.8	4815	0.268	116	137
4X95	1.6	2.5	2.5	49.3	6620	0.193	144	165
4X120	1.6	2.5	2.6	53.3	7936	0.153	168	186
4X150	1.8	2.5	2.7	58.2	9553	0.124	189	210
4X185	2	2.5	2.9	63.8	11409	0.0991	221	238
4X240	2.2	2.5	3.1	70.7	14226	0.0754	263	277
4X300	2.4	3.15	3.4	78.6	18107	0.0601	305	312

5 core 0.6/1kV-1 Core Copper Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
5X2.5	0.8	1.25	1.8	18.4	686	7.41	15	21.7
5X4	1	1.25	1.8	20.7	883	4.61	20	28
5X6	1	1.25	1.8	22.2	1044	3.08	27	36.4
5X10	1	1.6	1.8	26.2	1558	1.83	35	46.2
5X16	1	1.6	1.8	29.2	1972	1.15	46	59.5
5X25	1.2	1.6	1.9	33.9	2661	0.727	61	77
5X35	1.2	2	2.1	36.7	3503	0.524	74	91
5X50	1.4	2	2.2	42.1	4483	0.387	91	112
5X70	1.4	2.5	2.4	47.7	6198	0.268	116	137
5X95	1.6	2.5	2.6	54.2	7983	0.193	144	165
5X120	1.6	2.5	2.7	58.2	9516	0.153	168	186
5X150	1.8	2.5	2.9	64.1	11524	0.124	189	210
5X185	2	2.5	3.1	69.9	13750	0.0991	221	238
5X240	2.2	3.15	3.4	79.1	18127	0.0754	263	277
5X300	2.4	3.15	3.6	86.7	21953	0.0601	305	312

3+1 core 0.6/1kV-1 Core Copper Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
3X4+1X2.5	1.0/0.8	1.25	1.8	19	923	4.61/7.41	20	28
3X6+1X4	1.0/1.0	1.25	1.8	20.5	868	3.08/4.61	27	36
3X10+1X6	1.0/1.0	1.6	1.8	23.8	1245	1.83/3.08	35	46
3X16+1X10	1.0/1.0	1.6	1.8	26.5	1595	1.15/1.83	46	60
3X25+1X16	1.2/1.0	1.6	1.8	30.3	2124	0.727/1.15	61	77
3X35+1X16	1.2/1.0	1.6	1.9	31.6	2475	0.524/1.15	74	91
3X50+1X25	1.4/1.2	2	2.1	36.9	3435	0.387/0.727	91	112
3X70+1X35	1.4/1.4	2	2.2	40.7	4360	0.268/0.524	116	137
3X95+1X50	1.6/1.4	2	2.4	45.7	5578	0.193/0.387	144	165
3X120+1X70	1.6/1.4	2.5	2.5	51.1	7221	0.153/0.268	168	186
3X150+1X70	1.8/1.4	2.5	2.6	54.8	8345	0.124/0.268	189	210
3X185+1X95	2.0/1.6	2.5	2.8	60	10160	0.0991/0.193	221	238
3X240+1X120	2.2/1.6	2.5	3	66.5	12585	0.0754/0.153	263	277
3X300+1X150	2.4/1.8	3.15	3.2	77.7	15187	0.0601/0.124	305	312

4+1 core 0.6/1kV-1 Core Copper Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
4X4+1X2.5	1.0/0.8	1.25	1.8	20.3	823	4.61/7.41	20	28
4X6+1X4	1.0/1.0	1.25	1.8	21.9	990	3.08/4.61	27	36
4X10+1X6	1.0/1.0	1.6	1.8	25.5	1435	1.83/3.08	35	46
4X16+1X10	1.0/1.0	1.6	1.8	28.6	1868	1.15/1.83	46	60
4X25+1X16	1.2/1.0	1.6	1.9	33	2516	0.727/1.15	61	77
4X35+1X16	1.2/1.0	2	2	35.4	3207	0.524/1.15	74	91
4X50+1X25	1.4/1.2	2	2.2	40.7	4159	0.387/0.727	91	112
4X70+1X35	1.4/1.4	2	2.3	44.7	5282	0.268/0.524	116	137
4X95+1X50	1.6/1.4	2.5	2.6	52.1	7403	0.193/0.387	144	165
4X120+1X70	1.6/1.4	2.5	2.7	56.2	8817	0.153/0.268	168	186
4X150+1X70	1.8/1.4	2.5	2.8	60.6	10218	0.124/0.268	189	210
4X185+1X95	2.0/1.6	2.5	3	66.8	12552	0.0991/0.193	221	238
4X240+1X120	2.2/1.6	2.5	3.2	73.9	15597	0.0754/0.153	263	277
4X300+1X150	2.4/1.8	3.15	3.5	82.5	19909	0.0601/0.124	305	312

3+2 core 0.6/1kV-1 Core Copper Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
3X4+2X2.5	1.0/0.8	1.25	1.8	19.8	787	4.61/7.41	20	28
3X6+2X4	1.0/1.0	1.25	1.8	21.6	957	3.08/4.61	27	36
3X10+2X6	1.0/1.0	1.6	1.8	24.8	1366	1.83/3.08	35	46
3X16+2X10	1.0/1.0	1.6	1.8	28	1783	1.15/1.83	46	60
3X25+2X16	1.2/1.0	1.6	1.8	31.9	2370	0.727/1.15	61	77
3X35+2X16	1.2/1.0	1.6	1.9	33.1	2698	0.524/1.15	74	91
3X50+2X25	1.4/1.2	2	2.1	39.5	3871	0.387/0.727	91	112
3X70+2X35	1.4/1.4	2	2.3	42.8	4831	0.268/0.524	116	137
3X95+2X50	1.6/1.4	2.5	2.5	49.5	6695	0.193/0.387	144	165
3X120+2X70	1.6/1.4	2.5	2.6	54.2	8159	0.153/0.268	168	186
3X150+2X70	1.8/1.4	2.5	2.7	57.5	9230	0.124/0.268	189	210
3X185+2X95	2.0/1.6	2.5	2.9	63.8	11415	0.0991/0.193	221	238
3X240+2X120	2.2/1.6	2.5	3.1	70.1	14051	0.0754/0.153	263	277
3X300+2X150	2.4/1.8	3.15	3.4	78	17795	0.0601/0.124	305	312
