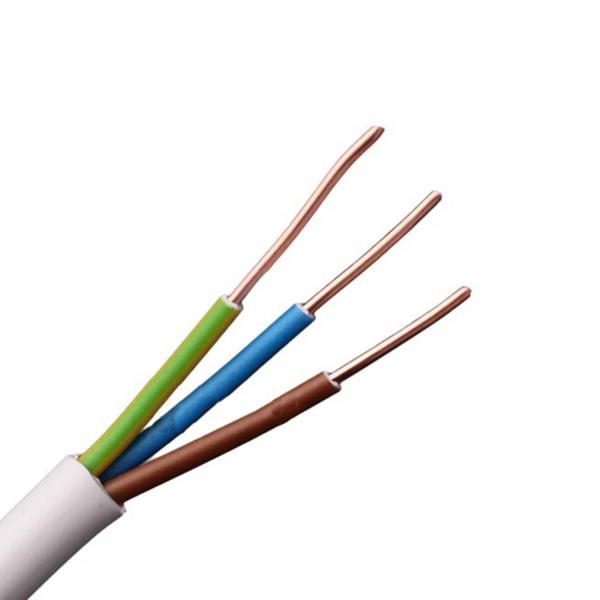

NYM NYM-J NYM-O Flexible Electrical Cable 300/500V Solid Copper PVC Insulation Sheath

NYM NYM-J NYM-O Flexible Electrical Cable 300/500V Solid Copper PVC Insulation Sheath image

Get a Quote Email to us

Brand Name :
JHY CABLE

Model Number :
BVV cable

Certification :
CCC/ CE/ CB/ ISO

Place of Origin :
SHENZHEN CHINA

MOQ :
1000m

Price :
Negotiable

Payment Terms :
L/C, T/T, Western Union, MoneyGram

Supply Ability :
1000 kilometer/ day

Delivery Time :
7~10 working days

Packaging Details :
100 meters per roll or according to the customer’s request.

Conductor :
Solid or Stranded bare copper

No of Core :
1 to 4 cores

Nominal cross seciton :
0.75mm2 to 630mm2

Insulation :
PVC

Color :
Red, Green, Yellow, Blue, Black or others

Rated Voltage :
300/500V

Operating Temperature :
-15℃-70℃

Standard :
IEC 60227, GB 5023

Application :
House wiring cable. Installation cable

Structure :
Cu/PVC/PVC

NYM,NYM-J,NYM-O,300/500V Solid Copper PVC Insulation PVC sheath Electrical Power Cable

NYM,NYM-J,NYM-O (300/500V PVC Insulation PVC sheath Power Cable) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Kabel NYM Application:
House wiring cable. Installation cable. wiring cable for installation in dry and wet rooms under, in and above plaster, also for installation outdoors but with UV protection.

NYM Kabel Construction:

Conductors:	Conductor material Cu, bare.class1 or class2 acc to VDE0295(IEC60228/HD 383) Solid or stranded Green and Yellow available please see table below.
Core colours:	1 core: Green / Yellow 3 core: Green/Yellow, Blue, Brown 4 core: Green/Yellow, Brown, Black and Grey 5 Core: Green/Yellow, Blue, Brown, Black and Grey 7 core: Numbered
Insulation:	PVC
Sheath/Jacket:	PVC
Colour:	-O: without yellow/green core ; -J: with yellow/green core
Voltage:	Nominal voltage U0 300 V, Nominal voltage U 500 V
Max. conductor temperature:	70 °C
Operating temperature:	Flexible: -5°C to +70 °C, Fixed: – 40°C to +70 °C
Minimum bending radius:	1 core: 15 x diameter 3 core and above: 4 x overall diameter
Max short circuit temp:	160 °C

Nym-j cable and Nym-o Specification Sheet:

Construction No. x mm2	Outer Diameter cca. mm	Cu Weight kg / km	Cable weight cca. kg / km
1 x 1.5	5,1	14,4	40
1 x 2.5	5,7	24	65
1 x 4	6,3	38	80
1 x 6	6,8	58	105
1 x 10	8	96	155
1 x 16	9,1	154	230
2 x 1.5	8,8	29	115
2 x 2.5	10	48	145
3 x 1.5	8,5	43	120
3 x 2.5	9,9	72	165
3 x 4	10,8	115	265
3 x 6	12,2	173	315
4 x 1.5	9,3	58	145
4 x 2.5	10,7	96	205
4 x 4	12,8	154	305
4 x 6	13,8	230	385
4 x 10	16,8	384	605
4 x 16	19,2	614	1025
4 x 25	24	960	1580
4 x 35	26	1344	2075
5 x 1.5	10,2	72	170
5 x 2.5	11,7	120	245
5 x 4	13,9	192	370
5 x 6	15,1	288	460
5 x 10	18,3	480	740
5 x 16	23,6	68	1275
5 x 25	28,5	1200	1945
