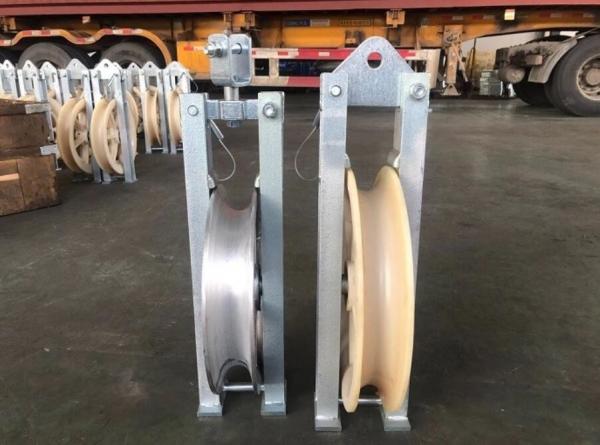

Nylon Single Sheave ACSR Conductor Stringing Blocks
Nylon Single Sheave ACSR Conductor Stringing Blocks image
Brand Name :
Suntech
Model Number :
308mm,508mm,660mm
Certification :
ISO,CE
Place of Origin :
Ningbo,China
MOQ :
1pcs
Price :
Get the newest price
Payment Terms :
L/C , T/T, Western Union
Supply Ability :
3000 pcs per month
Delivery Time :
7-10 days after Payment
Packaging Details :
Exported Case or Containers
Type :
Conductor Stringing Blocks
Material :
MC Nylon,Steel Support
Load Capacity :
20KN,40KN,60KN
Application :
Construction Site
Package :
Wooden Case
Usage :
Transmission Line
Large Diameter Nylon Single Sheave Cable Stringing Pulley Wheel Acsr Conductor Stringing Block
Single sheave Nylon Stringing Block
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10191 | SHDN-120×30 | 25-70 | 5 | 1.5 | Nylon |
| 10192 | SHDN-160×40 | 70-95 | 10 | 2.4 | |
| 10193 | SHDN-200×40 | 95-120 | 15 | 2.6 | |
| 10194 | SHDN-200×60 | 120-150 | 15 | 3.1 | |
| 10195 | SHDN-250×40 | 120-150 | 20 | 3.7 | |
| 10196 | SHDN-250×60 | 150-180 | 20 | 3.9 | |
| 10197 | SHDN-270×60 | 180-240 | 20 | 4.4 | |
| 10198 | SHDN-320×60 | 240-300 | 20 | 7.5 | |
| 10199 | SHDN-400×80 | 300-400 | 20 | 8 | |
| 10104 | SHDN508 | 300-400 | 20 | 16 | Nylon, optional can be lined with neoprene |
| 10124 | SHDN660 | 400-500 | 20 | 24 | |
| 10131 | SHDN750 | 500-600 | 30 | 32 | |
| 10141 | SHDN822 | 600-700 | 30 | 38 | |
| 10151 | SHDN916 | 700-800 | 50 | 51 | |
| 10165 | SHDN1040 | 800-900 | 50 | 60 |
Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures. Compression sleeves,
swivel connectors, and pulling rope connectors can pass through the groove.
We are China Nylon Single Sheave ACSR Conductor Stringing Blocks manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

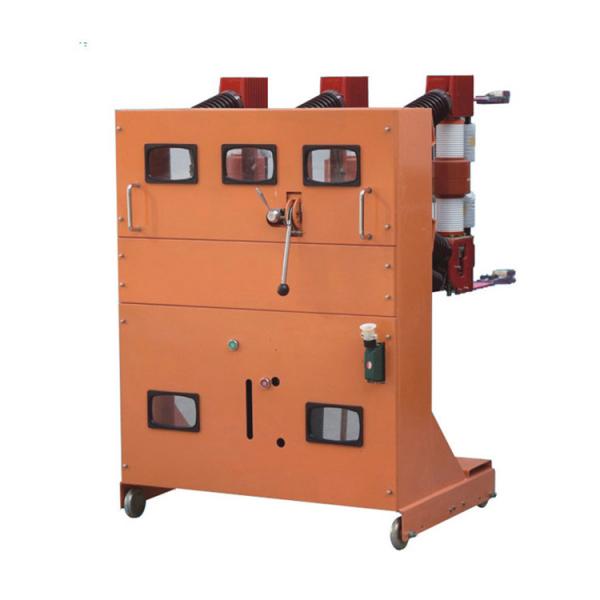

Tags: conductor stringing blocks, GB1984-89 3 Phase Circuit Breaker, GB1984-89 High Voltage Circuit Breaker, Handcart Type 3 Phase Circuit BreakerSimilar Or Related
