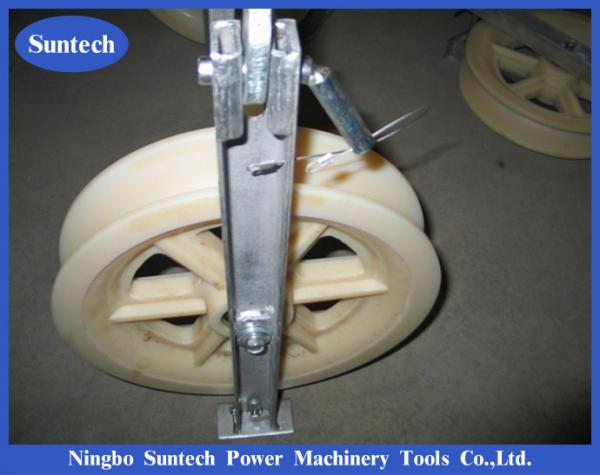

Nylon Sheave stringing Cable Pulley Transmission Conductor Stringing Blocks
Nylon Sheave stringing Cable Pulley Transmission Conductor Stringing Blocks image
Brand Name :
Suntech
Model Number :
SHDN508 , SHD508
Certification :
ISO
Place of Origin :
NINGBO
MOQ :
10 SETS
Price :
Get Latest Price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 sets per Month
Delivery Time :
7 DAYS AFTER DEPOSIT
Packaging Details :
Exported Wooden Boxes
Item :
Wire Rope Pulley Block
Material :
MC Nylon Material
Application :
Overhead Line
Sheave :
1,3,5
Size :
508*75mm,508x100mm
Warranty :
One Year
Nylon Sheave Stringing Cable Pulley Transmission Conductor Stringing Blocks
508 mm stringing blocks are normally used for stringing medium size conductor (17-25 mm) in overhead transmission line construction.
We have designed series of these stringing blocks for single conductor, 2 bundled conductor and 4 bundled conductors stringing.
1.Maximum suitable conductor ACSR400.Configuration:
2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ508×Φ408×75 (mm)
3.Sheave dimension Φ508×Φ408×100 (mm) can be customized.
Technical Data
| Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) |
Features |
| 10101 | SHD508 | 1 | 20 | 18 | Rubber lined aluminium sheave |
| 10102 | SHS508 | 3 | 40 | 61 |
Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave |
| 10103 | SHW508 | 5 | 60 | 93 | |
| 10104/10104A | SHDN508 | 1 | 20 | 16 | MC nylon sheave |
| 10105 | SHSLN508 | 3 | 40 | 47 |
Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave |
| 10106 | SHWLN508 | 5 | 60 | 79 | |
| 10107/10107A | SHSQN508 | 3 | 40 | 38 | MC nylon sheave |
| 10108/10108A | SHWQN508 | 5 | 60 | 70 |
We are China Nylon Sheave stringing Cable Pulley Transmission Conductor Stringing Blocks manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 40KN Stringing Blocks, 508mm Cable Stringing Blocks, 508mm Stringing Blocks, conductor stringing blocksSimilar Or Related
