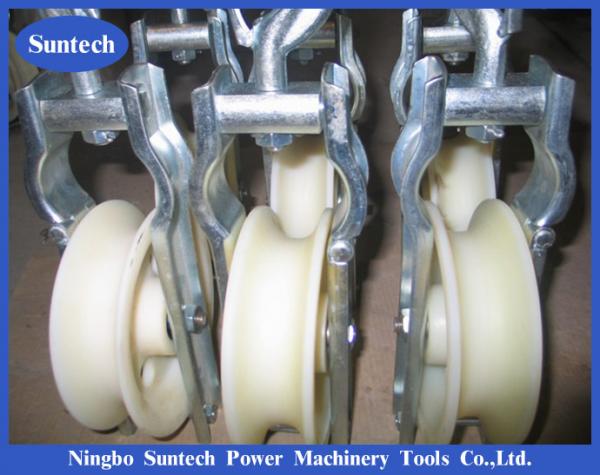

Nylon Sheave 120x30mm 5KN Single Wheel Stringing Blocks For Conductor

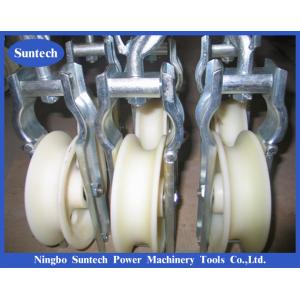

Nylon Sheave 120x30mm 5KN Single Wheel Stringing Blocks For Conductor image
Nylon Sheave 120x30mm 5KN Single Wheel Stringing Blocks For Conductor
Quick details:
1. Transmission Line Stringing Accessories
2. Conductor/Cable/OPGW Stringing Blocks Small Pulleys
3. Diameter: 120mm Wheel Width: 30mm
4. Single Wheels Nylon Wheels
5. Galvanized Steel Frame
6. With Rubber Covered or Without Rubber Covered
7. Rated Load: 5kN
8. Conductor Size: 25~70mm2
9. Suntech Brand
Specification:
Single Wheel-Wheel material aluminum or Nylon, and it could be covered by rubber.
| Model | Wheel size Diameter x Width (mm) | Conductor size (mm2) | Rated load (kN) | Weight (kg) | Wheel material |
| SHD-120X30 | 120×30 | 25~70 | 5 | 2.1 | Aluminum |
| SHD-160X40 | 160X40 | 95~120 | 10 | 3.1 | |
| SHD-200X40 | 200X40 | 150~240 | 15 | 3.7 | |
| SHD-200X60 | 200X60 | 150~240 | 15 | 4.1 | |
| SHD-250X40 | 250X40 | 150~240 | 20 | 5.1 | |
| SHD-250X60 | 250X60 | 300~400 | 20 | 5.4 | |
| SHD-270X60 | 270X60 | 300~400 | 20 | 6.7 | |
| SHD-320X60 | 320X60 | 300~400 | 20 | 10.4 | |
| SHD-400X80 | 400X80 | 400~500 | 20 | 11.9 | |
| SHDN-120X30 | 120×30 | 25~70 | 5 | 1.5 | Nylon |
| SHDN-160X40 | 160X40 | 95~120 | 10 | 2.3 | |
| SHDN-200X40 | 200X40 | 150~240 | 15 | 2.5 | |
| SHDN-200X60 | 200X60 | 150~240 | 15 | 3.0 | |
| SHDN-250X40 | 250X40 | 150~240 | 20 | 3.6 | |
| SHDN-250X60 | 250X60 | 300~400 | 20 | 3.8 | |
| SHDN-270X60 | 270X60 | 300~400 | 20 | 4.3 | |
| SHDN-320X60 | 320X60 | 300~400 | 20 | 7.5 | |
| SHDN-400X80 | 400X80 | 400~500 | 20 | 8 | |
| SHD-508X75 | 508X75 | ≤400 | 20 | 22.3 | Aluminum |
| SHD-660X100 | 660X100 | ≤500 | 20 | 30 | |
| SHDN-508X75 | 508X75 | ≤400 | 20 | 18 | Nylon |
| SHDN-660X100 | 660X100 | ≤500 | 20 | 20 | |
| SHDN-830X110 | 830X110 | ≤630 | 30 | 25 | |
| SHDN-916X110 | 916X110 | ≤800 | 50 | 45 | |
| SHDN-1040X125 | 1040X125 | ≤1000 | 55 | 105 |
Three Wheels-The pulleys are suitable for string two or three bundled conductor lines.
| Model | Wheel size Diameter x Width (mm) | Conductor size (mm2) | Rated load (kN) | Weight (kg) | Wheel material |
| SHS-508X75 | 3X508X75 | ≤400 | 40 | 85.5 |
Middle steel Two Nylon |
| SHS-660X100 | 3X660X100 | ≤500 | 20 | 106 | |
| SHSN-508X75 | 3X508X75 | ≤400 | 40 | 60 | Nylon |
| SHSN-660X100 | 3X660X100 | ≤500 | 40 | 85 | |
| SHSN-830X110 | 3X830X110 | ≤630 | 60 | 100 | |
| SHSN-916X110 | 3X916X110 | ≤800 | 80 | 140 | |
| SHSN-1040X125 | 3X1040X125 | ≤1000 | 110 | 210 |
Five Wheels-The pulleys are suitable for string four bundled conductor lines.
| Model | Wheel size Diameter x Width (mm) | Conductor size (mm2) | Rated load (kN) | Weight (kg) | Wheel material |
| SHW-508X75 | 3X508X75 | ≤400 | 40 | 85.5 |
Middle steel Two Nylon |
| SHW-660X100 | 3X660X100 | ≤500 | 40 | 106 | |
| SHWN-508X75 | 5X508X75 | ≤400 | 40 | 60 | Nylon |
| SHWN-660X100 | 5X660X100 | ≤500 | 40 | 85 | |
| SHWN-830X110 | 5X830X110 | ≤630 | 60 | 100 | |
| SHWN-916X110 | 5X916X110 | ≤800 | 80 | 140 | |
| SHWN-1040X125 | 5X1040X125 | ≤1000 | 110 | 210 |
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
We are China Nylon Sheave 120x30mm 5KN Single Wheel Stringing Blocks For Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
