Nylon Conductor Stringing Blocks 660mm Diameter

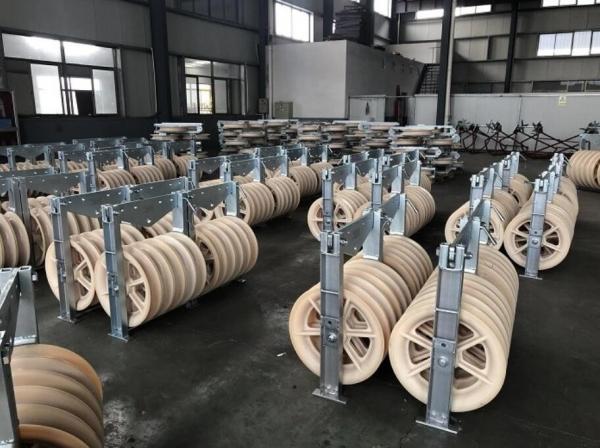

Nylon Conductor Stringing Blocks 660mm Diameter image
Brand Name :
Suntech
Model Number :
Stringing Block 660mm
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C , T/T, Western Union
Supply Ability :
5000 pcs per month
Delivery Time :
10-15 days after Payment
Packaging Details :
Exported Box and carton
Name :
Conductor Stringing Block
Diameter of Wheels :
660
Number :
1,3,5,7
Material :
MC Nylon Sheave and Steel Support
Application :
Power Transmission
Usage :
Construction Works
Conductor Pulley Nylon Stringing Pulley Block 660mm Diameter
Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The big size 508mm, 660mm aluminum alloy sheave can be lined with neoprene. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.
Single sheave Nylon Stringing Block
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10191 | SHDN-120×30 | 25-70 | 5 | 1.5 | Nylon |
| 10192 | SHDN-160×40 | 70-95 | 10 | 2.4 | |
| 10193 | SHDN-200×40 | 95-120 | 15 | 2.6 | |
| 10194 | SHDN-200×60 | 120-150 | 15 | 3.1 | |
| 10195 | SHDN-250×40 | 120-150 | 20 | 3.7 | |
| 10196 | SHDN-250×60 | 150-180 | 20 | 3.9 | |
| 10197 | SHDN-270×60 | 180-240 | 20 | 4.4 | |
| 10198 | SHDN-320×60 | 240-300 | 20 | 7.5 | |
| 10199 | SHDN-400×80 | 300-400 | 20 | 8 | |
| 10104 | SHDN508 | 300-400 | 20 | 16 | Nylon, optional can be lined with neoprene |
| 10124 | SHDN660 | 400-500 | 20 | 24 | |
| 10131 | SHDN750 | 500-600 | 30 | 32 | |
| 10141 | SHDN822 | 600-700 | 30 | 38 | |
| 10151 | SHDN916 | 700-800 | 50 | 51 | |
| 10165 | SHDN1040 | 800-900 | 50 | 60 |
Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures. Compression sleeves,
swivel connectors, and pulling rope connectors can pass through the groove
Overhead Transmission Line Large Diameter Stringing Blocks
| Item No. | Model | No. of Sheaves | Rated Load (KN) |
Diameter of Groove / Conductor Size |
Weight (kg) | Material | Outer Dia. / width Of Sheave |
| 10101 | SHD-508×75 | 1 | 20 | Φ408mm / ≤ACSR400 mm² | 22.5 | Aluminum |
Φ508mm / 75mm
|
| 10102 | SHS-508×75 | 3 | 40 | 86 | Central sheave steel | ||
| 10103 | SHW-508×75 | 5 | 60 | 108 | |||
| 10104 | SHDN-508×75 | 1 | 20 | 18.5 | Nylon | ||
| 10105 | SHSLN-508×75 | 3 | 40 | 51.5 | Central sheave Nylon | ||
| 10106 | SHWLN-508×75 | 5 | 60 | 91.5 | |||
| 10107 | SHSQN-508×75 | 3 | 40 | 60 | Nylon | ||
| 10108 | SHWQN-508×75 | 5 | 60 | 75 | |||
| 10121 | SHD-660×100 | 1 | 20 | Φ560mm / ACSR400 – 500 mm² | 30 | Aluminum |
Φ830mm / 110mm
|
| 10122 | SHS-660×100 | 3 | 40 | 106 | Central sheave steel | ||
| 10123 | SHW-660×100 | 5 | 60 | 136 | |||
| 10124 | SHDN-660×100 | 1 | 20 | 20 | Nylon | ||
| 10125 | SHSN-660×100 | 3 | 40 | 92 | Central sheave Nylon | ||
| 10126 | SHWN-660×100 | 5 | 60 | 120 | |||
| 10127 | SHSQN-660×100 | 3 | 40 | 85 | Nylon | ||
| 10128 | SHWQN-660×100 | 5 | 60 | 100 | |||
| 10141 | SHDN-822×110 | 1 | 30 | Φ710mm / ACSR500 – 630 mm² | 25 | Nylon |
Φ916mm / 110mm
|
| 10142 | SHSQN-822×110 | 3 | 60 | 130 | Central sheave Nylon | ||
| 10143 | SHWQN-822×110 | 5 | 90 | 180 | |||
| 10144 | SHSQN-822×110 | 3 | 60 | 100 | Nylon | ||
| 10145 | SHWQN-822×110 | 5 | 90 | 130 | |||
| 10151 | SHDN-916×110 | 1 | 50 | Φ800mm / ACSR720 – 800 mm² | 45 | Nylon | |
| 10152 | SHSQN-916×110 | 3 | 80 | 140 | |||
| 10153 | SHWQN-916×110 | 5 | 150 | 235 |
We are China Nylon Conductor Stringing Blocks 660mm Diameter manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
