None Jacket Overhead Service Drop Cable , Twist Aerial Aluminum Cable 600V

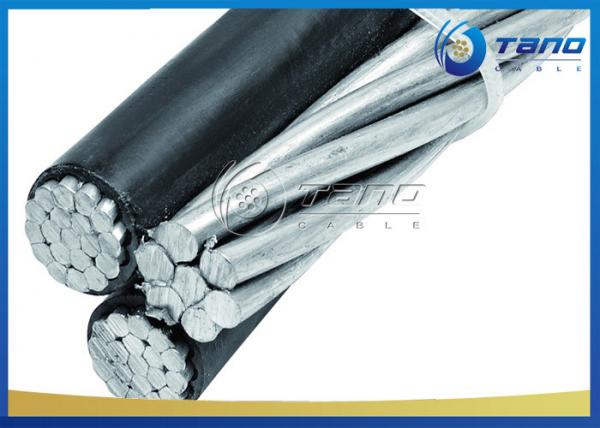

None Jacket Overhead Service Drop Cable , Twist Aerial Aluminum Cable 600V image
Brand Name :
Tano Cable
Model Number :
Triplex Service Drop Cable
Certification :
ISO
Place of Origin :
China
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
80000km per month
Delivery Time :
5-20 working days
Packaging Details :
by wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery
conductor :
aluminum wire
messenger wire :
AAC
insulation :
xlpe pe
jacket :
none
application :
overhead
voltage :
600V
None Jacket Overhead Service Drop Cable , Twist Aerial Aluminum Cable 600V
Description
TRIPLEX SERVICE DROP
600V Triplex Aluminum Conductor PE or XLP Insulation
Standards
ASTM – B-230 Aluminum Wire,1350-H19 for electrical purposes ASTM – B-231 Aluminum Conductors, Concentric-Lay-Stranded ASTM – B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced ICEA S-61-402 and ICEA S66-524
Construction
Conductor: Concentrically stranded, compressed 1350-H19 aluminum
Insulation: Polyethylene or cross-linked polyethylene
Assembly: Two insulated aluminum conductors with a bare neutral-messenger
Jacket: None
Technical Specification
| Code Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft.(Ibs.) |
Allowable Ampacities+ |
||||||
| Size (AWG) |
Stranding | Insul. Thick. (mils) |
Size (kcmil) |
Stranding | Rated Strength (Ibs.) |
XLP | POLY | XLP | POLY | |
| AAC NEUTRAL-MESSENGER | ||||||||||
| Patella | 6 | 7 | 45 | 6 | 7 | 563 | 103 | 103 | 85 | 70 |
| Oyster | 4 | 7 | 45 | 4 | 7 | 881 | 154 | 154 | 115 | 90 |
| Clam | 2 | 7 | 45 | 2 | 7 | 1350 | 233 | 233 | 150 | 120 |
| Murex | 1/0 | 7 | 60 | 1/0 | 7 | 1990 | 374 | 374 | 205 | 160 |
| Purpura | 1/0 | 9 | 60 | 1/0 | 7 | 1990 | 368 | 368 | 205 | 160 |
| Nassa | 2/0 | 7 | 60 | 2/0 | 7 | 2510 | 462 | 462 | 235 | 185 |
| Melita | 3/0 | 17 | 60 | 3/0 | 19 | 3310 | 562 | 562 | 275 | 215 |
| Portunus | 4/0 | 18 | 60 | 4/0 | 19 | 4020 | 696 | 696 | 315 | 245 |
| Nannynose | 336.4 | 19 | 80 | 336.4 | 19 | 6146 | 1118 | 1118 | 420 | 325 |
* Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Haiotis/XLP).
+ Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.
