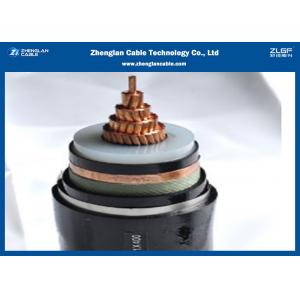

Nominal Section：25~400mm² 3.6/6KV Medium Voltage Armoured 1C Armoured Power Cable (CU/XLPE/LSZH/STA/NYBY/N2XBY/NYB2Y)
Nominal Section：25~400mm² 3.6/6KV Medium Voltage Armoured 1C Armoured Power Cable (CU/XLPE/LSZH/STA/NYBY/N2XBY/NYB2Y) image
Nominal Section:25~400mm² 3.6/6KV Medium Voltage Armoured 1C Armoured Power Cable (CU/XLPE/LSZH/STA/NYBY/N2XBY/NYB2Y)
3.6/6.kV-SINGLE CORE COPPER CABLE CU/XLPE/SCR/PVC/AWA/PVC
| NOMINAL AREA OF CONDUCTOR | MAXIMUM CONDUCTOR RESISTANCE AT 20 ℃ | THICKNESS OF XLPE INSULATION | THICKNESS OF COPPER TAPE | THICKNESS OF EXTRUDED BEDDING | DIA OF ARMOUR WIRE | THICKNESS OF OUTER SHEATH | APPRO. OVERALL DIAMETER | APPRO. CABLE WEIGHT | STANDARD PACKING LENGTH | DRUM SIZE | APPRO. GROSS WEIGHT |
| Sqmm | Ohm/Km | mm | mm | mm | mm | mm | kg/km | Metre±10% | KG | ||
| 35 | 0.524 | 2.5 | 0.075 | 1.2 | 1.6 | 1.8 | 25.5 | 1020 | 500 | D-12 | 620 |
| 50 | 0.387 | 2.5 | 0.075 | 1.2 | 1.6 | 1.8 | 26.6 | 1180 | 500 | D-12 | 700 |
| 70 | 0.268 | 2.5 | 0.075 | 1.2 | 1.6 | 1.8 | 28.2 | 1440 | 500 | D-12 | 830 |
| 95 | 0.193 | 2.5 | 0.075 | 1.2 | 1.6 | 1.9 | 30.3 | 1760 | 500 | D-14 | 1030 |
| 120 | 0.153 | 2.5 | 0.075 | 1.2 | 1.6 | 1.9 | 31.8 | 2050 | 500 | D-14 | 1175 |
| 150 | 0.124 | 2.5 | 0.075 | 1.2 | 1.6 | 2 | 33.4 | 2380 | 500 | D-14 | 1340 |
| 185 | 0.0991 | 2.5 | 0.075 | 1.2 | 2 | 2 | 35.8 | 2840 | 500 | D-16 | 1630 |
| 240 | 0.0754 | 2.6 | 0.075 | 1.2 | 2 | 2.1 | 38.7 | 3490 | 500 | D-18 | 1985 |
| 300 | 0.0601 | 2.8 | 0.075 | 1.2 | 2 | 2.2 | 41.3 | 4180 | 500 | D-18 | 2330 |
| 400 | 0.047 | 3 | 0.075 | 1.2 | 2 | 2.3 | 44.8 | 5160 | 500 | D-18 | 2820 |
| 500 | 0.0366 | 3.2 | 0.075 | 1.3 | 2.5 | 2.5 | 49.8 | 6490 | 500 | D-19 | 3565 |
| 630 | 0.0283 | 3.2 | 0.075 | 1.4 | 2.5 | 2.6 | 54 | 8020 | 500 | D-21 | 4430 |
1.Application
Used in transformer stations, switching blocks, in electric power plants and industrial plants. Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.
2.Quick Details
Place of Origin: Henan, China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: environmental,low smoke , halogen free , flame retardant , anti-aging properties of light pvc/xlpe material
Type: 3.8/6.6~19/33kV
Conductor: High quality oxygen-free copper,aluminum
Jacket: PVC or XLPE
Sizes: 1.5~1000mm2
Executive Standard: BS 6622
Certificate: CE, RoHS, CCC, KEMA and more others at request
Packaging Details: drum , reel or as your request.
3.Standard:
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request
4.Construction:
Conductor: Plain annealed copper or aluminium complying with IEC 60228/BS 6360. Copper
conductors shall be stranded and aluminium conductors shall be either solid or
stranded.
Conductor Screen: Extruded layer of semi-conducting cross-linkable compound is applied
over the conductor and shall cover the surface completely. The minimum thickness is 0.3mm
and the maximum resistivity shall not exceed 500 Ohm-m at 90°C.
Insulation: Insulation is of cross-linked polyethylene compound XLPE (GP8) conforming to
BS 7655-1.3 or EPR (GP7), conforming to BS 7655-1.2.
Shield construction:Copper Wire Screen or Copper Tape Screen
Armor construction:GS. STEEL WIRE or Aluminum Wire for Single Core Cable
Parameters Table(copper tape and wire screen)
| Normal cross sectional area(mm²) | Appro conductor dia(mm) | Nom insulation thickness(mm) | Copper tape thickness(mm) | Copper wire screen area(mm²) | Appro. Insulation dia(mm) | Nom armor thickness(mm) | Nom sheath thickness(mm) | Appro overall diameter(mm) | Appro weight(kg/km) | |
| CU | AL | |||||||||
| 25 | 6.05 | 2.5 | 0.1 | 16 | 12.5 | 0.5 | 2.2 | 39 | 2800 | 2300 |
| 35 | 7.10 | 2.5 | 0.1 | 16 | 13.5 | 0.5 | 2.3 | 42 | 3200 | 2600 |
| 50 | 8.25 | 2.5 | 0.1 | 16 | 14.7 | 0.5 | 2.4 | 45 | 3800 | 2900 |
| 70 | 9.90 | 2.5 | 0.1 | 16 | 16.3 | 0.5 | 2.5 | 49 | 4700 | 3400 |
| 95 | 11.7 | 2.5 | 0.1 | 16 | 18.1 | 0.5 | 2.6 | 53 | 5800 | 4000 |
| 120 | 13.3 | 2.5 | 0.1 | 16 | 19.5 | 0.5 | 2.7 | 56 | 6800 | 4600 |
| 150 | 14.3 | 2.5 | 0.1 | 25 | 20.7 | 0.5 | 2.8 | 59 | 7900 | 5100 |
| 185 | 16.3 | 2.5 | 0.1 | 25 | 22.7 | 0.8 | 2.9 | 64 | 9400 | 5900 |
| 240 | 18.7 | 2.6 | 0.1 | 25 | 25.3 | 0.8 | 3.1 | 70 | 11700 | 7000 |
| 300 | 20.9 | 2.8 | 0.1 | 25 | 27.9 | 0.8 | 3.3 | 76 | 14100 | 8300 |
| 400 | 23.7 | 3.0 | 0.1 | 25 | 31.1 | 0.8 | 3.6 | 85 | 18300 | 10900 |
Product show
Why Choose Zhenglan Cable:
- OEM/ODM services provided
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
- Registered capital of $30 million and factory covers an area of 60,000㎡
- Advanced test equipment and procedures, 100% inspection before factory
- Enough stocks and the higest efficient shipping time guarranteed
- Professional pre-sales and after-sales services provided
We are China Nominal Section：25~400mm² 3.6/6KV Medium Voltage Armoured 1C Armoured Power Cable (CU/XLPE/LSZH/STA/NYBY/N2XBY/NYB2Y) manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
