NA2XSRY Cable (6/10kV 8.7/15kV 12/20kV 18/30kV AL/XLPE/SWA/PVC Single Core Power Cable)
6/10kV 8.7/15kV 12/20kV 18/30kV NA2XSRY Cable (AL/XLPE/SWA/PVC)
Also Known As:
NA2XSRY Medium voltage cable, NA2XSRY Cable, YJLV72 Cable, 6/10kV 8.7/15kV 12/20kV 18/30kV AL/XLPE/SWA/PVC Single Core Power Cable
Applications
Medium voltage single core cable is suitable for use in power networks, in fixed installation outdoors in cable ducts or directly in the ground. Cable operational stability is enhanced because of very low dielectric loss factor, excellent insulation property of XLPE and firm bonding with conductor screen and insulation screen of semi-conductive material (extruded in one process), which makes it widely used in transformer stations, electric power plants and industrial plants.
Applicable Standards:
Ge’s Medium voltage NA2XSRY Cable (AL/XLPE/SWA/PVC) meets or exceeds the following Standards
IEC 60228 Conductors
IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) – Part 2: Cables for rated voltages of 6 kV(Um=7.2kV) and 30 kV(Um=36kV)

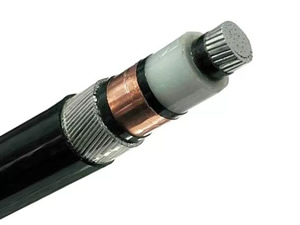

Construction
-
1)Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2)Conductor screen: Non-metallic, semi-conducting compound
3)Insulation: Cross-linked polyethylene XLPE
4)Insulation screen: Non-metallic, semi-conducting compound
5)Metallic screen: Copper tape
6)Inner covering: Polyvinyl chloride PVC
7)Armour: Non-metallic, steel wire armour
8)Binder tape: Non-hygroscopic material
9)Outer sheath: Polyvinyl chloride PVC
Medium voltage NA2XSRY Cable (AL/XLPE/SWA/PVC) Specification
Get all the answers to the most frequently asked questions (FAQs) regarding NA2XSRY Cable meaning,NA2XSRY Cable pdf,NA2XSRY Cable full form,NA2XSRY Cable current rating,NA2XSRY Cable type,NA2XSRY Cable manufacturer and much, much more.
Medium voltage NA2XSRY Cable (AL/XLPE/SWA/PVC) manufactured by GE meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc
| No. of cores and nominal cross section | Thickness of insulation | Diameter of steel wire | Thickness of sheath | Approx. overall diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
|---|---|---|---|---|---|---|---|---|
| (mm2) | (mm) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In air (A) | In ground (A) |
| 1X16 | 3.4 | 1.6 | 1.8 | 24.9 | 1105 | 1.91 | 60 | 81 |
| 1X25 | 3.4 | 1.6 | 1.8 | 25.9 | 1196 | 1.20 | 91 | 102 |
| 1X35 | 3.4 | 1.6 | 1.8 | 26.9 | 1289 | 0.868 | 112 | 123 |
| 1X50 | 3.4 | 1.6 | 1.8 | 28.2 | 1398 | 0.641 | 133 | 147 |
| 1X70 | 3.4 | 1.6 | 1.9 | 30.1 | 1574 | 0.443 | 168 | 182 |
| 1X95 | 3.4 | 1.6 | 1.9 | 31.7 | 1748 | 0.320 | 207 | 221 |
| 1X120 | 3.4 | 2.0 | 2.0 | 34.1 | 2130 | 0.253 | 238 | 252 |
| 1X150 | 3.4 | 2.0 | 2.1 | 35.8 | 2347 | 0.206 | 270 | 284 |
| 1X185 | 3.4 | 2.0 | 2.1 | 37.5 | 2558 | 0.164 | 308 | 319 |
| 1X240 | 3.4 | 2.0 | 2.2 | 39.9 | 2907 | 0.125 | 371 | 375 |
| 1X300 | 3.4 | 2.0 | 2.2 | 42.1 | 3222 | 0.100 | 424 | 424 |
| 1X400 | 3.4 | 2.5 | 2.4 | 46.7 | 4119 | 0.0778 | 501 | 494 |
| 1X500 | 3.4 | 2.5 | 2.5 | 49.8 | 4664 | 0.0605 | 585 | 564 |
| 1X630 | 3.4 | 2.5 | 2.6 | 54.0 | 5429 | 0.0469 | 651 | 644 |
| No. of cores and nominal cross section | Thickness of insulation | Diameter of steel wire | Thickness of sheath | Approx. overall diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
|---|---|---|---|---|---|---|---|---|
| (mm2) | (mm) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In air (A) | In ground (A) |
| 1X25 | 4.5 | 1.6 | 1.8 | 28.1 | 1359 | 1.20 | 91 | 102 |
| 1X35 | 4.5 | 1.6 | 1.9 | 29.3 | 1468 | 0.868 | 112 | 123 |
| 1X50 | 4.5 | 1.6 | 1.9 | 30.6 | 1582 | 0.641 | 133 | 147 |
| 1X70 | 4.5 | 1.6 | 1.9 | 32.3 | 1751 | 0.443 | 168 | 182 |
| 1X95 | 4.5 | 2.0 | 2.0 | 34.9 | 2185 | 0.320 | 207 | 221 |
| 1X120 | 4.5 | 2.0 | 2.1 | 36.5 | 2372 | 0.253 | 238 | 252 |
| 1X150 | 4.5 | 2.0 | 2.1 | 38.0 | 2552 | 0.206 | 270 | 284 |
| 1X185 | 4.5 | 2.0 | 2.2 | 39.9 | 2813 | 0.164 | 308 | 319 |
| 1X240 | 4.5 | 2.0 | 2.3 | 42.3 | 3145 | 0.125 | 371 | 375 |
| 1X300 | 4.5 | 2.0 | 2.3 | 44.5 | 3469 | 0.100 | 424 | 424 |
| 1X400 | 4.5 | 2.5 | 2.5 | 49.1 | 4384 | 0.0778 | 501 | 494 |
| 1X500 | 4.5 | 2.5 | 2.6 | 52.2 | 4981 | 0.0605 | 585 | 564 |
| 1X630 | 4.5 | 2.5 | 2.7 | 56.4 | 5763 | 0.0469 | 651 | 644 |
| No. of cores and nominal cross section | Thickness of insulation | Diameter of steel wire | Thickness of sheath | Approx. overall diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
|---|---|---|---|---|---|---|---|---|
| (mm2) | (mm) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In air (A) | In ground (A) |
| 1X35 | 5.5 | 1.6 | 1.9 | 30.9 | 1671 | 0.868 | 185 | 134 |
| 1X50 | 5.5 | 1.6 | 2.0 | 32.0 | 1811 | 0.641 | 222 | 157 |
| 1X70 | 5.5 | 2.0 | 2.1 | 34.9 | 2201 | 0.443 | 278 | 192 |
| 1X95 | 5.5 | 2.0 | 2.1 | 36.7 | 2426 | 0.320 | 338 | 229 |
| 1X120 | 5.5 | 2.0 | 2.2 | 38.2 | 2602 | 0.253 | 391 | 260 |
| 1X150 | 5.5 | 2.0 | 2.2 | 39.8 | 2818 | 0.206 | 440 | 288 |
| 1X185 | 5.5 | 2.0 | 2.3 | 41.6 | 3074 | 0.164 | 504 | 324 |
| 1X240 | 5.5 | 2.0 | 2.4 | 44.3 | 3401 | 0.125 | 593 | 373 |
| 1X300 | 5.5 | 2.5 | 2.5 | 47.8 | 4188 | 0.100 | 677 | 419 |
| 1X400 | 5.5 | 2.5 | 2.6 | 50.8 | 4780 | 0.0778 | 769 | 466 |
| 1X500 | 5.5 | 2.5 | 2.7 | 54.3 | 5484 | 0.0605 | 856 | 558 |
| No. of cores and nominal cross section | Thickness of insulation | Diameter of steel wire | Thickness of sheath | Approx. overall diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
|---|---|---|---|---|---|---|---|---|
| (mm2) | (mm) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In air (A) | In ground (A) |
| 1X35 | 8.0 | 2.0 | 2.1 | 37.3 | 2434 | 0.868 | 120 | 87 |
| 1X50 | 8.0 | 2.0 | 2.2 | 38.5 | 2549 | 0.641 | 144 | 102 |
| 1X70 | 8.0 | 2.0 | 2.2 | 40.4 | 2788 | 0.443 | 181 | 125 |
| 1X95 | 8.0 | 2.0 | 2.3 | 42.3 | 3040 | 0.320 | 220 | 149 |
| 1X120 | 8.0 | 2.0 | 2.4 | 43.8 | 3239 | 0.253 | 254 | 169 |
| 1X150 | 8.0 | 2.0 | 2.4 | 46.4 | 3869 | 0.206 | 286 | 187 |
| 1X185 | 8.0 | 2.5 | 2.5 | 48.3 | 4156 | 0.164 | 328 | 211 |
| 1X240 | 8.0 | 2.5 | 2.6 | 50.9 | 4580 | 0.125 | 385 | 242 |
| 1X300 | 8.0 | 2.5 | 2.6 | 53.3 | 5004 | 0.100 | 440 | 272 |
| 1X400 | 8.0 | 2.5 | 2.8 | 56.4 | 5536 | 0.0778 | 500 | 303 |
| 1X500 | 8.0 | 2.5 | 2.9 | 59.9 | 6222 | 0.0605 | 567 | 372 |
