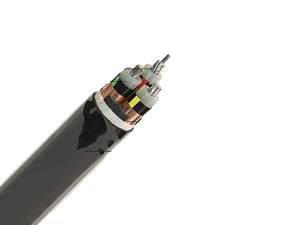

NA2XSEY Cable (6/10kV 8.7/15kV 12/20kV 18/30kV AL/XLPE/CTS/PVC Three Core Power Cable)
6/10kV 8.7/15kV 12/20kV 18/30kV NA2XSEY Cable (AL/XLPE/CTS/PVC)
Also Known As:
NA2XSEY Medium voltage cable, NA2XSEY Cable, YJLV Cable, 6/10kV 8.7/15kV 12/20kV 18/30kV AL/XLPE/CTS/PVC Three Core Power Cable
Applications
Medium voltage single core cable is suitable for use in power networks, in fixed installation outdoors in cable ducts or directly in the ground. Cable operational stability is enhanced because of very low dielectric loss factor, excellent insulation property of XLPE and firm bonding with conductor screen and insulation screen of semi-conductive material (extruded in one process), which makes it widely used in transformer stations, electric power plants and industrial plants.
Applicable Standards:
Ge’s Medium voltage NA2XSEY Cable (AL/XLPE/CTS/PVC) meets or exceeds the following Standards
IEC 60228 Conductors
IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) – Part 2: Cables for rated voltages of 6 kV(Um=7.2kV) and 30 kV(Um=36kV)
Construction
-
1)Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2)Conductor screen: Non-metallic, semi-conducting compound
3)Insulation: Cross-linked polyethylene XLPE
4)Insulation screen: Non-metallic, semi-conducting compound
5)Metallic screen: Copper tape
6)Filler: Non-hygroscopic material
7)Binder tape: Non-hygroscopic material
8)Outer sheath: Polyvinyl chloride PVC
Medium voltage NA2XSEY Cable (AL/XLPE/CTS/PVC) Specification
Get all the answers to the most frequently asked questions (FAQs) regarding NA2XSEY Cable meaning,NA2XSEY Cable pdf,NA2XSEY Cable full form,NA2XSEY Cable current rating,NA2XSEY Cable type,NA2XSEY Cable manufacturer and much, much more.
Medium voltage NA2XSEY Cable (AL/XLPE/CTS/PVC) manufactured by GE meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc
| No. of cores and nominal cross section | Thickness of insulation | Thickness of sheath | Approx. overall diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
|---|---|---|---|---|---|---|---|
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In air(A) | In ground(A) |
| 3X25 | 3.4 | 2.2 | 39.3 | 1408 | 1.20 | 95 | 105 |
| 3X35 | 3.4 | 2.3 | 41.7 | 1605 | 0.868 | 115 | 125 |
| 3X50 | 3.4 | 2.4 | 44.7 | 1856 | 0.641 | 135 | 150 |
| 3X70 | 3.4 | 2.5 | 48.5 | 2224 | 0.443 | 170 | 185 |
| 3X95 | 3.4 | 2.6 | 52.2 | 2630 | 0.320 | 205 | 220 |
| 3X120 | 3.4 | 2.7 | 55.4 | 3008 | 0.253 | 235 | 250 |
| 3X150 | 3.4 | 2.8 | 58.9 | 3419 | 0.206 | 270 | 280 |
| 3X185 | 3.4 | 2.9 | 62.7 | 3947 | 0.164 | 310 | 320 |
| 3X240 | 3.4 | 3.1 | 67.9 | 4727 | 0.125 | 370 | 375 |
| 3X300 | 3.4 | 3.3 | 73.0 | 5548 | 0.100 | 420 | 425 |
| 3X400 | 3.4 | 3.5 | 79.9 | 6679 | 0.0778 | 485 | 485 |
| No. of cores and nominal cross section | Thickness of insulation | Thickness of sheath | Approx. overall diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
|---|---|---|---|---|---|---|---|
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In air(A) | In ground(A) |
| 3X25 | 4.5 | 2.4 | 44.4 | 1759 | 1.20 | 95 | 105 |
| 3X35 | 4.5 | 2.5 | 46.8 | 1974 | 0.868 | 115 | 125 |
| 3X50 | 4.5 | 2.6 | 49.8 | 2248 | 0.641 | 135 | 150 |
| 3X70 | 4.5 | 2.7 | 53.7 | 2645 | 0.443 | 170 | 185 |
| 3X95 | 4.5 | 2.8 | 57.3 | 3079 | 0.320 | 205 | 220 |
| 3X120 | 4.5 | 2.9 | 60.6 | 3481 | 0.253 | 235 | 250 |
| 3X150 | 4.5 | 3.0 | 64.0 | 3918 | 0.206 | 270 | 280 |
| 3X185 | 4.5 | 3.1 | 67.9 | 4476 | 0.164 | 310 | 320 |
| 3X240 | 4.5 | 3.3 | 73.0 | 5295 | 0.125 | 370 | 375 |
| 3X300 | 4.5 | 3.4 | 78.0 | 6121 | 0.100 | 420 | 425 |
| 3X400 | 4.5 | 3.7 | 85.1 | 7340 | 0.0778 | 485 | 485 |
| No. of cores and nominal cross section | Thickness of insulation | Thickness of sheath | Approx. overall diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
|---|---|---|---|---|---|---|---|
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In air(A) | In ground(A) |
| 3X35 | 5.5 | 2.7 | 51.7 | 2207 | 0.868 | 115 | 125 |
| 3X50 | 5.5 | 2.8 | 54.3 | 2464 | 0.641 | 135 | 150 |
| 3X70 | 5.5 | 2.9 | 58.4 | 2877 | 0.443 | 170 | 185 |
| 3X95 | 5.5 | 3.0 | 62.3 | 3340 | 0.320 | 205 | 220 |
| 3X120 | 5.5 | 3.1 | 65.3 | 3766 | 0.253 | 235 | 250 |
| 3X150 | 5.5 | 3.2 | 68.5 | 4204 | 0.206 | 270 | 285 |
| 3X185 | 5.5 | 3.3 | 72.4 | 4757 | 0.164 | 310 | 320 |
| 3X240 | 5.5 | 3.5 | 78.0 | 5591 | 0.125 | 365 | 370 |
| 3X300 | 5.5 | 3.6 | 83.0 | 6500 | 0.100 | 415 | 420 |
| 3X400 | 5.5 | 3.9 | 89.3 | 7725 | 0.0778 | 485 | 480 |
| No. of cores and nominal cross section | Thickness of insulation | Thickness of sheath | Approx. overall diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
|---|---|---|---|---|---|---|---|
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In air(A) | In ground(A) |
| 3X35 | 8.0 | 3.0 | 63.3 | 3035 | 0.868 | 132 | 119 |
| 3X50 | 8.0 | 3.1 | 65.8 | 3327 | 0.641 | 158 | 140 |
| 3X70 | 8.0 | 3.2 | 69.9 | 3793 | 0.443 | 196 | 171 |
| 3X95 | 8.0 | 3.4 | 73.8 | 4307 | 0.320 | 236 | 203 |
| 3X120 | 8.0 | 3.5 | 76.9 | 4774 | 0.253 | 273 | 232 |
| 3X150 | 8.0 | 3.6 | 80.1 | 5284 | 0.206 | 309 | 260 |
| 3X185 | 8.0 | 3.7 | 84.0 | 5858 | 0.164 | 355 | 294 |
| 3X240 | 8.0 | 3.8 | 89.5 | 6726 | 0.125 | 415 | 340 |
| 3X300 | 8.0 | 4.0 | 94.6 | 7740 | 0.100 | 475 | 384 |
| 3X400 | 8.0 | 4.2 | 100.9 | 8966 | 0.0778 | 552 | 438 |
