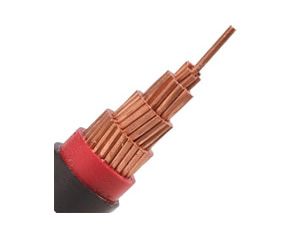

N2XY Cable( 0.6/1 kV CU/XLPE/PVC Power Cable)

0.6/1 kV N2XY Cable (CU/XLPE/PVC)

Also Known As:

N2XY Low voltage cable, N2XY Cable, 0.6/1 kV CU/XLPE/PVC Power Cable

Applications

N2XY cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.

Applicable Standards:

Ge’s 0.6/1 kV N2XY Cable (CU/XLPE/PVC) meets or exceeds the following Standards

IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) – Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

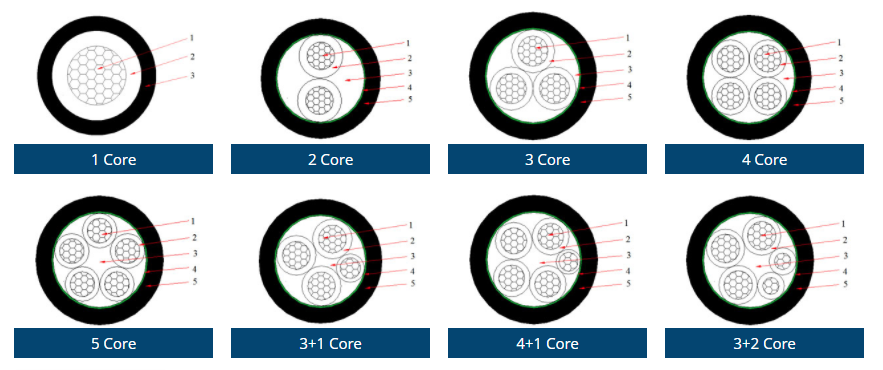

Construction

Single-core

1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Outer sheath: Polyvinyl chloride PVC

Multi core

1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Outer sheath: Polyvinyl chloride PVC

0.6/1 kV N2XY Cable (CU/XLPE/PVC) Specification

Get all the answers to the most frequently asked questions (FAQs) regarding N2XY Cable meaning,N2XY Cable pdf,N2XY Cable full form,N2XY Cable current rating,N2XY Cable type,N2XY Cable manufacturer and much, much more.

0.6/1 kV N2XY Cable (CU/XLPE/PVC) manufactured by GE meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc

1 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated PVC Sheathed Power Cable

No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm²)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
1X1.5	0.7	1.4	5.5	48	12.1	23	32
1X2.5	0.7	1.4	5.9	59	7.41	31	42
1X4	0.7	1.4	6.4	75	4.61	41	55
1X6	0.7	1.4	6.9	95	3.08	52	69
1X10	0.7	1.4	8.0	140	1.83	71	92
1X16	0.7	1.4	9.0	200	1.15	92	115
1X25	0.9	1.4	10.6	310	0.727	120	150
1X35	0.9	1.4	11.6	410	0.524	150	180
1X50	1.0	1.4	13.1	510	0.387	180	215
1X70	1.1	1.4	15.0	710	0.268	230	265
1X95	1.1	1.5	16.8	990	0.193	285	320
1X120	1.2	1.5	18.4	1230	0.153	335	360
1X150	1.4	1.6	20.5	1450	0.124	385	410
1X185	1.6	1.6	22.6	1800	0.0991	450	460
1X240	1.7	1.7	25.2	2300	0.0754	535	535
1x300	1.8	1.8	27.8	2960	0.0601	620	605
1x400	2.0	1.9	31.4	3800	0.0470	720	685
1x500	2.2	2.0	34.9	4800	0.0366	835	775
1X630	2.4	2.2	39.1	6100	0.0283	960	865

2 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated PVC Sheathed Power Cable

No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm²)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
2X1.5	0.7	1.8	10.4	105	12.1	24	35
2X2.5	0.7	1.8	11.2	135	7.41	33	46
2X4	0.7	1.8	12.2	175	4.61	43	59
2X6	0.7	1.8	13.2	230	3.08	55	75
2X10	0.7	1.8	15.4	340	1.83	76	100
2X16	0.7	1.8	17.4	480	1.15	97	130
2X25	0.9	1.8	20.5	700	0.727	130	165
2X35	0.9	1.8	22.5	930	0.524	160	200
2X50	1.0	1.8	20.3	1000	0.387	195	240
2X70	1.1	1.8	23.3	1400	0.268	245	290
2X95	1.1	1.9	26.2	1950	0.193	305	355
2X120	1.2	2.0	29.4	2450	0.153	355	405
2X150	1.4	2.2	32.6	3000	0.124	405	450
2X185	1.6	2.3	36.0	3700	0.0991	465	510

3 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated PVC Sheathed Power Cable

No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm²)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
3X1.5	0.7	1.8	11.8	135	12.1	21	30
3X2.5	0.7	1.8	12.7	180	7.41	28	39
3X4	0.7	1.8	13.8	225	4.61	37	51
3X6	0.7	1.8	14.9	300	3.08	47	64
3X10	0.7	1.8	17.2	430	1.83	65	86
3X16	0.7	1.8	19.4	630	1.15	84	110
3X25	0.9	1.8	22.8	940	0.727	110	140
3X35	0.9	1.8	25.0	1250	0.524	135	170
3X50	1.0	1.8	24.4	1500	0.387	170	205
3X70	1.1	1.9	29.4	2140	0.268	215	250
3X95	1.1	2.0	33.6	2960	0.193	265	300
3X120	1.2	2.1	35.9	3760	0.153	310	345
3X150	1.4	2.3	39.9	4420	0.124	350	385
3X185	1.6	2.4	44.1	5950	0.0991	405	435
3X240	1.7	2.6	51.1	7100	0.0754	480	500
3X300	1.8	2.7	56.1	9000	0.0601	555	565
3X400	2.0	3.0	62.4	10000	0.0470	640	640

4 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated PVC Sheathed Power Cable

No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm²)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
4X1.5	0.7	1.8	12.6	160	12.1	21	30
4X2.5	0.7	1.8	13.6	210	7.41	28	39
4X4	0.7	1.8	14.8	280	4.61	37	51
4X6	0.7	1.8	16.0	380	3.08	47	64
4X10	0.7	1.8	18.6	530	1.83	65	86
4X16	0.7	1.8	21.0	800	1.15	84	110
4X25	0.9	1.8	24.9	1240	0.727	110	140
4X35	0.9	1.8	28.3	1600	0.524	135	170
4X50	1.0	1.8	28.4	2000	0.387	170	205
4X70	1.1	2.0	33.1	2800	0.268	215	250
4X95	1.1	2.1	37.1	4000	0.193	265	300
4X120	1.2	2.2	40.8	5000	0.153	310	345
4X150	1.4	2.4	45.2	6100	0.124	350	385
4X185	1.6	2.6	52.1	7600	0.0991	405	435
4X240	1.7	2.8	57.8	9500	0.0754	480	500
4X300	1.8	3.0	63.5	12000	0.0601	555	565
4X400	2.0	3.3	70.9	16000	0.0470	640	640

5 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated PVC Sheathed Power Cable

No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm²)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
5X1.5	0.7	1.8	11.7	170	12.1	21	30
5X2.5	0.7	1.8	12.8	250	7.41	28	39
5X4	0.7	1.8	14.0	330	4.61	37	51
5X6	0.7	1.8	15.4	460	3.08	47	64
5X10	0.7	1.8	18.8	700	1.83	65	86
5X16	0.7	1.8	21.8	1000	1.15	84	110
5X25	0.9	1.8	26.2	1540	0.727	110	140
5X35	0.9	1.8	28.0	2080	0.524	135	170
5X50	1.0	1.9	32.4	2760	0.387	170	205
5X70	1.1	2.1	37.4	3890	0.268	215	250
5X95	1.1	2.2	41.7	5120	0.193	265	300
5X120	1.2	2.4	46.2	6530	0.153	310	345
5X150	1.4	2.6	53.1	8000	0.124	350	385
5X185	1.6	2.8	58.9	9800	0.0991	405	435
5X240	1.7	3.0	65.6	12400	0.0754	480	500
5X300	1.8	3.2	72.0	15450	0.0601	555	565

3+1 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated PVC Sheathed Power Cable

No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm²)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
3X2.5+1X1.5	0.7/0.7	1.8	12.3	200	7.41/12.1	28	39
3X4+1X2.5	0.7/0.7	1.8	13.4	260	4.61/7.41	37	51
3X6+1X4	0.7/0.7	1.8	14.6	350	3.08/4.61	47	64
3X10+1X6	0.7/0.7	1.8	16.9	480	1.83/3.08	65	86
3X16+1X10	0.7/0.7	1.8	19.4	760	1.15/1.83	84	110
3X25+1X16	0.9/0.7	1.8	22.8	1040	0.727/1.15	110	140
3X35+1X16	0.9/0.7	1.8	25.1	1420	0.524/1.15	135	170
3X50+1X25	1.0/0.9	1.8	28.2	1830	0.387/0.727	170	205
3X70+1X35	1.1/0.9	1.9	31.9	2500	0.268/0.524	215	250
3X95+1X50	1.1/1.0	2.1	35.7	3400	0.193/0.387	265	300
3X120+1X70	1.2/1.1	2.2	39.6	4300	0.153/0.268	310	345
3X150+1X70	1.4/1.1	2.3	43.6	5200	0.124/0.268	350	385
3X185+1X95	1.6/1.1	2.5	49.8	6500	0.0991/0.193	405	435
3X240+1X120	1.7/1.2	2.7	55.3	8500	0.0754/0.153	480	500
3X300+1X150	1.8/1.4	2.9	57.0	10000	0.0601/0.124	555	565
3X400+1X185	2.0/1.7	3.1	70.0	13300	0.0470/0.0991	640	640

4+1 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated PVC Sheathed Power Cable

No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm²)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
4X2.5+1X1.5	0.7/0.7	1.8	13.2	220	7.41/12.1	28	39
4X4+1X2.5	0.7/0.7	1.8	14.5	320	4.61/7.41	37	51
4X6+1X4	0.7/0.7	1.8	15.9	420	3.08/4.61	47	64
4X10+1X6	0.7/0.7	1.8	18.5	650	1.83/3.08	65	86
4X16+1X10	0.7/0.7	1.8	21.3	950	1.15/1.83	84	110
4X25+1X16	0.9/0.7	1.8	25.7	1450	0.727/1.15	110	140
4X35+1X16	0.9/0.7	1.8	28.2	1850	0.524/1.15	135	170
4X50+1X25	1.0/0.9	1.9	28.9	2500	0.387/0.727	170	205
7X70+1X35	1.1/0.9	2.0	32.2	3450	0.268/0.524	215	250
4X95+1X50	1.1/1.0	2.2	36.9	4700	0.193/0.387	265	300
4X120+1X70	1.2/1.1	2.3	40.8	6000	0.153/0.268	310	345
4X150+1X70	1.4/1.1	2.5	44.7	7100	0.124/0.268	350	385
4X185+1X95	1.6/1.1	2.7	50.7	9000	0.0991/0.193	405	435
4X240+1X120	1.7/1.2	2.9	56.4	10400	0.0754/0.153	480	500
4X300+1X150	1.8/1.4	3.1	64.0	13500	0.0601/0.124	555	565

3+2 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated PVC Sheathed Power Cable

No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm²)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
3X2.5+2X1.5	0.7/0.7	1.8	13.0	200	7.41/12.1	28	39
3X4+2X2.5	0.7/0.7	1.8	14.3	260	4.61/7.41	37	51
3X6+2X4	0.7/0.7	1.8	15.6	350	3.08/4.61	47	64
3X10+2X6	0.7/0.7	1.8	17.9	480	1.83/3.08	65	86
3X16+2X10	0.7/0.7	1.8	20.8	760	1.15/1.83	84	110
3X25+2X16	0.9/0.7	1.8	25.2	1040	0.727/1.15	110	140
3X35+2X16	0.9/0.7	1.8	26.8	1420	0.524/1.15	135	170
3X50+2X25	1.0/0.9	1.9	28.7	1830	0.387/0.727	170	205
3X70+2X35	1.1/0.9	2.0	32.2	2500	0.268/0.524	215	250
3X95+2X50	1.1/1.0	2.2	36.7	3400	0.193/0.387	265	300
3X120+2X70	1.2/1.1	2.3	40.8	4300	0.153/0.268	310	345
3X150+2X70	1.4/1.1	2.4	44.5	5200	0.124/0.268	350	385
3X185+2X95	1.6/1.1	2.6	50.5	6500	0.0991/0.193	405	435
3X240+2X120	1.7/1.2	2.8	56.1	8500	0.0754/0.153	480	500
3X300+2X150	1.8/1.4	3.0	63.7	10000	0.0601/0.124	555	565
