N2XSY Cable (6/10kV 8.7/15kV 12/20kV 18/30kV CU/XLPE/CTS/PVC Single Core Power Cable)
6/10kV 8.7/15kV 12/20kV 18/30kV N2XSY Cable (CU/XLPE/CTS/PVC)
Also Known As:
N2XSY Medium voltage cable, N2XSY Cable, YJV Cable, 6/10kV 8.7/15kV 12/20kV 18/30kV CU/XLPE/CTS/PVC Power Cable
Applications
Medium voltage single core cable is suitable for use in power networks, in fixed installation outdoors in cable ducts or directly in the ground. Cable operational stability is enhanced because of very low dielectric loss factor, excellent insulation property of XLPE and firm bonding with conductor screen and insulation screen of semi-conductive material (extruded in one process), which makes it widely used in transformer stations, electric power plants and industrial plants.
Applicable Standards:
Ge’s Medium voltage N2XSY Cable (CU/XLPE/CTS/PVC) meets or exceeds the following Standards
IEC 60228 Conductors
IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) – Part 2: Cables for rated voltages of 6 kV(Um=7.2kV) and 30 kV(Um=36kV)

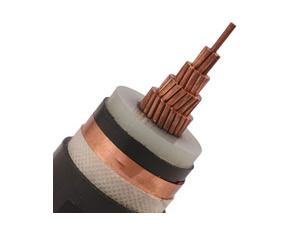

Construction
-
1)Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2)Conductor screen: Non-metallic, semi-conducting compound
3)Insulation: Cross-linked polyethylene XLPE
4)Insulation screen: Non-metallic, semi-conducting compound
5)Metallic screen: Copper tape
6)Outer sheath: Polyvinyl chloride PVC
Medium voltage N2XSY Cable (CU/XLPE/CTS/PVC) Specification
Get all the answers to the most frequently asked questions (FAQs) regarding N2XSY Cable meaning,N2XSY Cable pdf,N2XSY Cable full form,N2XSY Cable current rating,N2XSY Cable type,N2XSY Cable manufacturer and much, much more.
Medium voltage N2XSY Cable (CU/XLPE/CTS/PVC) manufactured by GE meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc
| No. of cores and nominal cross section | Thickness of insulation | Thickness of sheath | Approx. overall diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
|---|---|---|---|---|---|---|---|
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In air (A) | In ground (A) |
| 1X16 | 3.4 | 1.8 | 18.5 | 486 | 1.15 | 130 | 145 |
| 1X25 | 3.4 | 1.8 | 19.5 | 594 | 0.727 | 170 | 190 |
| 1X35 | 3.4 | 1.8 | 20.5 | 706 | 0.524 | 205 | 225 |
| 1X50 | 3.4 | 1.8 | 21.8 | 849 | 0.387 | 245 | 270 |
| 1X70 | 3.4 | 1.8 | 23.5 | 1078 | 0.268 | 310 | 335 |
| 1X95 | 3.4 | 1.8 | 25.1 | 1351 | 0.193 | 380 | 405 |
| 1X120 | 3.4 | 1.8 | 26.5 | 1605 | 0.153 | 435 | 460 |
| 1X150 | 3.4 | 1.8 | 28.0 | 1880 | 0.124 | 495 | 520 |
| 1X185 | 3.4 | 1.9 | 29.9 | 2269 | 0.0991 | 570 | 585 |
| 1X240 | 3.4 | 2.0 | 32.3 | 2840 | 0.0754 | 680 | 690 |
| 1X300 | 3.4 | 2.0 | 34.5 | 3427 | 0.0601 | 780 | 775 |
| 1X400 | 3.4 | 2.1 | 37.7 | 4259 | 0.0470 | 910 | 890 |
| 1X500 | 3.4 | 2.2 | 40.8 | 5330 | 0.0366 | 1060 | 1010 |
| 1X630 | 3.4 | 2.3 | 44.8 | 6703 | 0.0283 | 1230 | 1130 |
| No. of cores and nominal cross section | Thickness of insulation | Thickness of sheath | Approx. overall diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
|---|---|---|---|---|---|---|---|
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In air (A) | In ground (A) |
| 1X25 | 4.5 | 1.8 | 21.7 | 677 | 0.727 | 170 | 190 |
| 1X35 | 4.5 | 1.8 | 22.7 | 793 | 0.524 | 205 | 225 |
| 1X50 | 4.5 | 1.8 | 24.0 | 940 | 0.387 | 245 | 270 |
| 1X70 | 4.5 | 1.8 | 25.7 | 1175 | 0.268 | 310 | 335 |
| 1X95 | 4.5 | 1.8 | 27.3 | 1454 | 0.193 | 380 | 405 |
| 1X120 | 4.5 | 1.9 | 28.9 | 1726 | 0.153 | 435 | 460 |
| 1X150 | 4.5 | 1.9 | 30.4 | 2006 | 0.124 | 495 | 520 |
| 1X185 | 4.5 | 2.0 | 32.3 | 2403 | 0.0991 | 570 | 585 |
| 1X240 | 4.5 | 2.0 | 34.5 | 2969 | 0.0754 | 680 | 690 |
| 1X300 | 4.5 | 2.1 | 36.9 | 3580 | 0.0601 | 780 | 775 |
| 1X400 | 4.5 | 2.2 | 40.1 | 4425 | 0.0470 | 910 | 890 |
| 1X500 | 4.5 | 2.3 | 43.2 | 5509 | 0.0366 | 1060 | 1010 |
| 1X630 | 4.5 | 2.4 | 47.2 | 6898 | 0.0283 | 1230 | 1130 |
| No. of cores and nominal cross section | Thickness of insulation | Thickness of Sheath | Approx. overall diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
|---|---|---|---|---|---|---|---|
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In air (A) | In ground (A) |
| 1X35 | 5.5 | 1.8 | 25.46 | 896 | 0.524 | 150 | 225 |
| 1X50 | 5.5 | 1.8 | 26.76 | 1080 | 0.387 | 180 | 270 |
| 1X70 | 5.5 | 1.8 | 28.46 | 1319 | 0.268 | 220 | 330 |
| 1X95 | 5.5 | 1.9 | 30.26 | 1613 | 0.193 | 265 | 400 |
| 1X120 | 5.5 | 2.0 | 31.66 | 1887 | 0.153 | 310 | 460 |
| 1X150 | 5.5 | 2.0 | 33.46 | 2229 | 0.124 | 350 | 520 |
| 1X185 | 5.5 | 2.1 | 35.06 | 2602 | 0.0991 | 400 | 585 |
| 1X240 | 5.5 | 2.1 | 37.66 | 3200 | 0.0754 | 465 | 680 |
| 1X300 | 5.5 | 2.2 | 39.86 | 3832 | 0.0601 | 535 | 775 |
| 1X400 | 5.5 | 2.3 | 43.26 | 4872 | 0.0470 | 615 | 885 |
| 1X500 | 5.5 | 2.4 | 47.14 | 5928 | 0.0366 | 725 | 1000 |
| No. of cores and nominal cross section | Thickness of insulation | Thickness of Sheath | Approx. overall diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
|---|---|---|---|---|---|---|---|
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In air (A) | In ground (A) |
| 1X35 | 8.0 | 1.9 | 30.1 | 1134 | 0.524 | 238 | 172 |
| 1X50 | 8.0 | 2.0 | 31.3 | 1294 | 0.387 | 286 | 203 |
| 1X70 | 8.0 | 2.0 | 33.2 | 1560 | 0.268 | 356 | 246 |
| 1X95 | 8.0 | 2.1 | 35.0 | 1870 | 0.193 | 434 | 293 |
| 1X120 | 8.0 | 2.1 | 36.4 | 2152 | 0.153 | 500 | 332 |
| 1X150 | 8.0 | 2.2 | 37.9 | 2468 | 0.124 | 559 | 366 |
| 1X185 | 8.0 | 2.2 | 39.7 | 2875 | 0.0991 | 637 | 410 |
| 1X240 | 8.0 | 2.3 | 42.3 | 3497 | 0.0754 | 745 | 470 |
| 1X300 | 8.0 | 2.4 | 44.6 | 4145 | 0.0601 | 846 | 524 |
| 1X400 | 8.0 | 2.5 | 47.5 | 5020 | 0.047 | 938 | 572 |
| 1X500 | 8.0 | 2.6 | 50.9 | 6156 | 0.0366 | 1065 | 725 |
