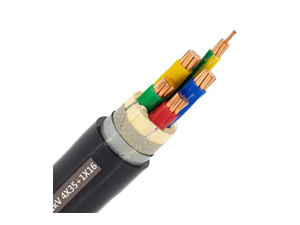

N2XBY Cable( 0.6/1 kV CU/XLPE/STA/PVC Power Cable)

0.6/1 kV N2XBY Cable (CU/XLPE/STA/PVC)

Also Known As:

N2XBY Low voltage cable, N2XBY Cable, 0.6/1 kV CU/XLPE/STA/PVC Power Cable

Applications

N2XBY cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.

Applicable Standards:

Ge’s 0.6/1 kV N2XBY Cable (CU/XLPE/STA/PVC) meets or exceeds the following Standards

IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) – Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

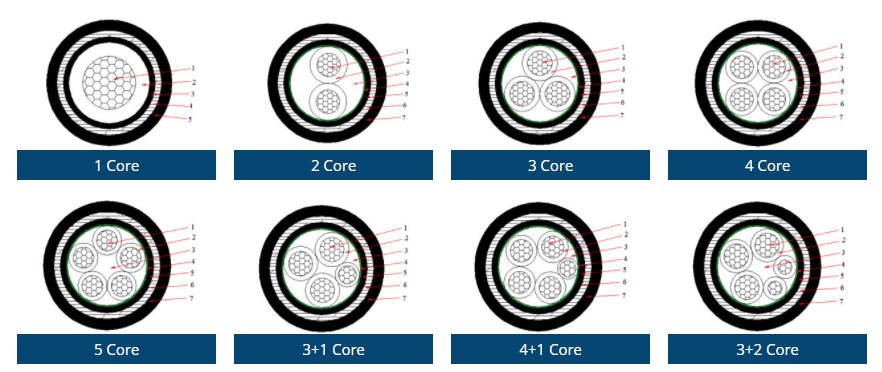

Construction

Single-core

1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Polietileno reticulado XLPE
3. Inner sheath:Polyvinyl chloride PVC
4. Armour: Non-magnetic steel-tape
5. Outer sheath: Polyvinyl chloride PVC

Multi core

1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: crosslinked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Inner sheath: Polyvinyl chloride PVC
6. Armour: Steel-tape
7. Outer sheath: Polyvinyl chloride PVC

0.6/1 kV N2XBY Cable (CU/XLPE/STA/PVC) Specification

Get all the answers to the most frequently asked questions (FAQs) regarding N2XBY Cable meaning,N2XBY Cable pdf,N2XBY Cable full form,N2XBY Cable current rating,N2XBY Cable type,N2XBY Cable manufacturer and much, much more.

0.6/1 kV N2XBY Cable (CU/XLPE/STA/PVC) manufactured by GE meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc

1 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
1X10	0.7	0.2	1.8	11.8	244.0	1.83	75	47
1X16	0.7	0.2	1.8	12.9	318.0	1.15	97	62
1X25	0.9	0.2	1.8	14.6	430.0	0.727	125	78
1X35	0.9	0.2	1.8	15.2	533.0	0.524	155	94
1X50	1.0	0.2	1.8	16.7	668.0	0.387	190	110
1X70	1.1	0.2	1.8	18.5	893.0	0.268	245	135
1X95	1.1	0.2	1.8	20.1	1157.0	0.193	300	160
1X120	1.2	0.2	1.8	21.7	1410.0	0.153	350	185
1X150	1.4	0.2	1.8	23.7	1705.0	0.124	400	205
1X185	1.6	0.2	1.8	25.7	2082.0	0.0991	460	235
1X240	1.7	0.2	1.8	28.0	2652.0	0.0754	-	-
1X300	1.8	0.2	1.9	31.0	3259.0	0.0601	-	-
1X400	2.0	0.2	2.0	35.0	4135.0	0.047	-	-

2 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
2X2.5	0.7	0.2	1.8	13.4	230	7.41	-	45
2X4	0.7	0.2	1.8	14.3	277	4.61	-	59
2X6	0.7	0.2	1.8	15.3	336	3.08	-	74
2X10	0.7	0.2	1.8	17.8	452	1.83	64	100
2X16	0.7	0.2	1.8	20.0	609	1.15	83	135
2X25	0.9	0.2	1.8	23.3	845	0.727	110	165
2X35	0.9	0.2	1.8	24.6	1065	0.524	135	200
2X50	1.0	0.2	1.8	27.2	1297	0.387	165	240
2X70	1.1	0.2	1.9	31.4	1775	0.268	210	295
2X95	1.1	0.2	2.0	35.5	2340	0.193	260	355
2X120	1.2	0.5	2.2	40.2	3238	0.153	305	405
2X150	1.4	0.5	2.3	44.2	3971	0.124	345	455
2X185	1.6	0.5	2.5	48.9	4845	0.0991	396	515

3 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
3X2.5	0.7	0.2	1.8	13.9	265	7.41	-	35
3X4	0.7	0.2	1.8	14.8	328	4.61	-	50
3X6	0.7	0.2	1.8	16.0	410	3.08	-	60
3X10	0.7	0.2	1.8	18.6	560	1.83	64	85
3X16	0.9	0.2	1.8	21.0	775	1.15	83	110
3X25	0.9	0.2	1.8	24.6	1098	0.727	110	140
3X35	0.9	0.2	1.8	26.0	1410	0.524	135	170
3X50	1.0	0.2	1.9	28.9	1780	0.387	165	200
3X70	1.1	0.2	2.0	33.9	2475	0.268	210	245
3X95	1.1	0.5	2.2	39.0	3260	0.193	260	300
3X120	1.2	0.5	2.3	42.7	4477	0.153	305	335
3X150	1.4	0.5	2.4	47.5	5440	0.124	345	380
3X185	1.6	0.5	2.6	52.1	6707	0.0991	395	430
3X240	1.7	0.5	2.8	58.3	8533	0.0754	465	500
3X300	1.8	0.5	2.9	63.6	10455	0.0601	535	565

4 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
4X2.5	0.7	0.2	1.8	14.7	308	7.41	-	35
4X4	0.7	0.2	1.8	15.8	388	4.61	-	50
4X6	0.7	0.2	1.8	17.0	488	3.08	-	60
4X10	0.7	0.2	1.8	20.0	681	1.83	64	85
4X16	0.9	0.2	1.8	22.7	960	1.15	83	110
4X25	0.9	0.2	1.8	26.7	1375	0.727	110	140
4X35	0.9	0.2	1.8	28.3	1779	0.524	135	170
4X50	1.0	0.2	2.1	32.0	2296	0.387	165	200
4X70	1.1	0.5	2.1	38.5	3175	0.268	210	245
4X95	1.1	0.5	2.3	42.9	4665	0.193	260	300
4X120	1.2	0.5	2.4	47.4	5728	0.153	305	335
4X150	1.4	0.5	2.6	52.3	6999	0.124	345	380
4X185	1.6	0.5	2.7	57.5	8657	0.0991	395	430
4X240	1.7	0.5	3.0	64.3	11000	0.0754	465	500
4X300	1.8	0.5	3.1	70.3	13587	0.0601	535	565

5 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
5X2.5	0.7	0.2	1.8	15.6	350	7.41	-	35
5X4	0.7	0.2	1.8	16.8	447	4.61	-	50
5X6	0.7	0.2	1.8	18.2	569	3.08	-	60
5X10	0.7	0.2	1.8	21.6	805	1.83	64	85
5X16	0.7	0.2	1.8	24.6	1150	1.15	83	110
5X25	0.9	0.2	1.8	29.0	1655	0.727	110	140
5X35	0.9	0.2	1.9	31.0	2166	0.524	135	170
5X50	1.0	0.2	2.1	35.7	2945	0.387	165	200
5X70	1.1	0.5	2.3	42.4	4453	0.268	210	245
5X95	1.1	0.5	2.4	47.2	5862	0.193	260	300
5X120	1.2	0.5	2.6	51.8	7176	0.153	305	335
5X150	1.4	0.5	2.7	57.6	8770	0.124	345	380
5X185	1.6	0.5	2.9	63.8	10827	0.0991	395	430
5X240	1.7	0.5	3.2	70.7	13770	0.0754	465	500
5X300	1.8	0.5	3.4	78.0	16960	0.0601	535	565

3+1 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
3X4+1X2.5	0.7/0.7	0.2	1.8	15.5	368	4.61/7.41	-	50
3X6+1X4	0.7/0.7	0.2	1.8	16.8	465	3.08/4.61	-	60
3X10+1X6	0.7/0.7	0.2	1.8	19.3	633	1.83/3.08	64	85
3X16+1X10	0.7/0.7	0.2	1.8	22.1	890	1.15/1.83	83	110
3X25+1X16	0.9/0.7	0.2	1.8	25.1	1272	0.727/1.15	110	140
3X35+1X16	0.9/0.7	0.2	1.8	26.8	1583	0.524/1.15	135	170
3X50+1X25	1/0.9	0.2	1.9	30.2	2030	0.387/0.727	165	200
3X70+1X35	1.1/0.9	0.2	2.0	35.1	2810	0.268/0.524	210	245
3X95+1X50	1.1/1.0	0.5	2.2	40.4	4135	0.193/0.387	260	300
3X120+1X70	1.2/1.1	0.5	2.3	45	5135	0.153/0.268	305	335
3X150+1X70	1.4/1.1	0.5	2.5	49.1	6120	0.124/0.268	345	380
3X185+1X95	1.6/1.1	0.5	2.8	54.3	7616	0.0991/0.193	395	430
3X240+1X120	1.7/1.2	0.5	2.8	59.1	9679	0.0754/0.153	465	500
3X300+1X150	1.8/1.4	0.5	3.0	66	11889	0.0601/0.124	535	565

4+1 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
4X4+1X2.5	0.7/0.7	0.2	1.8	16.3	434	4.61/7.41	-	50
4X6+1X4	0.7/0.7	0.2	1.8	17.7	549	3.08/4.61	-	60
4X10+1X6	0.7/0.7	0.2	1.8	20.3	759	1.83/3.08	64	85
4X16+1X10	0.7/0.7	0.2	1.8	24	1079	1.15/1.83	83	110
4X25+1X16	0.9/0.7	0.2	1.8	28.1	1557	0.727/1.15	110	140
4X35+1X16	0.9/0.7	0.2	1.9	29.6	1962	0.524/1.15	135	170
4X50+1X25	1/0.9	0.2	2.0	34	2601	0.387/0.727	165	200
4X70+1X35	1.1/0.9	0.5	2.2	40.3	3916	0.268/0.524	210	245
4X95+1X50	1.1/1.0	0.5	2.3	44.8	5260	0.193/0.387	260	300
4X120+1X70	1.2/1.1	0.5	2.6	50.2	6545	0.153/0.268	305	335
4X150+1X70	1.4/1.1	0.5	2.8	54.6	7780	0.124/0.268	345	380
4X185+1X95	1.6/1.1	0.5	2.9	60.5	9688	0.0991/0.193	395	430
4X240+1X120	1.7/1.2	0.5	3.0	67.1	12253	0.0754/0.153	465	500
4X300+1X150	1.8/1.4	0.5	3.2	73.7	15078	0.0601/0.124	535	565

3+2 core 0.6/1kV-1 Core Copper Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable

Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm²	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
3X4+2X2.5	0.7/0.7	0.2	1.8	16.6	412	4.61/7.41	-	50
3X6+2X4	0.7/0.7	0.2	1.8	18	525	3.08/4.61	-	60
3X10+2X6	0.7/0.7	0.2	1.8	20.9	714	1.83/3.08	64	85
3X16+2X10	0.7/0.7	0.2	1.8	24	1016	1.15/1.83	83	110
3X25+2X16	0.9/0.7	0.2	1.8	28.1	1465	0.727/1.15	110	140
3X35+2X16	0.9/0.7	0.2	1.9	29.6	1769	0.524/1.15	135	170
3X50+2X25	1/0.9	0.2	2.0	34	2316	0.387/0.727	165	200
3X70+2X35	1.1/0.9	0.5	2.2	40.3	3230	0.268/0.524	210	245
3X95+2X50	1.1/1.0	0.5	2.3	44.8	4766	0.193/0.387	260	300
3X120+2X70	1.2/1.1	0.5	2.5	50.2	6080	0.153/0.268	305	335
3X150+2X70	1.4/1.1	0.5	2.6	54.6	7005	0.124/0.268	345	380
3X185+2X95	1.6/1.1	0.5	2.8	60.5	8767	0.0991/0.193	395	430
3X240+2X120	1.7/1.2	0.5	3.0	67.1	11105	0.0754/0.153	465	500
3X300+2X150	1.8/1.4	0.5	3.2	73.7	13645	0.0601/0.124	535	565
