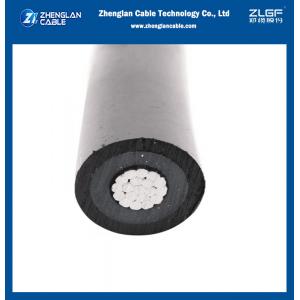

MV 3Layer Tree Cable AAC AAAC ACSR Conductor XLPE HDPE TR-XLPE LDPE Systems image

Get a Quote Email to us

Brand Name :Zhenglan Cable
Model Number :AAC/SC/XLPE overhead insulated cable
Certification :ISO 9001:2015,ISO 14001:2005
Place of Origin :Henan, China
MOQ :1000meters
Price :Negotiable
Payment Terms :L/C, T/T, Western Union
Supply Ability :80Km/Month
Delivery Time :15-20 days
Packaging Details :Wooden case, wooden-steel case, coil or plastic drumor customized
Name :AAC/SC/XLPE overhead insulated cable
structure :AL / SC / XLPE
Conductor Material :Aluminum
Insulation Material :XLPE
Quality :NTC 5909, ICEA S121-733
Standard :ISO 9001:2015

MV 3Layer Tree Cable AAC AAAC ACSR Conductor XLPE HDPE TR-XLPE LDPE Tree Wire Systems

Application:

Tree cable are mainly used for primary and secondary overhead distribution where limited space is available or desirable for rights of way. The covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors in such close proximity. The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation; particularly useful in congested areas such as alleyways or tight corridors.
Structure:
Conductor : AAC/ACSR/AAAC.
Conductor shield : Semi-conducting cross-linked polyethylene.
Insulation : Cross-linked polyethylene
Sheath : Track resistant cross-linked polyethylene; LDPE/TR-XLPE/HDPE

Classification:
Normal operation 90 °C
Emergency overload conditions 130 °C
Short circuit conditions 250°C

Standards:

• ASTM B230: Aluminum wires, alloy 1350-H19 for electrical purposes.

• ASTM B231: Type 1350-H19 stranded aluminum conductors in concentric layers.

• NTC 5909: Covered (semi-insulated) non-shielded power cables of 15 kV – 46 kV, for use in overhead power distribution lines.

• ANSI/ICEA S-121-733: Standard for ecological cable – semi-insulated overhead lines.

In addition to all the requirements of the National Electrical Code.

Tree wire (tree wire,Medium Voltage Covered Conductor) manufactured by Zhenglan meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN,IEC, NFC, SS -etc

Technical date sheets:

Three-Layer 15kv AAC Tree Wire (All-Aluminum Conductors)
Size (AWG or kcmil) Stranding Cover Thickness (mils) Cable O.D.+ (mils) Rated Strenght (lbs) Weight per 1000 ft. (lbs) Allowable Ampacity*
XLP HD Poly
1/0 7 336 15 75 75

666

1791

2/0 7 376 15 75 75

706

2259

3/0 7 423 15 75 75

753

2736

4/0 7 475 15 75 75

805

3447

266.8 19 537 15 75 75

867

4473

336.4 19 603 15 75 75

933

5535

397.5 19 659 15 75 75

989

6399

477 19 722 15 75 75

1052

7524

556.5 37 780 20 75 75

1120

8946

636 37 835 20 80 80

1195

10260

795 37 932 20 80 80

1292

12510

Picture:

Packages:

About us
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The main products of the company are 9 major categories, 10 product series and 60 varieties, including all kinds of bare wires, power cables (cross-linked cables, plastic cables, etc.) special cables (fire retardant, fire resistant, low smoke and halogen free cables), control cables, overhead insulated cables, cloth and wires, tec. The company’s leading products include 1KV, 10-35KV XLPE cables, plastic cables, irradiated cables, special cables, overhead conductors and so on. The company’s products are produced in strict accordance with national standards(GB), and can be produced in accordance with International Electrotechnical Commission Standards(IEC), CCITT, British Standards (BS), German Standards (DIN), Japanese Standards(JIS), American standard(ASTM), French standard (NF) production, but also according to customer requirements for non-standard cable product design and manufacturing to meet different customer needs.

FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
