Multiple Conductor Concentric Cable 3 Cores 4 AWG 6 AWG 8 AWG For Transmission

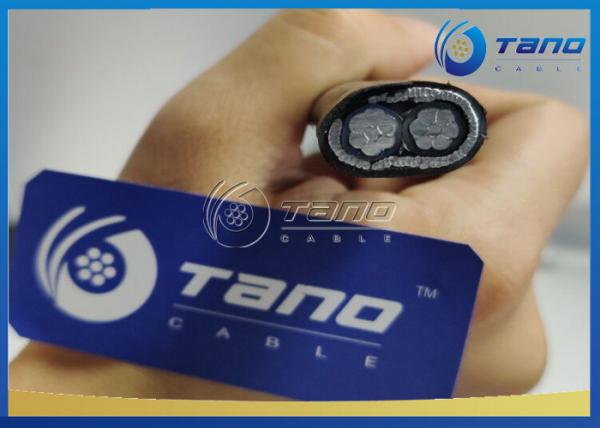

Multiple Conductor Concentric Cable 3 Cores 4 AWG 6 AWG 8 AWG For Transmission image
Brand Name :
TANO CABLE
Model Number :
Concentric Cable
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1000M
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 KM per month
Delivery Time :
7-30 days
Packaging Details :
by wooden drums, rolls
Conductor :
AL/CU
Insulation :
XLPE/PVC
Sheath :
PVC/PE
Voltague :
0.6/1kV
name :
Concentric Cable
model :
Concentric Cable
0.6 / 1kV Concentric Cable 3 Cores 4AWG 6 AWG 8AWG For Transmission
Product Description:
These cover Type USE and USE-2 (below-ground) and Type SE () power cable for installation in accordance with Article 338 and other applicable parts of the National Electrical Code (NEC). These cables are for the service-entrance and other (NEC) uses described in 1.4 1.8. In a multiple-conductor cable that is other than submersible-pump cable and does not have a grounding conductor it is appropriate to have one circuit conductor without insulation. It is also appropriate for a pump cable to have a grounding conductor and for Type USE and USE-2 cables to have an insulated grounding conductor. Each insulated conductor in these cables is rated for 600V. Type USE cable has insulation, except for of HDPE-over-XLPE insulation used for single-conductor Type USE cable. Type USE cable has or insulation.
Type:
Single core type with less neutral entrance cable
Single core type round with full neutral and communication cores
Two core type Flat with full neutral entrance cable
Two core type round with full neutral entrance cable
Three core type round with full neutral and communication cores
Three core type with less neutral entrance cable.
Type 1: ASTM Standard Circular Type Concentric Cables
1. Conductor: Copper wire, Aluminum Wire, Aluminum Alloy Wire S8000, Copper Clad AluminumCCA)
2. Insulation: XLPE
3. Neutral Conductor: Copper wire, Aluminum Wire, Aluminum Alloy Wire S8000, Copper Clad AluminumCCA)
4. Binder Tape: Polyester Tape or Semi-conducting Tape
5. Outer Sheath: XLPE
Technical Particulars
| Size | Phase Conductor | XLPE Insulation | Neutral Conductor | XLPE Sheath | |||||||
| Structure | O.D | Thickness | O.D | Structure | O.D | Thickness | O.D | CU | AL | CCA | |
| AWG | No./mm | No./mm | / | / | / | ||||||
| 2×8 | 7/1.23 | 3.69 | 1.14 | 5.97 | 25/0.65 | 7.27 | 1.14 | 9.84 | 202 | 97 | 101 |
| 2×10 | 7/0.98 | 2.94 | 1.14 | 5.22 | 25/0.52 | 6.26 | 1.14 | 8.83 | 141 | 74 | 77 |
| Size | Phase Conductor | XLPE Insulation | Inner Sheath | Neutral Conductor |
XLPE Sheath | Approx.Weight | |||||
| Structure | O.D | Thickness | O.D | Thickness | Structure | Thickness | O.D | CU | AL | CCA | |
| AWG | No./mm | mm | mm | mm | mm | No./mm | mm | mm | kg/km | kg/km | kg/km |
| 3×8 | 7/1.23 | 3.69 | 1.14 | 5.97 | 0.7 | 65/0.41 | 1.14 | 16.59×10.62 | 396 | 227 | 233 |
| 3×6 | 7/1.55 | 4.65 | 1.14 | 6.93 | 0.7 | 65/0.52 | 1.14 | 18.73×11.80 | 551 | 297 | 307 |
| 3×4 | 7/1.96 | 4.98 | 1.14 | 8.16 | 0.7 | 65/0.65 | 1.52 | 22.21×14.05 | 830 | 427 | 443 |
| 3×2 | 7/2.47 | 7.41 | 1.14 | 9.69 | 0.7 | 65/0.83 | 1.52 | 25.63×15.94 | 1233 | 587 | 613 |
Packing
These products are popular in With rich manufacturing experience, we would like to provide you them very much. Any demand can feel free to contact us. Welcome to visit our factory
We are China Multiple Conductor Concentric Cable 3 Cores 4 AWG 6 AWG 8 AWG For Transmission manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: aluminum conductor cable, Concentric Cable, concentric neutral cableSimilar Or Related
