Multi Size Water Resistant Electrical Wire Rubber Sheath ISO CCC Certification

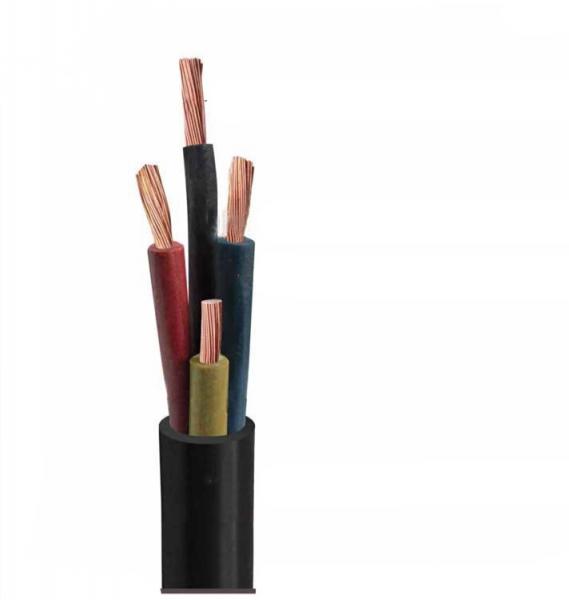

Multi Size Water Resistant Electrical Wire Rubber Sheath ISO CCC Certification image
Brand Name :
Huanghe
Model Number :
Rubber Cable
Certification :
ISO,CCC,OHSMS
Place of Origin :
China
MOQ :
100 Meters
Price :
0.1-200 USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 Meters Per Week
Packaging Details :
Wooden Drum
Conductor :
Copper
Sheathed :
Rubber
Insulation Material :
Rubber
Application :
Industrial
Rated voltage :
300,450,500,750
Sectional Area :
10mm2-185mm2
Cores :
Single,Multi-Cores
Standard :
IEC,BS,ASTM
Multi Size Water Resistant Electrical Wire Rubber Sheath ISO CCC Certification
Product Parameters:
Category: Rubber Sheath Flexible Cable For Communication
Model: YH/YHF/YQ,YZ,YC
Specifications :0.75-120mm2
Working Temperature: 65℃
Rated Voltage: 300V,450V,500V,750V
Conductor: Bare Copper/Tinned Copper
Insulation: Rubber
Application:
Suitable for hot environment such as generating electricity, metallurgy and chemical industry.
To connect the removable electrical equipment .
High temperature resistance, Low temperature resistance, Flexible and Corrosion resistance.
|
Core numbers |
Wire core of |
Insulator |
Normal insulated |
Outer diam |
Outer diam |
Conductor resistance at 20 |
|
|
Cu core |
Tinning cu-core |
||||||
|
2×0.75 |
24/0.20 |
0.6 |
0.8 |
6.28 |
7.22 |
26 |
26.7 |
|
2×1.. |
32/0.20 |
0.6 |
0.9 |
6.84 |
7.87 |
19.5 |
20 |
|
2×1.5 |
30/0.25 |
0.7 |
1 |
8 |
9.2 |
13.3 |
13.7 |
|
2×2.5 |
49/0.25 |
0.8 |
1.1 |
9.2 |
10.58 |
7.98 |
8.21 |
|
3×0.75 |
24/0.20 |
0.6 |
0.9 |
6.84 |
7.87 |
26 |
26.7 |
|
3×1.00 |
32/0.20 |
0.6 |
0.9 |
7.23 |
8.31 |
19.5 |
20 |
|
3×1.5 |
30/0.25 |
0.7 |
1 |
8.46 |
9.73 |
13.3 |
13.7 |
|
3×2.5 |
49/0.25 |
0.8 |
1.1 |
9.96 |
11.45 |
7.98 |
8.21 |
|
4×0.75 |
24/0.20 |
0.6 |
0.9 |
7.48 |
8.58 |
26 |
26.7 |
|
4×1.00 |
32/0.20 |
0.6 |
0.9 |
7.88 |
9.06 |
19.5 |
20 |
|
4×1.5 |
30/0.25 |
0.7 |
1 |
9.44 |
10.86 |
13.3 |
13.7 |
|
4×2.5 |
49/0.25 |
0.8 |
1.2 |
11.09 |
12.75 |
7.98 |
8.21 |
|
2×4 |
56/0.30 |
1 |
1.8 |
12.8 |
14.72 |
4.95 |
5.09 |
|
2×6 |
84/0.30 |
1 |
2 |
15.2 |
17.48 |
3.3 |
3.39 |
|
2×10 |
84/0.40 |
1.2 |
3.1 |
20.2 |
23.23 |
1.91 |
1.95 |
|
2×16 |
126/0.40 |
1.2 |
3.3 |
22.8 |
26.22 |
1.21 |
1.24 |
|
2×25 |
196/0.40 |
1.4 |
3.6 |
27 |
31.05 |
0.78 |
0.795 |
|
2×35 |
276/0.40 |
1.4 |
3.9 |
30.4 |
34.96 |
0.554 |
0.565 |
|
3×4 |
56/0.30 |
1 |
1.9 |
13.7 |
15.75 |
4.95 |
5.09 |
|
3×6 |
84/0.30 |
1 |
2.1 |
16.3 |
18.74 |
3.3 |
3.39 |
|
Luoyang ErLan Electrical Cable Co., Ltd. Price List (Household wire) |
Currency: CNY |
unit: Hundred meter |
||
|
specification |
YZ 2core |
YZ 3core |
YZ 3+1core |
YZ 3+2core |
|
0.5 |
81.4 |
/ |
/ |
/ |
|
0.75 |
124.3 |
/ |
/ |
/ |
|
1 |
135.6 |
/ |
/ |
/ |
|
1.5 |
198.9 |
268.9 |
/ |
/ |
|
2.5 |
310.8 |
436.2 |
550.3 |
/ |
|
4 |
511.9 |
707.4 |
830.6 |
921.0 |
|
6 |
/ |
1083.7 |
1247.5 |
1330.0 |
|
10 |
/ |
1828.3 |
2006.9 |
2245.3 |
|
16 |
/ |
2800.1 |
3062.3 |
3410.3 |
|
25 |
/ |
4194.6 |
4777.6 |
5295.2 |
Rubber Sheath PVC Insulated Flexible Rubber Cable
4 cores 16sqmm 450/750V Flexible Rubber Cable
1.Electrical cable comply with the national standard, application in construction, made by copper , rubber insulated.
2. Flexible Rubber Cablerated voltage 450/750V maximum direct current resistance of the con duc tor at 20.C and current carrying capacity below environmental temperature 40.C
3. Flexible Rubber Cable Specification:
|
cross-section (mm2) |
1.5 |
2.5 |
4 |
6 |
10 |
16 |
25 |
35 |
50 |
70 |
95 |
120 |
150 |
185 |
240 |
|
Max.DC resistance at 20°C |
13.3 |
7.98 |
4.95 |
3.3 |
1.91 |
1.21 |
O.78 |
O.55 |
O.39 |
O.27 |
O.21 |
O.16 |
O.13 |
O.11 |
O.08 |
|
Current carrying capacity |
14 |
20 |
27 |
34 |
48 |
67 |
92 |
115 |
141 |
180 |
225 |
264 |
312 |
359 |
440 |
|
Number of wirexNominal cross sectional area (mm) |
Outer diameter of cable, approx (mm) |
Weight of cable, approx Kg/Km |
Number of f ewirex Nominal cross sectional area (mm) |
Outer diameter of cable, approx (mm) |
Weight of cable, approx Kg/Km |
|
3×4+6×1.5 |
6.5×45.5 |
525 |
3×50+1×16+5×2.5+ 2×p1.5 |
17.5×76.5 |
2932 |
|
3×6+6×1.5 |
7.8×54.2 |
736 |
3×70+1×25+5×2.5+ 2×p1.5 |
19.8×86 |
3895 |
|
6×10+6×2.5 |
11×71.2 |
1500 |
3×95+1×35+5×2.5+ 2×p1.5 |
22.8×99 |
5124 |
|
3×10+3×6+3×4+5×2.5 |
19.7X68.7 |
2076 |
3×120+1×35+5×2.5+2×p1.5 |
25.8×112 |
6450 |
|
6×16+6×2.5 |
22.7×64.6 |
2378 |
3×120+1×35+4×4 |
25.8×112 |
6428 |
|
6×25+6×2.5 |
15.6×92.4 |
2723 |
3×120+2×16+4×4 |
28.1×99.4 |
6031 |
|
3×25+1×10+5×2.5+2xpl.5 |
14.6×63 |
1859 |
3×150+1×50+5×2.5+2×p1.5 |
27.6×121 |
7741 |
|
3×35+1×10+5×2.5+2xpl.5 |
14.7×63.5 |
2040 |
3×150+1×50+4×4 |
27.6×121 |
7723 |
|
Conductor working temperature(°C) |
EnvironmentaI ternperature(Laid.n air+40°C) |
|||||||||
|
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
|
|
60 |
1.66 |
1.58 |
1.50 |
1.41 |
1.32 |
1.22 |
1.11 |
1.00 |
0.86 |
0.73 |
|
65 |
1.55 |
1.48 |
1.41 |
1.34 |
1.26 |
1.18 |
1.09 |
1.00 |
0.89 |
0.77 |
|
70 |
1.47 |
1.41 |
1.35 |
1.29 |
1.22 |
1.15 |
1.08 |
1.00 |
0.91 |
0.81 |
|
80 |
1.37 |
1.32 |
1.27 |
1.22 |
1.17 |
1.11 |
1.06 |
1.00 |
0.93 |
0.88 |
|
90 |
1.30 |
1.26 |
1.22 |
1.18 |
1.14 |
1.09 |
1.04 |
1.00 |
0.94 |
O.8 |
We are China Multi Size Water Resistant Electrical Wire Rubber Sheath ISO CCC Certification manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
