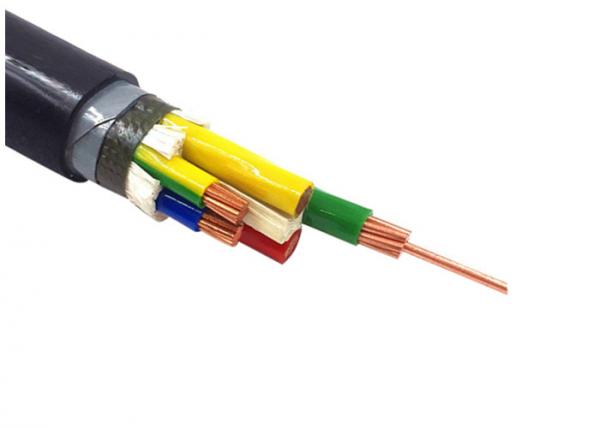

Multi Cores PVC Electrical Cable 600 / 1000 V Flame Retardant For Laying Indoors Outdoors

Multi Cores PVC Electrical Cable 600 / 1000 V Flame Retardant For Laying Indoors Outdoors image

Get a Quote Email to us

Brand Name :
HOLD-ONE

Certification :
IEC,KEMA,ISO,VDE,UL

Place of Origin :
China

MOQ :
500 meter

Price :
US$1.67~56.85/M

Payment Terms :
L/C, T/T

Supply Ability :
5000 Kilometer per Month

Delivery Time :
7-15 days

Packaging Details :
Steel Wooden Drum

Cores :
4

Size :
2.5sqmm~630sqmm

Conductor Type :
Copper

Insulation Color :
Red,Yellow,Blue,Green

Rated Voltage :
600/1000V

Sheath color :
Black or As Per Request

Packing :
Steel Wooden Drum

Multi Cores 0.6/1kV PVC Insulated Coper Power Cable Power Transmission Cable

Applications

Used for Power transmission and distribution line with voltage rated at 35kv and below.

For laying indoors and outdoors.Able to bear certain traction during installation, but not external mechanical forces.

Properties

High insulation, excellent properties, bright colour.

Type: PVC Insulated Electric Cable

Conductor: Copper or Aluminum
Insulation: Polyvinyl chloride (PVC)
Filler: Polypropylene tape (pp tape)
Wrap Tape: Non-woven fabric or PP wrapping tape
Armour: STA/SWA/AWA Armoured or Unarmoured
Outer Sheath: Polyvinyl chloride (PVC)
Standards: CCC/UL/CE Certificate

Cable with a PVC insulation or sheathing is flame retardant, which is an important consideration for electric cables in most applications. PVC can be made resistant to a wide range of chemicals including oils, acids and alkalis, and is tough, durable and resistant to abrasion. The addition of various additives can improve its temperature range, typically from -40 to 105°C, as well as the resistance to sunlight, reduced smoke emission and improved water resistance.

Technical Parameters:

Cross Section	Conductor	Conductor Screen	Insulation	Insulation Screen	Metallic Screen	Inner Sheath	Armour	Screen Layer No.	Outer Sheath	Overall Diameter	Copper Cable	Aluminum Cable
mm2	mm	mm	mm	mm	mm	mm	mm		mm	mm	kg/km	kg/km
50	8.4	0.8	10.5	0.8	0.1	2.0	0.8	2	4	86	8906	7997
70	10	0.8	10.5	0.8	0.1	2.1	0.8	2	4	90	9944	8671
95	11.5	0.8	10.5	0.8	0.1	2.1	0.8	2	4	94	11112	9375
120	13	0.8	10.5	0.8	0.1	2.2	0.8	2	4	97	12253	10059
150	14.5	0.8	10.5	0.8	0.1	2.3	0.8	2	4	101	13557	10800
185	16.2	0.8	10.5	0.8	0.1	2.3	0.8	2	4	105	15059	11645
240	18.4	0.8	10.5	0.8	0.1	2.4	0.8	2	4	110	17249	12837
300	20.5	0.8	10.5	0.8	0.1	2.5	0.8	2	5	115	19603	14061
400	23.5	0.8	10.5	0.8	0.1	2.6	0.8	2	5	122	23151	15874
500	26.5	0.8	10.5	0.8	0.1	2.8	0.8	2	5	129	27045	17807

We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
