Multi Cores Al-foil Screen PVC Sheathed Control Wire Tinned Copper Wire Brain Screened Cable

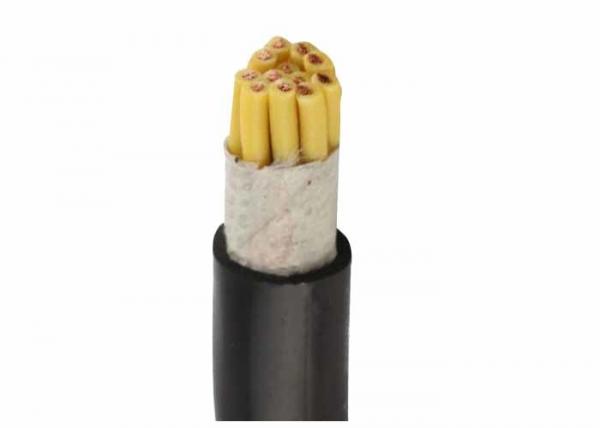

Multi Cores Al-foil Screen PVC Sheathed Control Wire Tinned Copper Wire Brain Screened Cable image
Brand Name :
SHAN CABLE
Model Number :
KVVP3 KVVP
Certification :
CE/KEMA/CCC
Place of Origin :
SHANGHAI CHINA
MOQ :
2000m
Price :
0.5-33.5 $/M
Supply Ability :
40KM per Week
Delivery Time :
2 weeks
Packaging Details :
Wooden Steel Drum
Core :
2 to 61
Screen :
Al-foil or Tinned Copper Wire Brain Double Screen
Color :
Black
Crosssection :
2.5mm2 to 10mm2
Conductor type :
Class 1 or Class 2
Drain Wire :
Copper Wire or Tinned Copper Wire
Conductor :
Copper
Multi Cores Al-foil Screen PVC Sheathed Control Cable Tinned Copper Wire Brain Screened Cable
Construction
Conductor: Solid or Stranded or Flexible Copper Conductor
Insualtion: PVC
Screen: Al-foil Screen with Tinned Drain Wire or Tinned Copper Wire Brain Screen.
Sheath: PVC
Application
For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750V.
Why Choose Screen Control Cable
Reduce the impact of external current transmission, Keep safe and Correctly.
Standard
IEC Standard: IEC 60227, IEC60228
China Standard: GB9330
Other standards such as BS,DIN and ICEA upon request
Certificates
CE, RoHS, CCC, KEMA and more others at request
Operating characteristics
Rated voltages U0/U: 450/750V
Permissible Max. continuous operating temperature of conductor:
PVC insulated: 70°C
Upon short circuit (Max. Duration time 5s) the Max.
temperature of conductor not higher than:
PVC insulated: 160°C;
Ambient temperature of installation not less than 0°C.
Brain density:≥80%
| Cross-Sectional Area mm2 |
Thickness of Insulation mm |
Thickness of mm |
Thickness of Sheath mm |
Overall Diameter mm |
Min resistance of insulation at 70℃ MΩ/km |
Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|
| min | max | |||||||
| 4×2.5 | 0.8 | 0.3 | 1.5 | 13.4 | 16.1 | 0.001 | 7.98 | 450 |
| 4×4 | 0.8 | 0.3 | 1.5 | 14.4 | 17.4 | 0.0085 | 4.95 | 505 |
| 4×6 | 0.8 | 0.3 | 1.5 | 15.6 | 18.8 | 0.007 | 3.3 | 619 |
| 4×10 | 1 | 0.3 | 1.7 | 19.4 | 23.5 | 0.0065 | 1.91 | 947 |
| 5×2.5 | 0.8 | 0.3 | 1.5 | 14.3 | 17.2 | 0.001 | 7.98 | 506 |
| 5×4 | 0.8 | 0.3 | 1.5 | 15.4 | 18.6 | 0.0085 | 4.95 | 586 |
| 5×6 | 0.8 | 0.3 | 1.7 | 16.7 | 20.2 | 0.007 | 3.3 | 737 |
| 5×10 | 1 | 0.3 | 1.7 | 21 | 25.4 | 0.0065 | 1.91 | 1125 |
| 7×0.75 | 0.6 | 0.3 | 1.5 | 11.8 | 14.2 | 0.012 | 26 | 317 |
| 7×1.0 | 0.6 | 0.3 | 1.5 | 12.2 | 14.7 | 0.011 | 19.5 | 425 |
| 7×2.5 | 0.7 | 0.3 | 1.5 | 13.5 | 16.3 | 0.01 | 7.98 | 554 |
| 7×4 | 0.8 | 0.3 | 1.5 | 15.2 | 18.4 | 0.0085 | 4.95 | 701 |
| 7×6 | 0.8 | 0.3 | 1.7 | 18 | 21.7 | 0.007 | 3.30 | 900 |
| 7×10 | 1 | 0.3 | 1.7 | 22.7 | 27.4 | 0.0065 | 1.91 | 1397 |
| 10×0.75 | 0.6 | 0.3 | 1.5 | 13.8 | 16.7 | 0.012 | 26 | 449 |
| 10×1 | 0.6 | 0.3 | 1.5 | 14.4 | 17.4 | 0.011 | 19.5 | 558 |
| 10×1.5 | 0.7 | 0.3 | 1.5 | 16.1 | 19.5 | 0.011 | 13.3 | 753 |
| 10×2.5 | 0.8 | 0.3 | 1.7 | 18.8 | 22.7 | 0.01 | 7.98 | 956 |
| 10×4 | 0.8 | 0.3 | 1.7 | 20.5 | 24.8 | 0.0085 | 4.95 | 1203 |
| 10×6 | 0.8 | 0.3 | 1.7 | 22.5 | 27.1 | 0.007 | 3.3 | 1534 |
Company Committment
Here's Shanghai Shenghua Cable Is Committed to Offer for Every Customer:
High quality cable product with competitive price;
OEM cable product
Custom design per specific cable requirements and budgets;
Fast and on-time delivery of cable;
Flexible business deal;
Chief cable engineer with over 40 years' experience;
Harmonious colleague and customer relationship;
All cable products 100% Inspection;
Comprehensive after-sale service.
We are China Multi Cores Al-foil Screen PVC Sheathed Control Wire Tinned Copper Wire Brain Screened Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
