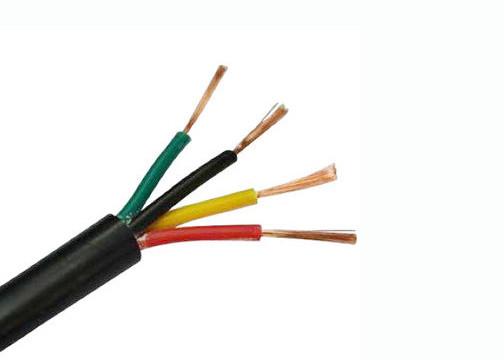

Multi Core Flexible Electrical Copper Conductor Cable IEC CE RoHS Approved
Multi Core Flexible Electrical Copper Conductor Cable IEC CE RoHS Approved image
Brand Name :
CTT cable
Model Number :
RVVB 2 4
Certification :
IEC, CE, RoHS，ISO
Place of Origin :
Shenzhen,China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
7/ 15 working days
Packaging Details :
Coil in foil (100 m)
Name :
Copper Building Wire
No. Of Conductor :
Two Cores
Size :
4 Mm
Cable Shape :
Round
Insulation :
PVC Compound with Mica Layer
Type :
Coppe Electrical Cable
300 / 500V H05VV-F Flat Multi Core Flexible Copper Conductor Electrical Cable
Application:
Exposed wiring in air or in raceway, wet or dry location and used for mobile electrical equipment
Product Specification:
|
Nominal cross sectional Area (mm²) |
Upper limit of average outer diameter (mm) |
Maximum DC resistance at 20 ℃ (Ω/km) |
Approximate carrying capacity (A) |
Reference weight (Kg/km) |
| 2×0.75 | 4.2*8.4 | 26.0 | 13.0 | 45.0 |
| 2×1.0 | 4.3*8.6 | 19.5 | 20.0 | 65.0 |
| 2×1.5 | 4.8*9.6 | 13.3 | 25.4 | 65.0 |
| 2×2.5 | 5.4*10.8 | 7.98 | 34.5 | 88.0 |
| 2×4 | 6.2*12.4 | 4.95 | 44.5 | 137.0 |
| 2×6 | 7.0*14.0 | 3.30 | 53.0 | 188.0 |
* The ampacity of cable will be directly affected by the lay-out methods and the ambient temperature.
Features:
| Permissible operating temperature at conductor | +70℃ | |
| Short circuit temperature (duration max. 5 s) | 160℃ | |
| Minimum installation temperature | Should not be lower than 0 ℃ | |
| Max. Conductor permissible tensile stress | 50 N/mm ² | |
| Minimum bending radius | 15 × cable Ø | |
Advantage:
It has the advantages of acid and alkali resistance, oil resistance, moisture-proof, mildew resistance, etc
Product introduction:
Place of Origin: China Mainland
Brand Name: Shenzhen Chentiantai Cable
Certification: CE, CB, CCC
Model Number : RVVB
Minimum Order : 100 Unit
Price : On Request
No. Of Conductor: Two Cores
Outer Shape: Flat
Conductor: Flexible Conductor
Insulation: PVC Compound
Sheath: PVC Compound
Other Information:
Packaging Details: Coil in foil
Delivery Time: 15 working days
Payment Terms : L/C, T/T
| CUSTOMER SERVICES | Did you know? |
|
We manufactures a comprehensive array of wires and cables to meet diverse market needs. We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have. Head office: Chentiantai Industrial Park, Lisonglang community , Gongming office, Guangming district , Shenzhen P.R. China 518106 |
. Shenzhen Chengtiantai Cable operates certified management systems compliant with: ISO 9001:2008/ ISO14001:2004/OHSAS 18001 : 2007 . Cable production started 1983 . 35 years of cable manufacturing experience ·Sales in 2016 about 500 million USD .100,000m² production area .350 will-trained employees .8 workshops .1 R&D Center |
Because we continuously improve our products, CTT Cable reserves the right to change specifications and availability without prior notice.
