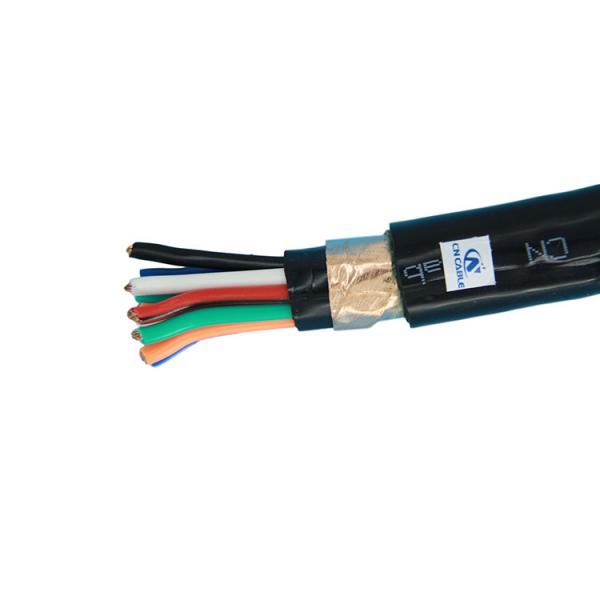

Multi Core Copper Tape Shield PVC Sheathed Cables Annealed

Multi Core Copper Tape Shield PVC Sheathed Cables Annealed image

Get a Quote Email to us

Model Number :CVV-S Cable

Certification :ISO9001, CE

Place of Origin :Henan, China

MOQ :500m

Price :$1.00 – $20.00/ Meter

Payment Terms :L/C, T/T, Western Union

Supply Ability :20 Kilometer/Kilometers per Day

Delivery Time :1-4 weeks

Packaging Details :Roll/Wooden Reel/Iron-wooden Reel/Steel Reel

Conductor :Annealed or tinned copper wire, solid ,stranded or flexible as per IEC60228

Insulation :PVC/XLPE/Rubber/Silicon

Metallic Shield :Copper tape/Annealed or tinned Copper wire braiding/Al-polyester tape

Armor (optional) :Steel tape or Steel wire

Outer sheath :PVC/PE/Rubber

Cores :Multi Core

600/1000V PVC Insulated PVC Sheathed Control Cables Type CVV-S Cable With Copper Tape Shield

Product Description

1.Application

2.Applicable Standard

3.Cable Structure:

Copper Conductor, PVC Insulation PVC Sheath, Copper Tape Shielded Control Cable

Cable Size	Conductor		Nominal Insulation thickness	Copper Tape Thickness Min.	Nominal Jacket thickness	Approx. Overall Dia.	Approx. Cable Weight
Core x Cross-Section	Stranding No.	Approx. Stranded Dia.	Nominal Insulation thickness	Copper Tape Thickness Min.	Nominal Jacket thickness	Approx. Overall Dia.	Approx. Cable Weight
6*2.5	7	2.0	0.8	0.05	1.5	17.0	422
7*2.5	7	2.0	0.8	0.05	1.5	17.0	439
8*2.5	7	2.0	0.8	0.05	1.5	18.6	517
10*2.5	7	2.0	0.8	0.05	1.5	20.7	604
12*2.5	7	2.0	0.8	0.05	1.5	21.3	678
14*2.5	7	2.0	0.8	0.05	1.5	22.2	749
16*2.5	7	2.0	0.8	0.05	1.7	23.6	852
19*2.5	7	2.0	0.8	0.05	1.7	24.8	971
24*2.5	7	2.0	0.8	0.05	1.7	28.4	1194
27*2.5	7	2.0	0.8	0.05	1.7	29.0	1304
30*2.5	7	2.0	0.8	0.05	1.7	30.0	1420
37*2.5	7	2.0	0.8	0.05	1.7	32.1	1687
44*2.5	7	2.0	0.8	0.05	2.0	36.4	2028
48*2.5	7	2.0	0.8	0.05	2.0	37.0	2172
52*2.5	7	2.0	0.8	0.05	2.0	37.9	2322
61*2.5	7	2.0	0.8	0.05	2.2	40.5	2697
4*4	7	2.5	0.8	0.05	1.2	15.5	380
5*4	7	2.5	0.8	0.05	1.5	17.3	471
6*4	7	2.5	0.8	0.05	1.5	18.6	545
7*4	7	2.5	0.8	0.05	1.5	18.6	573
8*4	7	2.5	0.8	0.05	1.5	20.5	678
10*4	7	2.5	0.8	0.05	1.7	23.2	817
12*4	7	2.5	0.8	0.05	1.7	23.9	924
14*4	7	2.5	0.8	0.05	1.7	25.0	1028
16*4	7	2.5	0.8	0.05	1.7	26.2	1145
19*4	7	2.5	0.8	0.05	1.7	27.5	1313
24*4	7	2.5	0.8	0.05	1.7	31.7	1624
27*4	7	2.5	0.8	0.05	1.7	32.3	1782
30*4	7	2.5	0.8	0.05	2.0	34.0	1993
37*4	7	2.5	0.8	0.05	2.0	36.5	2380
44*4	7	2.5	0.8	0.05	2.2	41.1	2833
48*4	7	2.5	0.8	0.05	2.2	41.8	3042
52*4	7	2.5	0.8	0.05	2.2	42.9	3259
61*4	7	2.5	0.8	0.05	2.2	45.4	3747

Packing&Shipping

Packing material:

Coil (For small size & short length), Wooden Drum, Iron-Wooden Drum, Steel Drum.

Shipping:

Loading port from Qingdao or Shanghai, 12-24 hours from facotry to sea port.

We are China Multi Core Copper Tape Shield PVC Sheathed Cables Annealed manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
