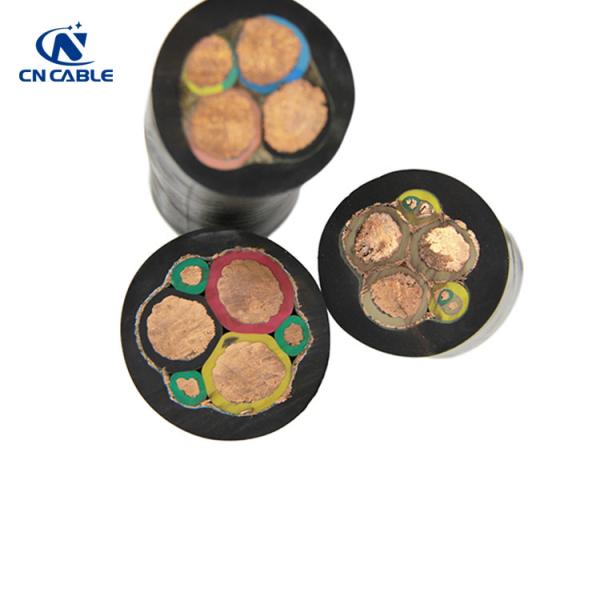

Mining 2000v Special Cables Type W Portable Power Cable
Mining 2000v Special Cables Type W Portable Power Cable image
Model Number :type w power cable
Certification :ISO9001, CE
Place of Origin :Henan, China
MOQ :1000m
Price :$0.3 – $20/ Meter
Payment Terms :L/C, T/T, Western Union
Delivery Time :1-4 weeks
Packaging Details :Roll/Wooden Reel/Iron-wooden Reel/Steel Reel
Name :Type W Portable Power Cable
Conductor :bare copper flexible rope-lay-stranded
Insulation :Colour coded synthetic rubber
Jacket :Extra hard usage black, oil and weather resistant CPE
Temperature :-40°C to +90°C
Type :Special Cables
Max. Voltage :600/2000V
Mining 2000v Special Cables Type W Portable Power Cable
1. Type W Portable Power Cable Application
2. Type W Portable Power Cable Standard

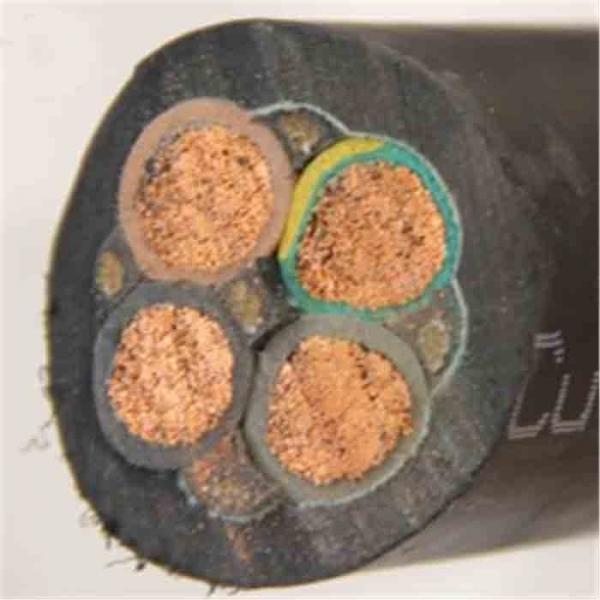

3. Type W Portable Power Cable Construction:
Insulation: Colour coded synthetic rubber
4. Data sheet
| Cond. Size | # of Cond. | Cond. Strand | Nom. Insul. Thickness (Inches) | Nom. O. D. (Inches) | AMPS* |
| 8 | 2 | 133 | 0.060 | 0.77 | 74 |
| 6 | 2 | 259 | 0.060 | 0.91 | 99 |
| 4 | 2 | 259 | 0.060 | 1.02 | 130 |
| 2 | 2 | 259 | 0.080 | 1.21 | 174 |
| 1 | 2 | 259 | 0.080 | 1.44 | 202 |
| 1/0 | 2 | 259 | 0.080 | 1.435 | 234 |
| 2/0 | 2 | 259 | 0.080 | 1.65 | 271 |
| 3/0 | 2 | 259 | 0.080 | 1.77 | 313 |
| 4/0 | 2 | 259 | 0.080 | 1.92 | 361 |
| 8 | 3 | 133 | 0.060 | 0.96 | 74 |
| 6 | 3 | 259 | 0.060 | 1.03 | 99 |
| 4 | 3 | 259 | 0.060 | 1.14 | 130 |
| 2 | 3 | 259 | 0.060 | 1.29 | 174 |
| 1 | 3 | 259 | 0.060 | 1.46 | 202 |
| 1/0 | 3 | 266 | 0.080 | 1.59 | 234 |
| 2/0 | 3 | 342 | 0.080 | 1.69 | 271 |
| 3/0 | 3 | 418 | 0.080 | 1.81 | 313 |
| 4/0 | 3 | 532 | 0.080 | 1.96 | 361 |
| 250 | 3 | 627 | 0.095 | 2.29 | 402 |
| 350 | 3 | 888 | 0.095 | 2.57 | 495 |
| 500 | 3 | 1221 | 0.095 | 2.90 | 613 |
| 8 | 4 | 133 | 0.060 | 0.98 | 65 |
| 6 | 4 | 259 | 0.060 | 1.10 | 87 |
| 4 | 4 | 259 | 0.060 | 1.22 | 114 |
| 2 | 4 | 259 | 0.060 | 1.44 | 152 |
| 1 | 4 | 259 | 0.060 | 1.59 | 177 |
| 1/0 | 4 | 266 | 0.080 | 1.70 | 205 |
| 2/0 | 4 | 342 | 0.080 | 1.85 | 237 |
| 3/0 | 4 | 418 | 0.080 | 1.96 | 274 |
| 4/0 | 4 | 532 | 0.080 | 2.15 | 316 |
| 8 | 5 | 133 | 0.060 | 1.03 | 52 |
| 6 | 5 | 259 | 0.060 | 1.20 | 70 |
| 4 | 5 | 259 | 0.060 | 1.37 | 91 |
| 2 | 5 | 259 | 0.060 | 1.56 | 122 |
| 1/0 | 5 | 266 | 0.080 | 1.94 | 164 |
Packing material:
Coil (For small size & short length), Wooden Drum, Iron-Wooden Drum, Steel Drum.
Shipping:
Loading port from Qingdao or Shanghai, 12-24 hours from facotry to sea port.
We are China Mining 2000v Special Cables Type W Portable Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 2000V Special Cables, 2000V Type W Portable Power Cable, Mining Type W Portable Power Cable, Special CablesSimilar Or Related
