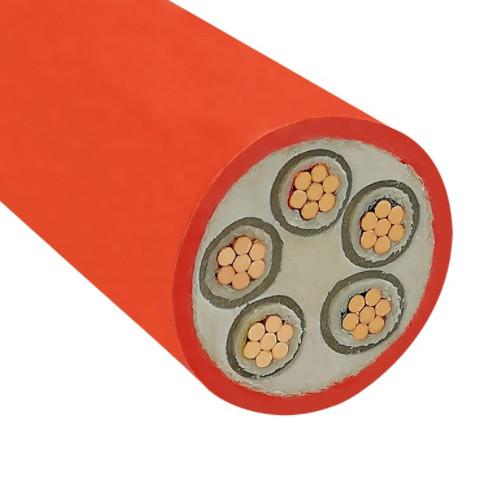

Mineral Insulated 5 Core Heat Resistant Cable Low Smoke Zero Halogen Wire
Mineral Insulated 5 Core Heat Resistant Cable Low Smoke Zero Halogen Wire image
Brand Name :
Huanghe
Model Number :
BTTQ BTTZ
Certification :
ISO OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Price :
1-10USD
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
wooden drum
Usage :
School and hospital
Material :
Copper
Service :
20-100 years
Sample :
Supply free sample
Sheath material(1) :
601,INCL600
Standard :
GB/T 18380 IEC 60332-3 BS6387, ANSI, IEC584
Product name :
Mi thermocouple cable, 4 Core MI cable Copper Sheathed Mineral Insulated Cable
Mineral Insulated 5 Core Heat Resistant Cable Low Smoke Zero Halogen Wire
25mm2 5core isolated flexible mineral insulated fire resistance cable is a power cable that is difficult to catch fire and has the ability to prevent or delay the spread of flame and can still maintain line integrity under flame combustion at specified temperature and time.
I. Product Structure
The main structure of isolated flexible mineral insulated fire resistance power cable contains stranded copper conductor, compound insulation, metallic sheath, separation sleeve, isolation layer filling material, core wrap and friendly LSZH outer sheath.
II. Product Features
Fire resistance:
1) Under 950 ° C flame continuous power for 180 min without breakdown
2) After 15 minutes at 650 ° C, it will withstand 15 minutes of water spray without breakdown.
3) Withstand a 15min tapping vibration under 950°C flame without breakdown
No intermediate connector:
Flexible mineral insulated fire-resistant cables can be customized according to user requirements without intermediate joints. Reduce the cost of the joint and improve the stability of the cable.
Short delivery period:
With advanced manufacturing processes and short lead times, the usual models can be delivered in 7 working days.
Voltage level:
Flexible mineral insulated fire-resistant cables can have a voltage rating of 0.6/1kV.
Anti-rat ants:
Flexible mineral insulated fire-resistant cables can be continuously produced without joints and have anti-rat properties.
Softness:
Flexible mineral insulated fire-resistant cables use stranded conductors and jackets are made of non-metallic materials to make the cables softer and lighter.
Easy to install:
Flexible mineral insulated fire-resistant cables combined with traditional cable production techniques make cable more convenient for installation.
Low line loss and high current carrying capacity:
For cables of the same cross section, flexible mineral insulated fire resistant cables have higher currents than other types of cables and can withstand considerable overload. If the rated current is the same, the line loss is 7%~10% smaller than other cables.
Energy saving and environmental protection:
The flexible mineral insulated fire-resistant cable core has a lower operating temperature than other types of cables, so the line loss is low during operation, reducing energy waste, and the cable material is inorganic, which can meet environmental requirements.
Explosion-proof performance:
The highly compacted insulation material in the cable and no intermediate joints prevents steam, gas and flame from entering the electrical equipment connected to the cable, so it is suitable for use in explosion-prone areas and as a connection to various explosion-proof equipment and other facilities.
Radiation protection and safety:
Inorganic materials used in flexible mineral insulated fire-resistant cables are resistant to radiation. The cable can be guaranteed to have stability, long life and durability.
5 Core 25MM2 Isolated Mineral Insulated Fire Resistance Cable
|
Code |
Description |
Cores |
Nominal cross sectional area of conductor |
|
|
500 V |
750 V |
|||
|
BTTQ
BTTVQ
BTTYQ |
Light duty, Copper conductor, MgOinsulation, Copper sheath, (optional outer covering of PVC or LSZH), Mineral insulated cable |
2,3,4,7 |
1~4 mm² |
|
|
BTTZ
BTTVZ
BTTYZ |
Heavy duty, Copper conductor, MgOinsulation, Copper sheath, (optional outer covering of PVC or LSZH), Mineral insulated cable |
1,2,3,4,7,12,19 |
1.5~400 mm² |
|
5 Core 25MM2 Isolated Mineral Insulated Fire Resistance Cable
We are China Mineral Insulated 5 Core Heat Resistant Cable Low Smoke Zero Halogen Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
