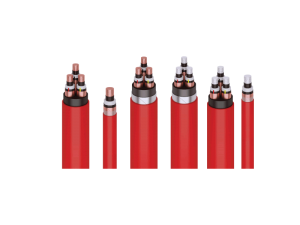

Medium Voltage Power CableMedium Voltage Power Cable

Voltage: 3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/30KV, 26/35KV Armoured:CWS, CTS, CTS/ATA, CTS/STA, SWA/GSW,AWA Sheath: PVC/PE, PVC, MDPE

APPLICATION

Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE material, firmly longitudinally spliced with conductor screen and insulation screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, electric power plants and industrial plants.

Get a Quote Email to us

CONSTRUCTION

1) Conductor : Copper or Aluminum,Class 1 or Class 2,solid or stranded Circular conductors
2) Conductor screen: semi-conducting compound
3) Insulation: Cross-linked polyethylene XLPE
4) Insulation screen: semi-conducting compound
5) Metallic screen: Copper tape or/and Copper wire
6) Over sheath: Polyvinyl chloride PVC or PE

ADDITIONAL STANDARDS

IEC, BS, ASTM, CAN-CSA, DIN, IS, AS and relevant national and international standards.

Medium Voltage Power Cable Specifications:

Get all the answers to the most frequently asked questions (FAQs) regarding Medium Voltage Power Cable chart,Medium Voltage Power Cable sizes,Medium Voltage Power Cable full form,Medium Voltage Power Cable ampacity,Medium Voltage Power Cable diameter,Medium Voltage Power Cable Manufacturer and much, much more.

Medium Voltage Power Cable manufactured by GE meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc

Few More thing you should know

MV cables manufactured for excellence

When purchasing medium-voltage cables, you want reliability and peak performance built-in. GE Cable offers an unrivalled portfolio of medium-voltage cables that are manufactured to the highest standards of quality. Our cables can also be tailor-made for more detailed specifications, as and when our customers need it.

Customer Cases

GE Cable Group owns 15 years of export experience. We export to many countries in the Middle Est, Africa, Asia Oceania, South America, North America and so on. .

FAST AND RELIABLE SERVICE FOR YOUR PROJECT

Contact our trained experts today to find your perfect power solution.

ASK A QUESTION

An integrated cable and wire solution provider,for the transmission and distribution of electricity that connect the world.
