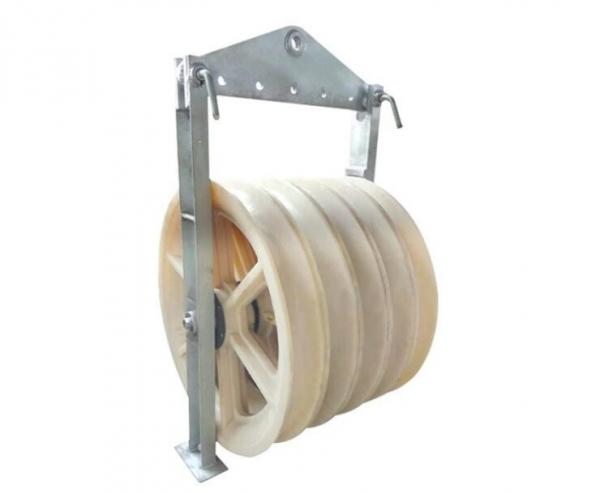

MC Nylon Wheels OPGW Wire Stringing Pulley Block With Galvanized Steel Frame
MC Nylon Wheels OPGW Wire Stringing Pulley Block With Galvanized Steel Frame image
Brand Name :
Suntech
Model Number :
822MM
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
1 pcs
Price :
Get the newest price
Payment Terms :
L/C , T/T, Western Union, MoneyGram
Supply Ability :
3000 pcs per month
Delivery Time :
20-25 days after Payment
Packaging Details :
Exported Cases or Containers
Material :
MC Wheel
Name :
Stringing Block Pulley
Size :
822X110mm
Application :
Transmission Line
Load Capacity :
20-190kn
Usage :
Overhead
822 Mm Large Diameter Mc Nylon Wheels Cable Stringing Nylon Pulley Block
822MM Overhead Power Line Conductor Stringing Blocks are used for transmisson line conductor or OPGW stringing. The conductor sheave is made in MC Nylon, it can be lined with neoprene, The central sheave can be made in steel.
Note:
1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).
2. The sheave size outer diameter X inner diameter X width: 822mm X 710mm X 110mm
Note:
1. Hook fitting, round eye fitting, and clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request.
The data in the model means the outer diameter of sheave X width of sheave (mm).
2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.

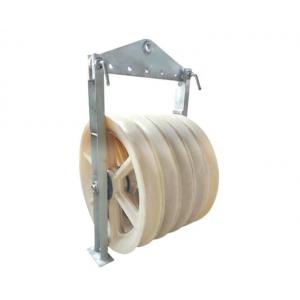

822MM Nylon Sheaves Conductor Stringing Blocks
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Conductor Sheave |
| 10141 | SHDN822 | 500-700 | 30 | 39 | Nylon, optional can be lined with neoprene |
| 10142 | SHSQN822 | 500-700 | 60 | 118 | |
| 10143 | SHWQN822 | 500-700 | 120 | 180 | |
| 10146 | SHQ822 | 500-700 | 120 | 285 | Central steel sheave |
| 10148 | SHJ822 | 500-700 | 150 | 445 |
Application: It is suitable to string single, two, four, SIX AND EIGHT stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in high strength nylon. All the sheaves are mounted on ball bearings, the central sheave is specially strengthened for passing of steel wire rope. The frame is made in galvanized steel.
We are China MC Nylon Wheels OPGW Wire Stringing Pulley Block With Galvanized Steel Frame manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
