MC Nylon Sheaves Conductor Stringing Blocks Transmission Line Construction

822 Mm Stringing Equipment Tools Stringing Block Five Wheels Conductor Pulley

822MM Overhead Power Line Conductor Stringing Blocks are used for transmisson line conductor or OPGW stringing. The conductor sheave is made in MC Nylon, it can be lined with neoprene, The central sheave can be made in steel.

Note:

1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).

2. The sheave size outer diameter X inner diameter X width: 822mm X 710mm X 110mm

Note:

1. Hook fitting, round eye fitting, and clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request.

The data in the model means the outer diameter of sheave X width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.

Test and Inspection:

1. More than 12 engineers carry the Strict inspection and test procedure under ISO9001 quality control system and National Standard.

2. Perfect Test facility include Test Tower, Tensile machines.

3. All the stringing blocks have been tested before ex-works

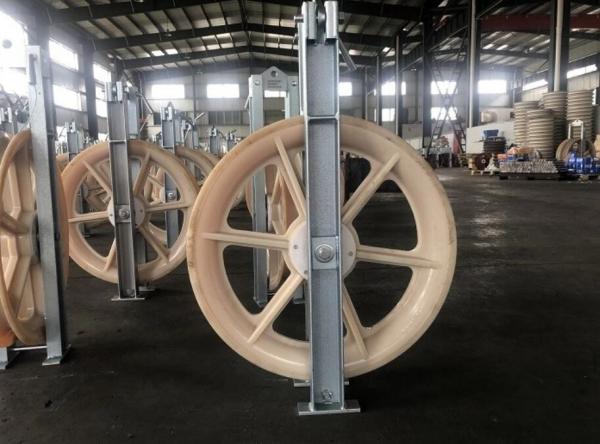

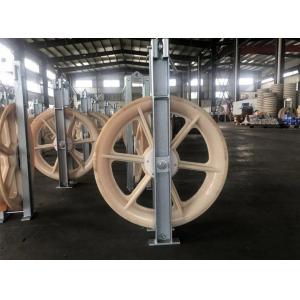

822MM Nylon Sheaves Conductor Stringing Blocks

Application: It is suitable to string single, two, four, SIX AND EIGHT stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in high strength nylon. All the sheaves are mounted on ball bearings, the central sheave is specially strengthened for passing of steel wire rope. The frame is made in galvanized steel.
