LV XLPE Electrical Cable polyvinyl chloride For Industrial Construction

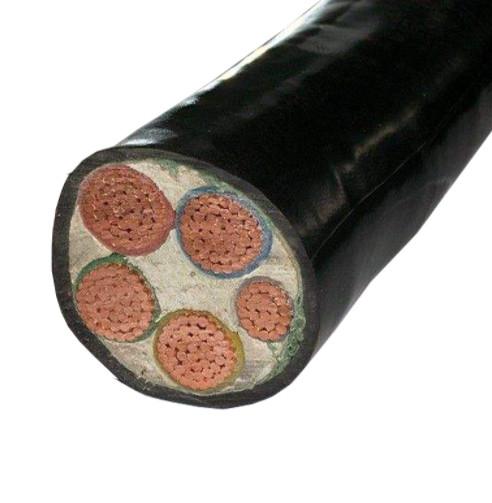

LV XLPE Electrical Cable polyvinyl chloride For Industrial Construction image
Brand Name :
Huanghe
Model Number :
YJV YJV32
Certification :
ISO OHSAS CCC
Place of Origin :
China
MOQ :
200
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000meters
Delivery Time :
5-8 days
Packaging Details :
Wooden drum
Conductor material :
copper/aluminium
Application :
Industrial,Underground,Construction
Type :
Low Voltage,Armoured Cable
Color :
Customized,Black
Sheath :
pvc
Feature :
power cables 5 core
LV XLPE Electrical Cable polyvinyl chloride For Industrial Construction
Constrution of XLPE Electrical Cable :
Conductor: Solid or stranded Copper
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)
Operating Features:
1. The maximum conductor operating temperature: 90°C
During short circuit (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250°C
Environment temperature should be no lower than 0°C for laying the cable.
2. Bending Radius of the Cable:
Single Core Cable: Non Armored Cable 20D, Armored Cable 15D
Cores Cable: Non Armored Cable 15D, Armored Cable 12D.
Remarks: D means practical external diameter of the cable
Low voltage Copper Aluminum conductor polyvinyl chloride XLPE Electrical Cable
| No.cores x cross-sec. |
Insulation thickness |
Sheath thickness Nominal value |
Outer Ø approx. |
weight approx. |
Current ratings in air 30℃ | Current ratings buried 20℃ | maximum DC resistance at 20℃ |
| mm2 | mm | mm | mm | kg/km | A | A | Ω/km |
| 1×1.5 | 0.7 | 1.4 | 5.8 | 45 | 32 | 43 | 12.1 |
| 1×2.5 | 0.7 | 1.4 | 6.2 | 57 | 42 | 57 | 7.41 |
| 1×4.0 | 0.7 | 1.4 | 6.7 | 75 | 56 | 74 | 4.61 |
| 1×6.0 | 0.7 | 1.4 | 7.2 | 97 | 70 | 93 | 3.08 |
| 1×10 | 0.7 | 1.4 | 8.2 | 142 | 97 | 127 | 1.83 |
| 1×16 | 0.7 | 1.4 | 9.2 | 205 | 125 | 167 | 1.15 |
| 1×25 | 0.9 | 1.4 | 10.8 | 304 | 165 | 216 | 0.73 |
| 1×35 | 0.9 | 1.4 | 11.8 | 403 | 200 | 261 | 0.52 |
| 1×50 | 1.0 | 1.4 | 13.3 | 555 | 245 | 311 | 0.39 |
| 1×70 | 1.1 | 1.4 | 15.3 | 756 | 305 | 388 | 0.27 |
| 1×95 | 1.1 | 1.5 | 17.1 | 1005 | 375 | 461 | 0.19 |
| 1×120 | 1.2 | 1.5 | 18.7 | 1250 | 435 | 527 | 0.15 |
| 1×150 | 1.4 | 1.6 | 20.9 | 1561 | 500 | 592 | 0.12 |
| 1×185 | 1.6 | 1.6 | 22.9 | 1910 | 580 | 671 | 0.10 |
| 1×240 | 1.7 | 1.7 | 25.5 | 2453 | 685 | 781 | 0.08 |
| 1×300 | 1.8 | 1.8 | 28.2 | 3044 | 795 | 886 | 0.06 |
| 1×400 | 2.0 | 2.0 | 32.0 | 4024 | 930 | 1019 | 0.05 |
| 1×500 | 2.2 | 2.2 | 35.4 | 5006 | 1080 | 1170 | 0.04 |
Low voltage Copper Aluminum conductor polyvinyl chloride XLPE Electrical Cable
We are China LV XLPE Electrical Cable polyvinyl chloride For Industrial Construction manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
