LV PVC insulated PVC sheath fire-resistance control cable

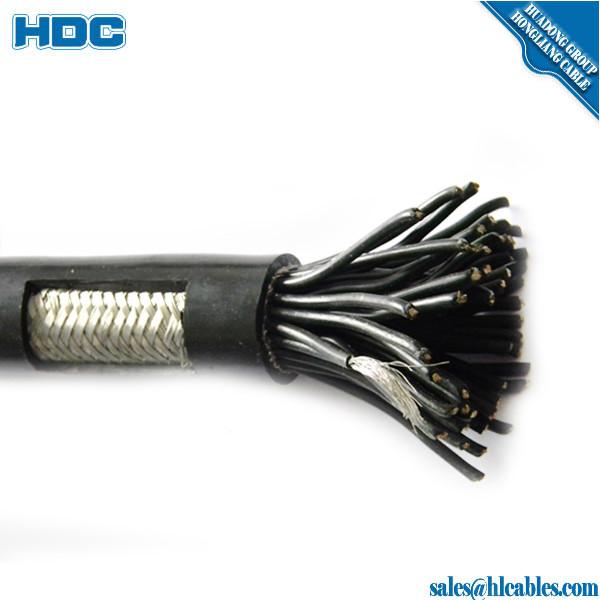

LV PVC insulated PVC sheath fire-resistance control cable image
Brand Name :
huadong cable
Model Number :
fire-resistance control cable
Place of Origin :
china
MOQ :
500 meters
Price :
usd0.1-100 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500000kilometers per month
Delivery Time :
7days
Packaging Details :
wooden drum or steel drum
LV PVC insulated PVC sheath (fire-resistance) control cable.
Application:
Used as power and connecting cables in mechanical engineering for tooling machinery, control unit,
production lines, transportation equipment, conveyor and assembly lines as well as in plant construction
under the circumstance that the rated voltage is up to 450/750V AC.
advantage:
a. the long-term working temperature: PVC and PE insulated should not be above 70, XLPE insulated should not be above 90.
b. The laying temperature should not be above -20.
c. Thebending radius of cable: non armoured cable, should not be lessthan 6times. Armoured or copper tape screen should not be less than 12times.The soft screen cable should not be less than 6 times.
| Type | Name | Section Area(mm2) | No. of Core | Application Site |
| KVV | Copper Conductor,PVC Insulated and Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KVVP | Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KVVP2 | Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable | 0.75 1.0 1.5 2.5 | 4-10 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 7-61 | |||
| 10 | 4-10 | |||
| KVV22 | Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force |
| 4 6 | 4-14 | |||
| 10 | 4-14 | |||
| KVVR | Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
| KVVRP | Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required |
We are China LV PVC insulated PVC sheath fire-resistance control cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
