LV ABC Aerial Bundled Cable Quadruplex Service Drop Cable

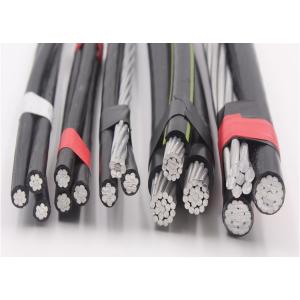

LV ABC Aerial Bundled Cable Quadruplex Service Drop Cable image
LV ABC Aerial Bundled Cable Quadruplex Service Drop Cable
Product Description
This Quadruplex Service Drop Cable can be used as a secondary distribution between poles or as a drop cable between a pole-mounted transformer and a structure's service entrance. Phase-to-phase 600V and 90˚C should be the maximum voltage that the cable can handle.
Standards:
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
| Cores | Nominal cross-sectional area | Phase Conductors insulation |
Dia. Of cable | R. of conductors at 20℃ | Break strength of conductor | ||
| /km | KN | ||||||
| 3C+1C | mm2 | Thickness (mm) | mm | Phase cores | Neutral cores | Phase cores | Neutral cores |
| 3C+1C | 3×25+54.6 | 1.4 | 23.57 | 1.2 | 0.630 | 16.6 | 16.6 |
| 3C+1C | 3×35+54.6 | 1.6 | 26.08 | 0.868 | 0.630 | 16.6 | 16.6 |
| 3C+1C | 3×50+54.6 | 1.6 | 28.15 | 0.641 | 0.630 | 16.6 | 16.6 |
| 3C+1C | 3×70+54.6 | 1.8 | 32.15 | 0.443 | 0.630 | 16.6 | 16.6 |
| 3C+1C | 3×70+54.6 | 1.8 | 32.15 | 0.443 | 0.630 | 16.6 | 16.6 |
| 3C+1C | 3×70+70 | 1.8 | 32.75 | 0.443 | 0.500 | 20.5 | 20.5 |
| 3C+1C | 3×95+70 | 1.8 | 35.78 | 0.32 | 0.500 | 20.5 | 20.5 |
| 3C+1C | 3×120+70 | 1.8 | 37.93 | 0.253 | 0.500 | 20.5 | 20.5 |
| 3C+1C | 3×120+70 | 1.8 | 37.93 | 0.253 | 0.500 | 20.5 | 20.5 |
| 3C+1C | 3×120+95 | 1.8 | 39.26 | 0.253 | 0.343 | 27.5 | 27.5 |
| 3C+1C | 3×150+95 | 1.9 | 41.81 | 0.206 | 0.343 | 27.5 |
27.5
|
We are China LV ABC Aerial Bundled Cable Quadruplex Service Drop Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Aerial Bundled Cable, LV ABC Aerial Bundled Cable, LV Aerial Bundled Cable, LV Quadruplex Service Drop CableSimilar Or Related
