LT XLPE Insulated 100% Covered Overhead Electric Cables 1.1KV ABC Cable

China LT XLPE Insulated 100% Covered Overhead Electric Cables 1.1KV ABC Cable supplier

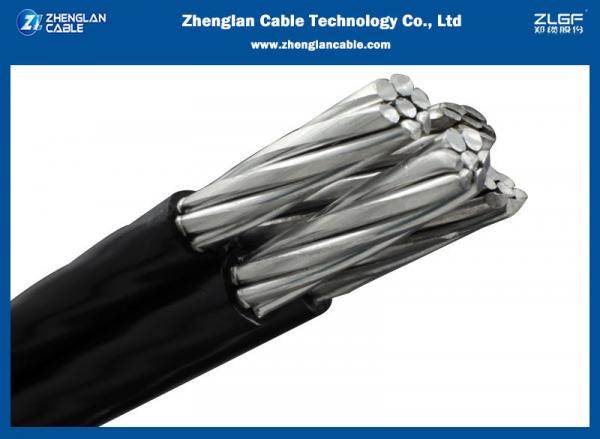

LT XLPE Insulated 100% Covered Overhead Electric Cables 1.1KV ABC Cable image

Get a Quote Email to us

Brand Name :
Zhenglan Cable

Model Number :
LT XLPE Insulated 100% Covered Overhead Electric Cables 1.1KV ABC Cable

Certification :
ISO 9001:2016，ISO 14001:2016

Place of Origin :
Henan, China

MOQ :
1000 meters

Payment Terms :
L/C, T/T,

Supply Ability :
100Km/Month

Delivery Time :
15-30 days

Packaging Details :
Wooden case, wooden-steel case

Price :
0.2-99USD/m

Application :
Overhead or Power station

Rated Voltage :
0.6/1kv

Conductor :
Aluminum

Insulation Material :
XLPE

Structure :
AAC/XLPE

Standards :
IEC60502, IS:14255-1995

Type :
phase conductor, insulated/bare messenger conductor, street light condctor

Identificaton of phase conductor :
ink printed number

LT XLPE insulated 100% covered Aerial Bundled Conductor 1.1kv ABC Cable

Place of Origin: Henan,China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: XLPE
Type: Low Voltage as your request
Application: Overhead or Power station
Conductor Material:
Standards:IEC60502, NF C33-209, GB 12527-90 ASTM

Packaging Details: Wooden case, wooden-steel case

LT XLPE insulated ABC Cable Application:
Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation,maintenance and operative cost. The cables are designed for aerial power lines and room-entrance wires with AC rated voltage 1kV and below.

LT XLPE insulated Cable Standard:
GB/T12527,1179 ,IEC60502 ,NFC 33-209 ,BS 7870 ,ANSI/ICEA S-76-474 AS/NZS 3560.1 etc.

Model Description
JKV-0.6/1 Copper core PVC insulated aerial insulated cable rated voltage 0.6/1kV
JKLV-0.6/1 Aluminum core PVC insulated aerial insulated cable rated voltage 0.6/1kV
JKLHV-0.6/1 Aluminum alloy core PVC insulated aerial insulated cable rated voltage 0.6/1kV
JKY-0.6/1 Copper core PE insulated aerial insulated cable rated voltage 0.6/1kV
JKLY-0.6/1 Aluminum core PE insulated aerial insulated cable rated voltage 0.6/1kV
JKLHY-0.6/1 Aluminum alloy core PE insulated aerial insulated cable rated voltage 0.6/1kV
JKYJ-0.6/1 Copper core XLPE insulated aerial insulated cable rated voltage 0.6/1kV
JKLYJ-0.6/1 Aluminum core XLPE insulated aerial insulated cable rated voltage 0.6/1kV
JKLHYJ-0.6/1 Aluminum alloy core XLPE insulated aerial insulated cable rated voltage 0.6/1kV

LT XLPEABC cable models and specifications

1.1kv Stranded & Compacted Aluminium Phase Conductor, and Stranded Messenger Conductor with All Aluminium Alloy, Phase Conductor is insulated with XLPE (Sioplas) Compound, Messenger is either insulated or bare Referred specification IS:14255-1995
No.

Description and

Type of Cable

Number of

Wires

 Thickness of XLPE Insulation Approx overall Diameter Approx Weight of Cable

Breaking Load of Mess

-enger

Maximum D.C Resistance

(Ohms/Km)

 AC Current Rating (Amps)
Phase

Mess

-enger

 Phase

Mess

-enger
mm mm mm Kg/KM KN (min) Phase

Mess

-enger

 In air at 40°C
With insulated messenger conductor without lighting conductor
1

1 C x 16 mm2 +

25 mm2 (insulated)

 7 7 1.2 1.2 20 165 7 1.91 1.38 72
2

3 C x 16 mm2 +

25 mm2 (insulated)

 7 7 1.2 1.2 22 301 7 1.91 1.38 64
3 1 Cx25 mm2 + 25mm2(insulated) 7 7 1.2 1.2 22.4 195 7 1.2 1.38 99
4

3 C x 25 mm2 +

25 mm2 (insulated)

 7 7 1.2 1.2 25 390 7 1.2 1.38 84
5 1 Cx35 mm2 + 25mm2(insulated) 7 7 1.2 1.2 27.3 227 7 0.868 1.38 120
6

3 C x 35 mm2 +

25 mm2 (insulated)

 7 7 1.2 1.2 27.4 486 7 0.868 1.38 105
7 1 Cx35 mm2 + 35mm2(insulated) 7 7 1.2 1.2 28 259 10.1 0.868 0.986 120
8

3 C x 35 mm2 +

35 mm2 (insulated)

 7 7 1.2 1.2 28.4 518 10.1 0.868 0.986 105
9

1 C x 50 mm2 +

35 mm2 (insulated)

 7 7 1.5 1.2 29 317 10.1 0.641 0.986 150
10

3 C x 50 mm2 +

35 mm2 (insulated)

 7 7 1.5 1.2 32.3 692 10.1 0.641 0.986 130
11

3Cx70 mm2 +

50 mm2 (insulated)

 7 7 1.5 1.5 37.5 939 14 0.443 0.689 155
12

3 C x 70 mm2 +

70 mm2 (insulated)

 7 7 1.5 1.5 39 1002 19.7 0.443 0.492 155
13

3 C x 95 mm2 +

70 mm2 (insulated)

 19 7 1.5 1.5 42.7 1237 19.7 0.32 0.492 190
14

3 C x 120 mmz +

70 mm2 (insulated)

 19 7 1.6 1.5 46 1482 19.7 0.253 0.492 220
15

3 C x 150 mm2 +

70 mm2 (insulated)

 19 7 1.8 1.5 50 1791 19.7 0.206 0.492 250
With bare messenger conductor without lighting conductor
1

1 C x 16 mm2 +

25 mm2 (bare)

 7 7 1.2 N.A* 18.5 137 7 1.91 1.38 72
2

3 C x 16 mm2 +

25 mm2 (bare)

 7 7 1.2 -do- 19.3 272 7 1.91 1.38 64
3

1 C x 25 mm2 +

25 mm2 (bare)

 7 7 1.2 -do- 19.5 167 7 1.2 1.38 99
4 3Cx25 mm2 + 25mm2(bare) 7 7 1.2 -do- 20.5 362 7 1.2 1.38 84
5

1 C x 35 mm2 +

25 mm2 (bare)

 7 7 1.2 -do- 22 199 7 0.868 1.38 120
6

3 C x 35 mm2 +

25 mm2 (bare)

 7 7 1.2 -do- 23.5 458 7 0.868 1.38 105
7

1 C x 35 mm2 +

35 mm2 (bare)

 7 7 1.2 -do- 24.6 226 10.1 0.868 0.986 120
8

3Cx35 mm2 +

35 mm2 (bare)

 7 7 1.2 -do- 25 485 10.1 0.868 0.986 105
9

1 C x 50 mm2 +

35 mm2 (bare)

 7 7 1.5 -do- 26.6 284 10.1 0.641 0.986 150
10 3Cx50 mm2 + 35mm2(bare) 7 7 1.5 -do- 26.8 659 10.1 0.641 0.986 130
11

3 C x 70 mm2 +

50 mm2 (bare)

 7 7 1.5 -do- 31.2 890 14 0.443 0.689 155
12 3Cx70 mm2 + 70mm2(bare) 7 7 1.5 -do- 34.4 946 19.7 0.443 0.492 155
13

3 C x 95 mm2 +

70 mm2 (bare)

 19 7 1.5 -do- 36 1179 19.7 0.32 0.492 190
14

3 C x 120 mm2 +

70 mm2 (bare)

 19 7 1.6 -do- 38 1425 19.7 0.253 0.492 220
15

3 C x 150 mm2 +

70 mm2 (bare)

 19 7 1.8 -do-— 40 1735 19.7__ 0.206 0.492 250 ―
No.

Description and

Type of Cable

Number of

Wires

 Thickness of XLPE Insulation Approx overall Diameter Approx Weight of Cable Breaking Maximum D.C Resistance AC Current Rating at 40°C
Phase

Mess

-enger

 Phase

Mess

-enger

 Load of Messenger Ohms/Km
mm mm mm Kg/KM KN (min) Phase

Mess

-enger

 In air at 40°C
With insulated messenger conductor and lighting conductor
1 3 C x 16 mm2 + 25 mm2 (insulated)+16 mm2 7 7 1.2 1.2 23.5 369 7 1.91 1.38 62
2 3 Cx25 mm2 + 25 mm2 (insulated)+16 mm2 7 7 1.2 1.2 25 457 7 1.2 1.38 82
3

3Cx35 mm2 + 25mm2(insulated)+

16mm2

 7 7 1.2 1.2 27.5 554 7 0.868 1.38 103
4

3 C x 35 mm2 + 35 mm2 (insulated)+

16 mm2

 7 7 1.2 1.2 28.4 586 10.1 0.868 0.986 103
5

3Cx50 mm2 + 35mm2(insulated)+

16mm2

 7 7 1.5 1.2 32.5 760 10.1 0.641 0.986 127
6

3Cx70 mm2 + 50mm2(insulated)+

16mm2

 7 7 1.5 1.5 37.5 1007 14 0.443 0.689 154
7

3Cx70 mm2 + 70mm2(insulated)+

16mm2

 7 7 1.5 1.5 39.5 1070 19.7 0.443 0.492 154
8 3 C x 95 mm2 + 70 mm2 (insulated)+16 mm2 19 7 1.5 1.5 42.5 1304 19.7 0.32 0.492 188
9 3 C x 120 mm2 + 70 mm2 (insulated)+16 mm2 19 7 1.6 1.5 46.8 1550 19.7 0.253 0.492 218
10 3 C x 150 mm2 + 70 mm2 (insulated)+16 mm2 19 7 1.8 1.5 50.8 1860 19.7 0.206 0.492 248
With bare messenger conductor and lighting conductor
1

3 C x 16 mm2 + 25 mm2 (bare)+

16 mm2

 7 7 1.2 N.A* 19.5 340 7 1.91 1.38 62
2

3 C x 25 mm2 + 25 mm2 (bare)+

16 mm2

 7 7 1.2 -do- 20.5 429 7 1.2 1.38 82
3

3 C x 35 mm2 + 25 mm2 (bare)+

16 mm2

 7 7 1.2 -do- 23.5 526 7 0.868 1.38 103
4

3 C x 35 mm2 + 35 mm2 (bare)+

16 mm2

 7 7 1.2 -do- 25 553 10.1 0.868 0.986 103
5

3 C x 50 mm2 + 35 mm2 (bare)+

16 mm2

 7 7 1.5 -do- 26.8 727 10.1 0.641 0.986 127
6

3 C x 70 mm2 + 50 mm2 (bare)+

16 mm2

 7 7 1.5 -do- 31.5 958 14 0.443 0.689 154
7

3 C x 70 mm2 + 70 mm2 (bare)+

16 mm2

 7 7 1.5 -do- 34.5 1013 19.7 0.443 0.492 154
8

3 C x 95 mm2 + 70 mm2 (bare)+

16 mm2

 19 7 1.5 -do- 37 1248 19.7 0.32 0.492 188
9

3 C x 120 mm2 + 70 mm2 (bare)+

16 mm2

 19 7 1.6 -do- 39 1493 19.7 0.253 0.492 218
10

3 C x 150 mm2 + 70 mm2 (bare)+

16 mm2

 19 7 1.8 -do- 40 1803 19.7 0.206 0.492 248
