Low Weight Overhead Line Conductor Aluminum Alloy Wire For Werhead Power Line

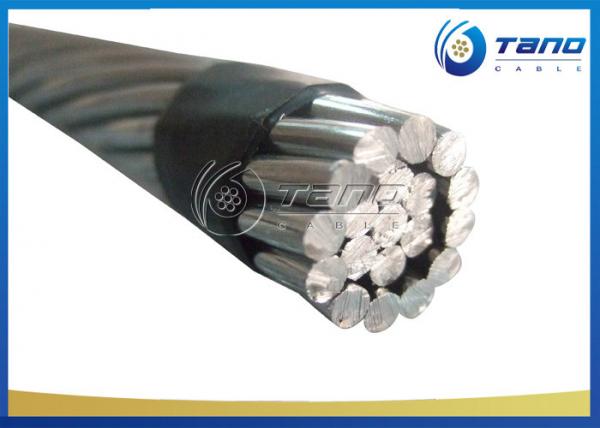

Low Weight Overhead Line Conductor Aluminum Alloy Wire For Werhead Power Line image
Brand Name :
TANO CABLE
Model Number :
AAAC
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
3000 KM Per Month
Delivery Time :
7-20 Days
Packaging Details :
We can pack our products, by coil, carton, plastic bag, wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery.
Code Name :
Box Acacia
Conductor :
All Aluminum Alloy Conductor
Application :
Overhead Transmission
Package :
Wooden or Wooden Steel Drum
Standard :
BS EN 50182
Key word :
AAAC
TANO CABLE Power Transmission Bare Conductor Aluminum Alloy Wire for Werhead Power Line
Application of AAAC
The product is used in field of werhead line.
Feature of AAAC
All Aluminum alloy conductors, stranded in successive layers to form the stranded AAAC Conductor.
Parameters of AAAC
BS EN 50182
| Code Name | Nominal Area |
No. / Dia. of Wire | Approx. Overall Diameter | Approx. Weight | Calculated Breaking Load | DC Resistance at 20° C Max. |
| mm2 | No. / mm | mm | kg/km | kN | Ohm/km | |
| Box | 18.8 | 7/1.85 | 5.55 | 51.4 | 5.6 | 1.7480 |
| Acacia | 23.8 | 7/2.08 | 6.24 | 64.9 | 7.0 | 1.3828 |
| Almond | 30.1 | 7/2.34 | 7.02 | 82.2 | 8.9 | 1.0926 |
| Cedar | 35.5 | 7/2.54 | 7.62 | 96.8 | 10.5 | 0.9273 |
| Deodar | 42.2 | 7/2.77 | 8.31 | 115.2 | 12.4 | 0.7797 |
| Fir | 47.8 | 7/2.95 | 8.85 | 130.6 | 14.1 | 0.6875 |
| Hazel | 59.9 | 7/3.30 | 9.90 | 163.4 | 17.7 | 0.5494 |
| Pine | 71.6 | 7/3.61 | 10.83 | 195.6 | 21.1 | 0.4591 |
| Holly | 84.1 | 7/3.91 | 11.73 | 229.5 | 24.8 | 0.3913 |
| Willow | 89.7 | 7/4.04 | 12.12 | 245.0 | 26.5 | 0.3665 |
| Oak | 118.9 | 7/4.65 | 13.95 | 324.5 | 35.1 | 0.2767 |
| Mulberry | 150.9 | 19/3.18 | 15.90 | 414.3 | 44.5 | 0.2192 |
| Ash | 180.7 | 19/3.48 | 17.40 | 496.1 | 53.3 | 0.1830 |
| Elm | 211.0 | 19/3.76 | 18.80 | 579.2 | 62.2 | 0.1568 |
| Poplar | 239.4 | 37/2.87 | 20.09 | 659.4 | 70.6 | 0.1387 |
| Sycamore | 303.2 | 37/3.23 | 22.61 | 835.2 | 89.4 | 0.1095 |
| Upas | 362.1 | 37/3.53 | 24.71 | 997.5 | 106.8 | 0.0917 |
| Yew | 479.0 | 37/4.06 | 28.42 | 1319.6 | 141.3 | 0.0693 |
| Totara | 498.1 | 37/4.14 | 28.98 | 1372.1 | 146.9 | 0.0666 |
| Rubus | 586.9 | 61/3.50 | 31.50 | 1622.0 | 173.1 | 0.0567 |
| Sorbus | 659.4 | 61/3.71 | 33.39 | 1822.5 | 194.5 | 0.0505 |
| Araucaria | 821.1 | 61/4.14 | 37.26 | 2269.4 | 242.2 | 0.0406 |
| Redwood | 996.2 | 61/4.56 | 41.04 | 2753.2 | 293.9 | 0.0334 |
Construction of AAAC
FAQ
Q: How long does it take to get a quote back?
A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.
Q: What warranties do your products carry?
A: TANO CABLE cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that
does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the
purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are
selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to
and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of
loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in
Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
We are China Low Weight Overhead Line Conductor Aluminum Alloy Wire For Werhead Power Line manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: aaac conductor, all aluminium alloy conductor, all aluminum alloy conductorSimilar Or Related
