Low Voltage PVC Insulated Cable Copper Swa Armoured Underground Cable 3 Core

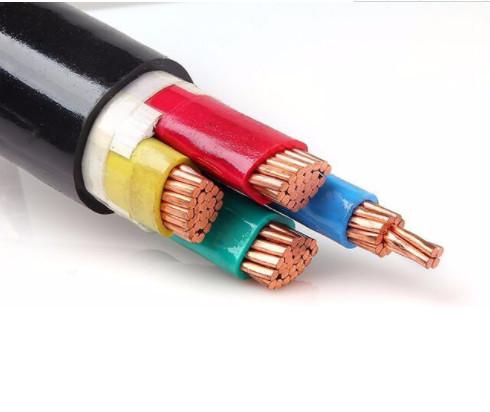

Low Voltage PVC Insulated Cable Copper Swa Armoured Underground Cable 3 Core image
Brand Name :
Huanghe
Model Number :
VV YJV
Certification :
ISO OHSAS CCC
Place of Origin :
china
MOQ :
200
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
5-8 days
Packaging Details :
Wooden drum
Jacket :
PVC,no jacket
Conductor material :
Copper,Aluminum
Application :
Construction,Underground
Type :
Low Voltage
Color :
Black Red Grey Orange,Black or other
Standard :
IEC60502,etc
Product name :
Copper Core PVC Insulated Electrical Power Cable,copper welding cable
Low Voltage PVC Insulated Cable Copper Swa Armoured Underground Cable 3 Core
Rated Voltage Uo/U:0.6/1KV
Maximum operating voltage :1.2KV
Frequence:50HZ
Test voltage :3500V
Permissible operating temperature at conductor:90°C
short circuit temperature ( duration max. 5 s):250 °C
Minimum installation temperature:should not be lower than 0°C
Max. conductor permissible tensile stress :50 N/mm²
Minimum bending radius :15 x cable Ø
Sample:
Give us your application and your request—– we recommend suitable cable ——-sample is free if we have stock—– if we don't have,we can customize it, charge some cost for sample. And this sample cost will return you when receive your bulk order more than USD1000.
Sample need 1 weeks to customized. if not customized product, sample provide within 2 days.
bulk order lead time is 7-15 days.
3 core pvc copper swa armoured cable PVC Insulated cable lv armoured cable
Low Voltage Power Cable Cu- Conductor, XLPE Insulated,Steel Tape Armoured PVC Sheathed 3 Core
| No.cores x cross-sec. |
Insulation thickness |
Nominal Sheath |
Outer Ø approx. |
weight approx. |
Current ratings in air 30℃ | Current ratings buried 20℃ | maximum DC resistance at 20℃ |
|---|---|---|---|---|---|---|---|
| mm² | mm | mm | mm | kg / km | A | A | Ω/km |
| 3×4 | 0.7 | 1.8 | 15.2 | 379 | 37 | 45 | 4.61 |
| 3×6 | 0.7 | 1.8 | 16.3 | 463 | 46 | 57 | 3.08 |
| 3×10 | 0.7 | 1.8 | 18.6 | 628 | 63 | 77 | 1.83 |
| 3×16 | 0.7 | 1.8 | 20.7 | 851 | 83 | 100 | 1.15 |
| 3×25 | 0.9 | 1.8 | 24.2 | 1209 | 112 | 131 | 0.73 |
| 3×35 | 0.9 | 1.8 | 26.4 | 1546 | 137 | 158 | 0.52 |
| 3×50 | 1.0 | 1.8 | 26.8 | 1908 | 163 | 187 | 0.39 |
| 3×70 | 1.1 | 2.0 | 32.0 | 2874 | 211 | 233 | 0.27 |
| 3×95 | 1.1 | 2.2 | 35.4 | 3685 | 255 | 277 | 0.19 |
| 3×120 | 1.2 | 2.3 | 38.8 | 4560 | 298 | 317 | 0.15 |
| 3×150 | 1.4 | 2.4 | 43.4 | 5570 | 348 | 358 | 0.12 |
| 3×185 | 1.6 | 2.6 | 48.5 | 6837 | 403 | 403 | 0.10 |
| 3×240 | 1.7 | 2.7 | 53.5 | 8606 | 480 | 468 | 0.08 |
| 3×300 | 1.8 | 2.9 | 57.6 | 10577 | 549 | 531 | 0.06 |
3 core pvc copper swa armoured cable PVC Insulated cable lv armoured cable
We are China Low Voltage PVC Insulated Cable Copper Swa Armoured Underground Cable 3 Core manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
