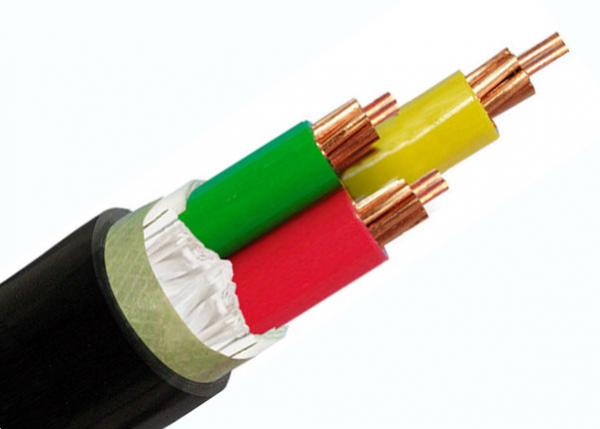

Low Voltage Power Cable 0.6/1 KV | 3 Core Copper Conductor PVC Insulated & Sheathed Power Cable IEC 60502-1

APPLICATIONS:

Power cables for energy supply are installed in open air, in underground, indoors, in cable ducts, power stations, residental connections and street lighting as well as in subscriber networks, where mechanical damages are not be expected.

CONSTRUCTION:

1. CONDUCTOR
– Bare copper conductor, Class 2 to IEC 60228
2. INSULATION
– PVC Compound
3. OUTER SHEATH :
– PVC Compound
Sheath colour :
– Black

*Note: when required for a particular application, other colors are available.

STANDARDS

International: IEC 60502-1
National:GB/ T 12706.1-2008

Rated Voltage Uo/U

0.6/1 kV

Maximum operating voltage

1.2 kV

Frequence

50 Hz

Test voltage :

3500 V

Permissible operating temperature at conductor

+70°C

short circuit temperature ( duration max. 5 s)

160 °C

Minimum installation temperature

should not be lower than 0°C

Max. conductor permissible tensile stress

50 N/mm²

Minimum bending radius

15 x cable Ø

No.cores x
cross-sec.

Insulation
thickness

Nominal

Sheath
thickness

Outer Ø
approx.

weight
approx.

Current ratings in air 30℃

Current ratings buried 20℃

maximum DC resistance at 20℃

mm²

mm

mm

mm

kg / km

A

A

Ω/km

3×1.5

0.8

1.8

11

154

17

22

12.1

3×2.5

0.8

1.8

11.9

194

22

29

7.41

3×4.0

1.0

1.8

13.8

274

29

38

4.61

3×6.0

1.0

1.8

14.9

348

37

47

3.08

3×10

1.0

1.8

17.6

529

52

65

1.83

3×16

1.0

1.8

19.9

740

68

85

1.15

3×25

1.2

1.8

23.7

1058

91

110

0.73

3×35

1.2

1.8

26.1

1382

112

134

0.52

3×50

1.4

1.8

26.4

1760

133

159

0.39

3×70

1.4

2.0

29.8

2364

171

199

0.27

3×95

1.6

2.1

33.8

3158

209

237

0.19

3×120

1.6

2.2

36.7

3921

242

271

0.15

3×150

1.8

2.3

40.2

4868

282

305

0.12

3×185

2.0

2.5

45.6

5952

329

346

0.10

3×240

2.2

2.7

51.7

7713

392

400

0.08

3×300

2.4

2.9

56.1

10004

450

462

0.06

No.cores x
cross-sec.

Insulation
thickness

Nominal

Sheath
thickness

Outer Ø
approx.

weight
approx.

Current ratings in air 30℃

Current ratings buried 20℃

maximum DC resistance at 20℃

mm²

mm

mm

mm

kg / km

A

A

Ω/km

3×4

1.0

1.8

17.0

450

29

36

4.61

3×6

1.0

1.8

18.1

538

37

45

3.08

3×10

1.0

1.8

20.8

745

50

60

1.83

3×16

1.0

1.8

23.1

983

66

79

1.15

3×25

1.2

1.8

26.9

1344

90

105

0.73

3×35

1.2

1.8

29.3

1702

111

127

0.52

3×50

1.4

1.9

31.2

2344

129

148

0.39

3×70

1.4

2.0

34.4

3017

165

185

0.27

3×95

1.6

2.2

38.6

3913

206

221

0.19

3×120

1.6

2.3

41.7

4741

242

261

0.15

3×150

1.8

2.5

45.5

5790

281

296

0.12

3×185

2.0

2.6

51.0

7013

328

337

0.10

3×240

2.2

2.8

57.3

8930

386

389

0.08

3×300

2.4

3.0

61.5

11350

445

441

0.06
