Low Voltage Overhead Electric Transmission Aerial Bundle Cable ABC ACSR/AAAC/AAC

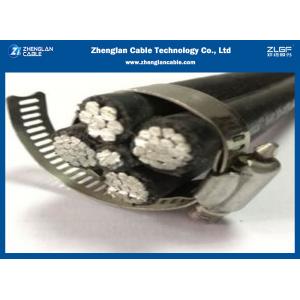

Low Voltage Overhead Electric Transmission Aerial Bundle Cable ABC ACSR/AAAC/AAC image
Brand Name :
Zhenglan Cable
Model Number :
LV Insulated Cable
Certification :
ISO 9001:2015，ISO 14001:2005
Place of Origin :
Henan, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50,000 KM/Year
Delivery Time :
5-15days
Packaging Details :
Wooden drum, iron wooden drum or as required
structure :
AAC/XLPE+AAAC/XLPE/BARE
Phase cable Conductor :
AAC
Insulation Material :
XLPE
Neutral cable conductor :
AAAC/ACSR
Neutral cable insulation :
XLPE/BARE
Voltage :
0.6/1KV
Application :
Overhead transmission use
Standard :
IEC 60502 ASTM B-399
Port :
Qingdao or Shanghai
Origin :
China
Low Voltage ABC ACSR/AAAC/AAC Conductor Overhead Electric Transmission Aerial Bundle Cable ASTM B-399
Application
Quadruplex ABC cable used to supply 3 phase power, usually from a polemounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulation 90°C maximum for crosslinked polyethylene(XLPE) insulated conductors
Construction
The phase conductors are concentrically stranded compressed 1350-H19 aluminum and insulated polyethylene or crosslinked polyethylene(XLPE), The neutral messengers are concentrically stranded AAC, ACSR, or 6201 aluminum alloy.The conductors are manufactured with ridges for phase identification(one conductor with one ridge,one conductor with two ridges ,one conductor is plain).
Conductor
1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. Concentric-Lay-Stranded 6201-T81 Conductors.
5. Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
Insulation: PVC, XLPE, PE
Phase Cable identification: number 111, 222, 333
Main characteristics
Decreases energy theft, cross-linked polyethylene allows more current capacity and high insulation resistance, lower inductive reactance than with bare conductors, used in overhead distribution lines. Increased safety due to its mechanical strength and toughness of the insulation. Insulators are not necessary for installation. Resistance to abrasion, weather and sunlight.
Technical date sheets
| CAAI 0,6/1 kV AAAC Covered Neutral without Public Lighting | |||||||||
| Nb. of cores | Phase Cond. Cross Section [mm²] | N° aluminium wires |
Phase conductor diameter(mm) | Min Insulation thickness(mm) | Neutral conductor | MIn.Insulat.Thick of Neutral messenger(mm) | Nom. outer diam(mm) | Approx. weight [kg/km] | |
| sectional area(mm2) | conductor diameter(mm) | ||||||||
| 1 | 16 | 7 | 5 | 1.15 | 25 | 6.4 | 1.15 | 16.2 | 168 |
| 1 | 25 | 7 | 5.8 | 1.15 | 25 | 6.4 | 1.15 | 17 | 196 |
| 2 | 16 | 7 | 5 | 1.15 | 25 | 6.4 | 1.15 | 17.3 | 236 |
| 2 | 25 | 7 | 5.8 | 1.15 | 25 | 6.4 | 1.15 | 18.2 | 291 |
| 2 | 35 | 7 | 6.9 | 1.15 | 25 | 6.4 | 1.15 | 19.7 | 354 |
| 2 | 35 | 7 | 6.9 | 1.15 | 50 | 9.1 | 1.53 | 22.8 | 453 |
| 2 | 50 | 19 | 8.1 | 1.53 | 35 | 7.6 | 1.15 | 23.7 | 489 |
| 2 | 50 | 19 | 8.1 | 1.53 | 50 | 9.1 | 1.53 | 25.3 | 554 |
| 2 | 70 | 19 | 9.8 | 1.53 | 50 | 9.1 | 1.53 | 27.7 | 692 |
| 3 | 16 | 7 | 5 | 1.15 | 25 | 6.4 | 1.15 | 18.7 | 304 |
| 3 | 25 | 7 | 5.8 | 1.15 | 25 | 6.4 | 1.15 | 20.2 | 386 |
| 3 | 25 | 7 | 5.8 | 1.15 | 35 | 7.6 | 1.15 | 20.8 | 420 |
| 3 | 35 | 7 | 6.9 | 1.15 | 25 | 6.4 | 1.15 | 22.2 | 480 |
| 3 | 50 | 19 | 8.1 | 1.53 | 35 | 7.6 | 1.15 | 26.7 | 666 |
| 3 | 70 | 19 | 9.8 | 1.53 | 50 | 9.1 | 1.53 | 31.2 | 939 |
| 3 | 70 | 19 | 9.8 | 1.53 | 70 | 10.7 | 1.53 | 32.0 | 1006 |
| 3 | 95 | 19 | 11.5 | 1.53 | 50 | 9.1 | 1.53 | 34.4 | 1186 |
| 3 | 95 | 19 | 11.5 | 1.53 | 70 | 10.7 | 1.53 | 35.3 | 1253 |
| 3 | 120 | 19 | 12.8 | 2.04 | 70 | 10.7 | 1.53 | 39.7 | 1539 |
| 3 | 185 | 37 | 16 | 2.04 | 50 | 9.1 | 1.53 | 45.0 | 2074 |
| 3 | 240 | 37 | 18.4 | 2.04 | 50 | 9.1 | 1.53 | 49.4 | 2591 |
