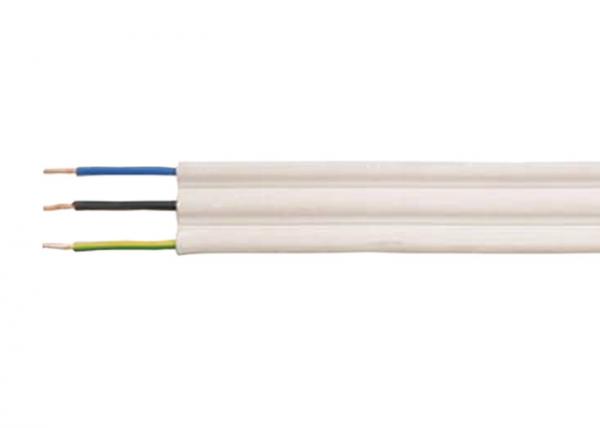

Low Voltage Copper Conductor PVC Insulated Cables For Plaster
Low Voltage Copper Conductor PVC Insulated Cables For Plaster image
Brand Name :
OEM
Certification :
ISO/RoHS/CE
Place of Origin :
china
MOQ :
200 meters
Payment Terms :
L/C, T/T
Delivery Time :
5-15day
Packaging Details :
wooden drum
conductor :
Copper
insulation :
PVC
NYIFY :
PVC compound
NYIF :
rubber compound
IYYFI-J/O :
PVC-sheath
Flexing :
5℃~70℃
Price :
Negotiable
Supply Ability :
50000meters per week
Low Voltage Copper Conductor PVC Insulated Cables For Plaster
Application
For permanent installation in dry environment in and under plaster. The product corresponds to the directive 2006/95/EG (low voltage directive).
Construction
Copper conductor: plain, solid, acc. to VED 0295
Insulation: PVC
Core identification: acc. to VDE 0293
Stranding: cores laying parallel next to each other
Outer sheath:
NYIFY: PVC compound YM1
NYIF: rubber compound
IYYFI-J/O: PVC-sheath
Technical data
Nominal voltage
NYIFY/NYIF: U0/U 230/400V
IYYFT-J/O: U0/U 300/500V
Test voltage: 2000V
Temperature range
Flexing 5℃~70℃
Fixed installation -30℃~70℃
Minimum bending radius
Fixed installation 15x cable diameter
| Section mm2 | Copper content kg/km | Section mm2 | Copper content kg/km |
| NYIFY-J | NYYFL-J | ||
| 3*1.5 | 43.0 | 3*1.5 | 43.0 |
| 4*1.5 | 58.0 | ||
| 5*1.5 | 72.0 | ||
| NYIF-J | |||
| 2*1.5 | 29.0 | 3*2.5 | 72.0 |
| 3*.15 | 43.0 | 4*2.5 | 96.0 |
| 5*2.5 | 120.0 | ||
| NYIF-J | IYYFL-O | ||
| 3*1.5 | 43.0 | 2*1.5 | 29.0 |
| 4*1.5 | 58.0 | ||
| 5*1.5 | 72.0 | 2*2.5 | 48.0 |
| 3*2.5 | 72.0 | ||
| 5*2.5 | 120.0 |
We are China Low Voltage Copper Conductor PVC Insulated Cables For Plaster manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
