Low Voltage Armoured Power Cable 0.6/1kV 2 Core Cu / XLPE / STA / PVC IEC

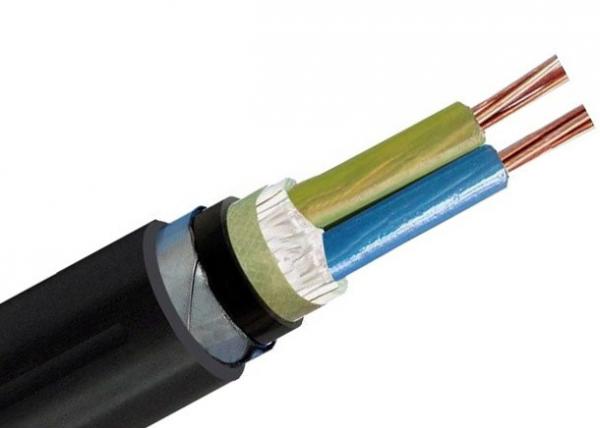

Low Voltage Armoured Power Cable 0.6/1kV 2 Core Cu / XLPE / STA / PVC IEC image

Get a Quote Email to us

Brand Name :
Chengtiantai

Model Number :
YJV22-2C

Certification :
IEC, Rosh，CCC

Place of Origin :
Shenzhen, China (mainland)

MOQ :
Negotiable

Price :
Negotiable

Payment Terms :
L/C, T/T

Delivery Time :
Shipped in 15 days after payment

Packaging Details :
Steel Wooden Drum

Voltage :
0.6/1 kV

Core Insulation :
PVC

No. of cores :
2

Armour :
Galvanized steel tape

Conductor :
Stranded class 2 to IEC 60228

Outer Sheath :
PVC

Electric cable with copper conductors, XLPE insulation, PVC bedding, double galvanized steel tapes armour (STA) and PVC outer sheath

APPLICATION

Armoured cables for fixed installations,suitable for indoor and outdoor installation, in air and ground

– Laid on walls, in cable ducts, on cable trays.

– These cables are not designed to be laid up in wet environments

– Maximum temperature rating of the conductor: +90 °C

CONSTRUCTION CHARACTERISTICS

Conductor material	Copper
Conductor flexibility	Stranded class 2 to IEC 60228
Insulation	PVC
Inner sheath	PVC
Armour type	Galvanized steel tapes
Outer sheath	PVC
Colour	Black
Lead free	Yes

Electrical Characteristics

Rated Voltage Uo/U	0.6/1 kV
Maximum operating voltage	1.2 kV
Frequence	50 Hz
Test voltage :	3500 V

Usage Characteristics

Permissible operating temperature at conductor	+90°C
short circuit temperature ( duration max. 5 s)	250 °C
Minimum installation temperature	should not be lower than 0°C
Max. conductor permissible tensile stress	50 N/mm²
Minimum bending radius	15 x cable Ø

Physical and Electrical Characteristics:

No.cores x cross-sec.	Insulation thickness	Inner Sheath thickness	Nominal Sheath thickness	Outer Ø approx.	weight approx.	Current ratings in air 30℃	Current ratings buried 20℃	maximum DC resistance at 20℃
mm²	mm	mm	mm	mm	kg / km	A	A	Ω/km
2×4	0.7	0.9	1.8	13.5	265.3	50	73	4.61
2×6	0.7	0.9	1.8	14.5	325.4	63	89	3.08
2×10	0.7	0.9	1.8	17.1	447	87	118	1.83
2×16	0.7	0.9	1.8	19.2	602.1	116	152	1.15
2×25	0.9	0.9	1.8	22.6	863	153	194	0.73
2×35	0.9	0.9	1.8	24.9	1099	188	234	0.52
2×50	1.0	0.9	1.8	26.8	1357	229	278	0.39
2×70	1.1	0.9	1.9	30.4	1815	291	341	0.27
2×95	1.1	0.9	2.0	35.8	2762	357	408	0.19
2×120	1.2	1.2	2.2	39.2	3366	434	466	0.15
2×150	1.4	1.2	2.3	43.6	4146	497	525	0.12
2×185	1.6	1.2	2.4	47.6	4862	595	594	0.10

*Dimensions and specifications may be changed without prior notice.

Conductor Design

Packaging & Delivery

Packaging details :		Delivery :

Steel Wooden Drums	Cable Drum In container	shipped in 15 days after payment

Cable Drum Data

CABLE DRUMS	D1=Flange Diameter(mm)	W=Useful Width (mm)	D2=Barrel Diameter(mm)
	1000	700	500
	1100	700	550
	1200	700	600
	1400	750	710
	1600	900	900
	1800	1120	1000
	2400	1150	1300

Delivery Port:


Port of Shenzhen	Port of Hongkong	Port of Guangzhou

Manufacturing Process Of Low Voltage Power Cable ( Unarmored )


1. copper rod	2. wire drawing	3. wire stranding

4.Inner sheath	5. Assembling	6.outer covering Process

7. Sheath Marking	8. Packing	9. cable delivering

Our production in numbers

● Cable production started 1983
● 35 years of cable manufacturing experience

● Sales in 2016 about 500 million USD

● 100,000 m² Production area
● 350 Will-trained employees
● Exported more than 22 countries
● 2 Manufacturing plant
● 1 R&D Center

● 200 Sets Of Testing Equipment

● 100 Testing Items
● 8 workshop
● 40 wire drawing machines
● 10 bunching machines
● 28 Extruder system
● 42 stranding machines
● 10 Braiding machines

Some great shots of our manufactering plant


Mannufacturing plant	R&D Building	Bird's eye view of the plant

MV Power Cable Workshop	Cable Reels Waiting to be shipped out	Shipping

Shenzhen chengtiantai cable operates certified management systems compliant with:

	Certificat	Information
	ISO 9001:2008 quality management systems	Certificat ISO 9001:2008 – Shenzhen chengtiantai cable industry development Co.Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 13 January 2019
	ISO 14001:2004 environmental management systems	Certificat ISO 14001:2004 – Shenzhen chengtiantai cable industry development Co.Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 13 January 2019
	OHSAS 18001:2007 assessment specification for occupational health & safety management systemsenvironmental management systems	Certificat OHSAS 18001:2007 – Shenzhen chengtiantai cable industry development Co.Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 13 January 2019

Customer services:

RECOMMENDED ORDERING PARAMETERS

CONTACT

For prompt quotation / supplies please make sure your inquiries and your orders are
securing the following data :

1 – International or Special Standard. (Alternatively, the precise usage of the cable.)
2 – Rated voltage.
3 – Copper or Aluminium conductors.
4 – Size of each conductor.
5 – Insulation material : XLPE or others.
6 – Number and identification of conductors.
7 – Other requirements.
8 – Packing.
9 – Required delivery time.
10 – Required validity.

If this all seems a litle too technical for you, then why not get in touch with us.

We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.

Tel:+86 755 6114 5028
Fax:+86 755 61137976
E-mail : [email protected]
Head office:chengtiantai Industrial Park, Lisonglang community, Gongming office, Guangming district, Shenzhen P.R. China 518106

WARRANTY

For a period commencing on the date shipped the Goods to Buyer and continuing for a period of 12 months thereafter.

We are China Low Voltage Armoured Power Cable 0.6/1kV 2 Core Cu / XLPE / STA / PVC IEC manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
