Low Tension Construction Cables H07V-U 450/750 V

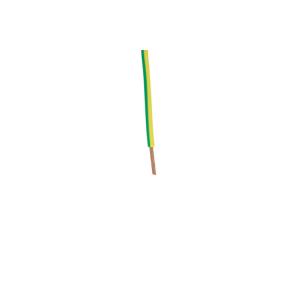

Low Tension Construction Cables H07V-U 450/750 V image
Low Tension Construction Cables H07V-U 450/750 V
Application:
NYA H07V-U is suitable for the transport of energy in fixed installations, internal wiring, signaling circuits, etc. in domestic, industrial, commercial premises and offices.
Standard:
IEC 60228 , IEC227 , or equivalent
Cable Construction:
Conductor: Solid bare copper wire
Insulation: PVC
Color available: Black/Brown/Blue/Green/Grey/Orange/Red/Yellow ,etc
Technical Characteristics:
Rated voltage: 300/500v (H05V-U)/ 450/750v (H07V-U)
Test voltage: 2000V(H05V-U)/2500V (H07V-U)
Flexing bending radius: 15 x D
Static bending radius: 15 x D
Temperature range: -5℃ to +70℃
Short circuit temperature: 160 ℃
Flame retardant: IEC 60332.1
Parameter:
| Conductor size | Conductor | PVC Insulation Thickness | Cable overall Dia. |
Weight kg/km |
|||
| Stranding no. | Single Wire dia. | Dia. | |||||
| AWG | MM2 | / | mm | mm | mm | mm | |
| — | 0.5 | 1 | 0.80 | 0.80 | 0.6 | 2 | 8 |
| — | 0.75 | 1 | 0.98 | 0.98 | 0.6 | 2.2 | 12 |
| — | 1 | 1 | 1.13 | 1.13 | 0.6 | 2.3 | 14 |
| — | 1.5 | 1 | 1.38 | 1.38 | 0.7 | 2.8 | 20 |
| — | 2.5 | 1 | 1.78 | 1.78 | 0.8 | 3.4 | 32 |
| — | 4 | 1 | 2.26 | 2.26 | 0.8 | 3.9 | 48 |
| — | 6 | 1 | 2.76 | 2.76 | 0.8 | 4.4 | 67 |
