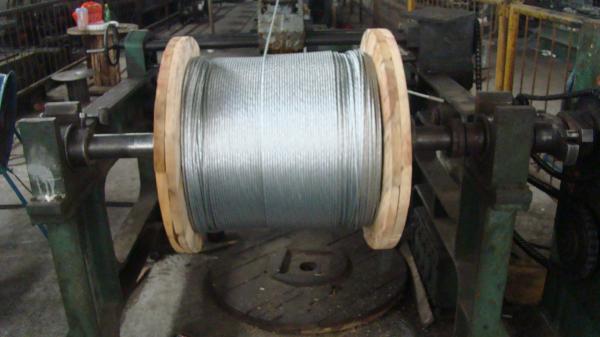

Long Life Galvanised Wire Rope , Steel Strand Cable For Flexible Shielded Cable
Long Life Galvanised Wire Rope , Steel Strand Cable For Flexible Shielded Cable image
Place of Origin :
Anhui,China
Brand Name :
Litong Global
Certification :
ISO9001 and other 3rd party Inspection report
Model Number :
LT-160216
MOQ :
Negotiable
Price :
Negotiable

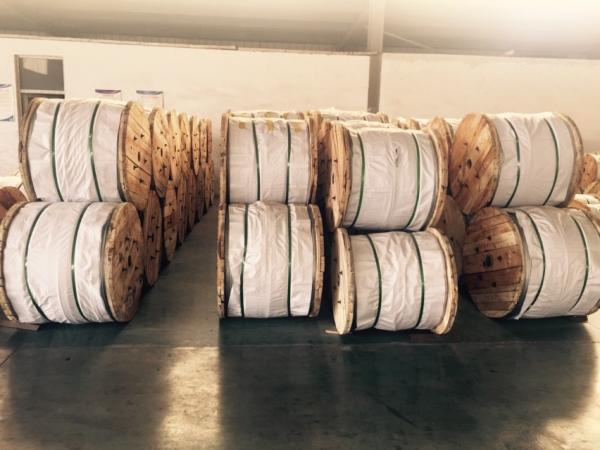

Packaging Details :
In Coil or on Drum
Delivery Time :
10 days after confirmed order
Payment Terms :
TT/LC
Supply Ability :
400tons/day
Steel Grade :
Middle and High Carbon Wire Rod
Wire Gauge :
1.0-4.8mm
Type :
Galvanized
Alloy Or Not :
Non-alloy
Special Use :
Free Cutting Steel
Application :
guy wire,stay wire,ACSR Conductor,rope etc.
Standard :
AISI|ASTM|BS|DIN|GB|JIS
Long Life Galvanised Wire Rope , Steel Strand Cable For Flexible Shielded Cable
Technical Parameters
Galvanized Steel Wire as per ASTM B 498
|
Wire Diamater(mm) |
Diamater Tolerance(mm) |
Weight of Zinc-coating(g/m2) |
Stress at 1% Extension,Min(Mpa) |
Tensile Strength Min.(Mpa) |
Elongation in 250mm,Min(%) |
|
1.57-1.90 |
+0.04,-0.03 |
210 |
1310 |
1450 |
3.0 |
|
Over 1.9-2.3 |
+0.04,-0.03 |
220 |
1310 |
1450 |
3.0 |
|
Over 2.3-2.7 |
+0.05,-0.05 |
230 |
1280 |
1410 |
3.5 |
|
Over 2.7-3.1 |
+0.05,-0.05 |
240 |
1280 |
1410 |
3.5 |
|
Over3.1-3.5 |
+0.08,-0.05 |
260 |
1240 |
1410 |
4.0 |
|
Over 3.5-3.9 |
+0.08,-0.05 |
270 |
1240 |
1410 |
4.0 |
|
Over 3.9-4.5 |
+0.1,-0.08 |
275 |
1170 |
1380 |
4.0 |
|
Over 4.5-4.8 |
+0.1,-0.08 |
300 |
1170 |
1380 |
4.0 |
Galvanized Steel Wire Strand as per ASTM A 475
|
Norminal Diamater of Strand |
No. of Wires |
Diamater of Wire |
Tolerance of Wire |
Weight |
Zinc-coating |
Breaking Loading |
|
mm |
– |
mm |
mm |
Kg/Km |
g/m2 |
KN |
|
3.18 |
7 |
1.04 |
±0.05 |
48 |
122 |
8.14 |
|
3.97 |
7 |
1.32 |
±0.05 |
76 |
122 |
13.078 |
|
4.76 |
7 |
1.57 |
±0.08 |
109 |
153 |
17.748 |
|
5.56 |
7 |
1.83 |
±0.08 |
146 |
153 |
24.02 |
|
6.35 |
7 |
2.03 |
±0.08 |
180 |
183 |
29.581 |
|
7.14 |
7 |
2.36 |
±0.10 |
244 |
214 |
39.812 |
|
7.94 |
7 |
2.64 |
±0.10 |
305 |
244 |
49.82 |
|
9.52 |
7 |
3.05 |
±0.10 |
407 |
259 |
68.503 |
|
11.11 |
7 |
3.68 |
±0.13 |
595 |
275 |
92.523 |
|
12.7 |
7 |
4.19 |
±0.13 |
770 |
275 |
119.657 |
Specification
| Galvanized Steel Wire Strand ASTM A-475 | ||||||
| Number of Wire(Dia.) |
Approx.Strand Dia. |
Siemem Martin Grade | High Strength Grade |
Extra-high Strength Grade |
Approx.Weight |
|
| Inch | mm | KN | KN | KN | kg/km | |
| 3/2.64 | 7/32 | 5.56 | 10.409 | 15.569 | 21.796 | 131 |
| 3/3.05 | 1/4 | 6.35 | 13.523 | 21.04 | 29.981 | 174 |
| 3/3.05 | 1/4 | 6.35 | – | – | – | 174 |
| 3/3.30 | 9/32 | 7.14 | 15.035 | 23.398 | 33.362 | 204 |
| 3/3.68 | 5/16 | 7.94 | 18.193 | 28.246 | 40.479 | 256 |
| 3/4.19 | 3/8 | 9.52 | 24.732 | 37.187 | 52.489 | 328 |
| 7/1.04 | 1/8 | 3.18 | 4.048 | 5.916 | 8.18 | 49 |
| 7/1.32 | 5/32 | 3.97 | 6.539 | 9.519 | 13.078 | 76 |
| 7/1.57 | 3/16 | 4.76 | 8.452 | 12.677 | 17.748 | 108 |
| 7/1.65 | 3/16 | 4.76 | – | – | – | 118 |
| 7/1.83 | 3/16 | 5.56 | 11.387 | 17.126 | 24.02 | 145 |
| 7/2.03 | 7/32 | 6.35 | 14.012 | 21.129 | 29.581 | 181 |
| 7/2.36 | 1/4 | 7.14 | 18.905 | 28.469 | 39.812 | 243 |
| 7/2.64 | 9/32 | 7.94 | 23.798 | 35.586 | 49.82 | 305 |
| 7/2.77 | 5/16 | 7.94 | – | – | – | 335 |
| 7/3.05 | 3/8 | 9.52 | 30.915 | 48.04 | 68.503 | 407 |
| 7/3.68 | 7/16 | 11.11 | 41.591 | 64.499 | 92.523 | 594 |
| 7/4.19 | 1/2 | 12.7 | 53.823 | 83.627 | 119.657 | 768 |
| 7/4.78 | 9/16 | 14.29 | 69.837 | 108.981 | 155.688 | 991 |
| 7/5.26 | 5/8 | 15.88 | 84.961 | 131.667 | 188.605 | 1211 |
| 19/2.54 | 1/2 | 12.7 | 56.492 | 84.961 | 118.768 | 751 |
| 19/2.87 | 9/16 | 12.49 | 71.616 | 107.202 | 149.905 | 948 |
| 19/3.18 | 5/8 | 15.88 | 80.513 | 124.995 | 178.819 | 1184 |
| 19/3.81 | 3/4 | 19.05 | 116.543 | 181.487 | 259.331 | 1719 |
| 19/4.50 | 7/8 | 22.22 | 159.691 | 248.211 | 354.523 | 2352 |
| 19/5.08 | 1 | 25.4 | 209.066 | 325.61 | 464.839 | 2384 |
| 37/3.63 | 1 | 25.4 | 205.508 | 319.827 | 456.832 | 3061 |
| 37/4.09 | 11/8 | 28.58 | 262 | 407.457 | 581.827 | 4006 |
| 37/4.55 | 11/4 | 31.75 | 324.72 | 505.318 | 721.502 | 4833 |
| 3/2.64 | 7/32 | 5.56 | 10.409 | 15.569 | 21.796 | 131 |
| 3/3.05 | 1/4 | 6.35 | 13.523 | 21.04 | 29.981 | 174 |
| 3/3.05 | 1/4 | 6.35 | – | – | – | 174 |
| 3/3.30 | 9/32 | 7.14 | 15.035 | 23.398 | 33.362 | 204 |
| 3/3.68 | 5/16 | 7.94 | 18.193 | 28.246 | 40.479 | 256 |
| 3/4.19 | 3/8 | 9.52 | 24.732 | 37.187 | 52.489 | 328 |
| 7/1.04 | 1/8 | 3.18 | 4.048 | 5.916 | 8.18 | 49 |
| 7/1.32 | 5/32 | 3.97 | 6.539 | 9.519 | 13.078 | 76 |
| 7/1.57 | 3/16 | 4.76 | 8.452 | 12.677 | 17.748 | 108 |
| 7/1.65 | 3/16 | 4.76 | – | – | – | 118 |
| 7/1.83 | 3/16 | 5.56 | 11.387 | 17.126 | 24.02 | 145 |
| 7/2.03 | 7/32 | 6.35 | 14.012 | 21.129 | 29.581 | 181 |
| 7/2.36 | 1/4 | 7.14 | 18.905 | 28.469 | 39.812 | 243 |
| 7/2.64 | 9/32 | 7.94 | 23.798 | 35.586 | 49.82 | 305 |
| 7/2.77 | 5/16 | 7.94 | – | – | – | 335 |
| 7/3.05 | 3/8 | 9.52 | 30.915 | 48.04 | 68.503 | 407 |
| 7/3.68 | 7/16 | 11.11 | 41.591 | 64.499 | 92.523 | 594 |
| 7/4.19 | 1/2 | 12.7 | 53.823 | 83.627 | 119.657 | 768 |
| 7/4.78 | 9/16 | 14.29 | 69.837 | 108.981 | 155.688 | 991 |
| 7/5.26 | 5/8 | 15.88 | 84.961 | 131.667 | 188.605 | 1211 |
| 19/2.54 | 1/2 | 12.7 | 56.492 | 84.961 | 118.768 | 751 |
| 19/2.87 | 9/16 | 12.49 | 71.616 | 107.202 | 149.905 | 948 |
| 19/3.18 | 5/8 | 15.88 | 80.513 | 124.995 | 178.819 | 1184 |
| 19/3.81 | 3/4 | 19.05 | 116.543 | 181.487 | 259.331 | 1719 |
| 19/4.50 | 7/8 | 22.22 | 159.691 | 248.211 | 354.523 | 2352 |
| Galvanized Steel Wire Strand BS183:1972 | |||||||||
|
Number of Wires/Dia. |
Approx.Strand Dia. |
Minimum Breaking Load of Strand |
Approx Weight |
||||||
| Grade 350 | Grade 480 | Grade 700 | Grade 850 | Grade 1000 | Grade 1150 | Grade 1300 | |||
| mm | kN | kN | kN | kN | kN | kN | kN | Kg/km | |
| 3/1.80 | 3.9 | 2.65 | 3.66 | – | – | – | – | – | 60 |
| 3/2.65 | 5.7 | 5.8 | 7.95 | – | – | – | – | – | 130 |
| 3/3.25 | 7 | 8.7 | 11.95 | – | – | – | – | – | 195 |
| 3/4.00 | 8.6 | 13.2 | 18.1 | – | – | – | – | – | 295 |
| 4/1.80 | 4.4 | 3.55 | 4.9 | – | – | – | – | – | 80 |
| 4/2.65 | 6.4 | 7.7 | 10.6 | – | – | – | – | – | 172 |
| 4/3.25 | 7.9 | 11.6 | 15.9 | – | – | – | – | – | 260 |
| 4/4.00 | 9.7 | 17.6 | 24.1 | 35.2 | – | – | – | – | 390 |
| 5/1.50 | 4.1 | 3.1 | 4.24 | 6.18 | – | – | – | – | 69 |
| 5/1.80 | 4.9 | 4.45 | 6.1 | 8.9 | – | – | – | – | 95 |
| 5/2.65 | 7.2 | 9.65 | 13.25 | 19.3 | – | – | – | – | 220 |
| 5/3.25 | 8.8 | 14.5 | 19.9 | 29 | – | – | – | – | 320 |
| 5/4.00 | 10.8 | 22 | 30.15 | 43.95 | – | – | – | – | 490 |
| 7/0.56 | 1.7 | 0.6 | 0.83 | 1.2 | – | 1.7 | 1.98 | 2.24 | 14 |
| 7/0.71 | 2.1 | 0.97 | 1.33 | 1.94 | – | 2.75 | 3.19 | 3.6 | 28 |
| 7/0.85 | 2.6 | 1.39 | 1.9 | 2.8 | – | 3.95 | 4.57 | 5.15 | 31 |
| 7/0.90 | 2.7 | 1.55 | 2.14 | 3..1 | – | 4.45 | 5.12 | 5.8 | 35 |
| 7/1.00 | 3 | 1.92 | 2.64 | 3.85 | – | 5.5 | 6.32 | 7.15 | 43 |
| 7/1.25 | 3.8 | 3.01 | 4.1 | 6 | – | 8.55 | 9.88 | 11.15 | 67 |
| 7/1.40 | 4.2 | 3.75 | 5.17 | 7.54 | 9.16 | 10.75 | 12.35 | 14 | 84 |
| 7/1.60 | 4.8 | 4.9 | 6.75 | 9.85 | 11.95 | 14.1 | 16.2 | 18.3 | 110 |
| 7/1.80 | 5.4 | 6.23 | 8.55 | 12.45 | – | 17.8 | 20.5 | 23.2 | 140 |
| 7/2.00 | 6 | 7.7 | 10.55 | 15.4 | – | 22 | 25.3 | 28.6 | 170 |
| 7/2.36 | 7.1 | 10.7 | 14.7 | 21.4 | – | 30.6 | 35.2 | 39.8 | 240 |
| 7/2.65 | 8 | 13.5 | 18.5 | 27 | – | 38.6 | 44.4 | 50.2 | 300 |
| 7/3.00 | 9 | 17.3 | 23.75 | 34.65 | – | 49.5 | 56.9 | 64.3 | 392 |
| 7/3.15 | 9.5 | 19.1 | 26.2 | 38.2 | – | 54.55 | 62.75 | 70.9 | 430 |
| 7/3.25 | 9.8 | 20.3 | 27.85 | 40.65 | – | 58.05 | 66.8 | 75.5 | 460 |
| 7/3.65 | 11 | 25.6 | 35.15 | 51.25 | – | 73.25 | 84.2 | 95.2 | 570 |
| 7/4.00 | 12 | 30.9 | 42.2 | 61.6 | – | 88 | 101 | 114 | 690 |
| 7/4.25 | 12.8 | 34.75 | 47.65 | 69.5 | – | 99.3 | 114 | 129 | 780 |
| 7/4.75 | 14 | 43.4 | 59.45 | 86.8 | – | 124 | 142.7 | 161.3 | 970 |
| 19/1.00 | 5 | 5.22 | 7.16 | 10.45 | – | 14.92 | 17.16 | 19.4 | 120 |
| 19/1.25 | 6.3 | 8.16 | 11.19 | 16.32 | – | 23.32 | 26.81 | 30.31 | 180 |
| 19/1.40 | 7 | 10.24 | 14.04 | 20.47 | – | 29.25 | 33.64 | 38.02 | 230 |
| 19/1.60 | 8 | 13.37 | 18.35 | 26.75 | – | 38.2 | 43.93 | 49.66 | 300 |
| 19/2.00 | 10 | 20.9 | 28.65 | 41.78 | 50.74 | 59.69 | 68.64 | 77.6 | 470 |
| 19/2.50 | 12.5 | 32.65 | 44.8 | 65.29 | 79.28 | 93.27 | 107.3 | 121.3 | 730 |
| 19/3.00 | 15 | 47 | 64.5 | 94 | 114.1 | 134.3 | 154.5 | 174.6 | 1050 |
| 19/3.55 | 17.8 | 65.8 | 90.27 | 131.6 | 159.9 | 188 | 216.3 | 244.5 | 1470 |
| 19/4.00 | 20 | 83.55 | 114.6 | 167.1 | 203 | 238.7 | 274.6 | 310.4 | 1870 |
| 19/4.75 | 23.8 | 117.85 | 161.4 | 235.7 | 286 | 336.7 | 387.2 | 437.7 | 2630 |
| 7/1.60 | 4.8 | 4.9 | 6.75 | 9.85 | 11.95 | 14.1 | 16.2 | 18.3 | 110 |
| 7/1.80 | 5.4 | 6.23 | 8.55 | 12.45 | – | 17.8 | 20.5 | 23.2 | 140 |
| 7/2.00 | 6 | 7.7 | 10.55 | 15.4 | – | 22 | 25.3 | 28.6 | 170 |
| 7/2.36 | 7.1 | 10.7 | 14.7 | 21.4 | – | 30.6 | 35.2 | 39.8 | 240 |
| 7/2.65 | 8 | 13.5 | 18.5 | 27 | – | 38.6 | 44.4 | 50.2 | 300 |
| 7/3.00 | 9 | 17.3 | 23.75 | 34.65 | – | 49.5 | 56.9 | 64.3 | 392 |
| 7/3.15 | 9.5 | 19.1 | 26.2 | 38.2 | – | 54.55 | 62.75 | 70.9 | 430 |
| 7/3.25 | 9.8 | 20.3 | 27.85 | 40.65 | – | 58.05 | 66.8 | 75.5 | 460 |
