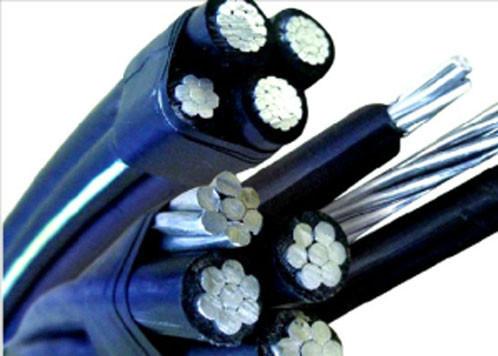

Long Life Al Aerial Bundled Cables ABC Cables 0.6/1 KV PVC / PE / XLPE Insulated
Long Life Al Aerial Bundled Cables ABC Cables 0.6/1 KV PVC / PE / XLPE Insulated image
Brand Name :
Chengtiantai
Model Number :
JKL
Certification :
IEC, Rosh，CCC
Place of Origin :
Shenzhen, China (mainland)
MOQ :
500 m
Price :
On Request
Payment Terms :
L/C, T/T
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
Steel Wooden Drum
Rate voltage :
0.6/1 kV
Conductor Material :
Aluminum
Application :
Overhead
Insulation :
PVC/ PE/ XLPE
Type :
Low Voltage
Neutral Conductor :
AAC, ACSR, AAAC
Application
Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system.
It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost.
LV Aerial Bundle Cables are designed to supply 600/1000 volt aerial service for temporary service at construction sites, as a service drop (power pole to service entrance), as a secondary cable (pole to pole) or street lighting.
|
Code Name |
Phase Conductor | Bare Neutral Messenger |
Weight Per 1000ft (lbs) |
Ampacity (amps) |
||||||
|
AWG Size |
COND. STRAND |
Insulation Thickness (mls) |
AWG Size |
COND. STRAND |
Breaking Strength (lbs) |
XLPE | Poly | XLPE | Poly | |
| 6201 ALLOY NEUTRAL-MESSENGER | ||||||||||
| Minex | 6 | Solid | 45 | 6 | 7 | 1,110 | 106.6 | 102.9 | 85 | 70 |
| Hippa | 6 | 7 | 45 | 6 | 7 | 1,110 | 113.2 | 105.7 | 85 | 70 |
| Prawn | 4 | Solid | 45 | 4 | 7 | 1,760 | 158.4 | 154.1 | 115 | 90 |
| Barnacles | 4 | 7 | 45 | 4 | 7 | 1,760 | 168.3 | 158.2 | 115 | 90 |
| Shrimp | 2 | 7 | 45 | 2 | 7 | 2,800 | 253.7 | 239.7 | 150 | 120 |
| Gammarus | 1/0 | 7 | 60 | 1/0 | 7 | 4,460 | 411.7 | 386.0 | 205 | 160 |
| Leda | 1/0 | 19 | 60 | 1/0 | 7 | 4,460 | 402.7 | 386.0 | 205 | 160 |
| Dungenese | 2/0 | 7 | 60 | 2/0 | 7 | 5,390 | 506.8 | 476.3 | 235 | 185 |
| Cyclops | 2/0 | 19 | 60 | 2/0 | 7 | 5,390 | 495.3 | 476.3 | 235 | 185 |
| Dlustra | 3/0 | 19 | 60 | 3/0 | 7 | 6,790 | 611.4 | 589.1 | 275 | 215 |
| Lepas | 4/0 | 19 | 60 | 4/0 | 7 | 8,560 | 757.1 | 730.5 | 315 | 245 |
| 6201 ALLOY REDUCED NEUTRAL-MESSENGER | ||||||||||
| Artemia | 4 | Solid | 45 | 6 | 7 | 1,110 | 141.4 | 137.1 | 115 | 90 |
| Crab | 4 | 7 | 45 | 6 | 7 | 1,110 | 151.3 | 141.2 | 115 | 90 |
| Solaster | 2 | 7 | 45 | 4 | 7 | 1,760 | 226.6 | 212.6 | 150 | 120 |
| Sandcrab | 1/0 | 7 | 60 | 2 | 7 | 2,800 | 368.8 | 343.1 | 205 | 160 |
| Echinus | 1/0 | 19 | 60 | 2 | 7 | 2,800 | 358.8 | 343.1 | 205 | 160 |
| Crayfish | 2/0 | 7 | 60 | 1 | 7 | 3,530 | 452.6 | 422.5 | 235 | 185 |
| Sipho | 2/0 | 19 | 60 | 1 | 7 | 3,530 | 441.0 | 422.5 | 235 | 185 |
| Fulgar | 3/0 | 19 | 60 | 1/0 | 7 | 4,460 | 543.4 | 521.1 | 275 | 215 |
| Arca | 4/0 | 19 | 60 | 2/0 | 7 | 5,390 | 671.2 | 644.6 | 315 |
245 |
*Dimensions and specifications may be changed without prior notice.
Packaging & Delivery
| Packaging details : |
Delivery : |
|
| Steel Wooden Drums | Cable Drum In container | shipped in 15 days after payment |
Cable Drum Data
| CABLE DRUMS | D1=Flange Diameter(mm) | W=Useful Width (mm) | D2=Barrel Diameter(mm) |
| 1000 | 700 | 500 | |
| 1100 | 700 | 550 | |
| 1200 | 700 | 600 | |
| 1400 | 750 | 710 | |
| 1600 | 900 | 900 | |
| 1800 | 1120 | 1000 | |
| 2400 | 1150 | 1300 |
Delivery Port:
| Port of Shenzhen | Port of Hongkong | Port of Guangzhou |
Our production in numbers
|
● Cable production started 1983 ● Sales in 2016 about 500 million USD ● 100,000 m2 Production area |
● 200 Sets Of Testing Equipment ● 100 Testing Items |
Some great shots of our manufactering plant
| Mannufacturing plant | R&D Building | Bird's eye view of the plant |
| MV Power Cable Workshop | Cable Reels Waiting to be shipped out | Shipping |
Shenzhen chengtiantai cable operates certified management systems compliant with:
| Certificat | Information | |
|
ISO 9001:2008 quality management systems |
Certificat ISO 9001:2008 |
|
|
ISO 14001:2004 environmental management systems |
Certificat ISO 14001:2004 – Shenzhen chengtiantai cable industry development Co.Ltd. Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 13 January 2019 |
|
|
OHSAS 18001:2007 assessment specification for occupational health & safety management systemsenvironmental management systems |
Certificat OHSAS 18001:2007 – Shenzhen chengtiantai cable industry development Co.Ltd. Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 13 January 2019 |
We are China Long Life Al Aerial Bundled Cables ABC Cables 0.6/1 KV PVC / PE / XLPE Insulated manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
