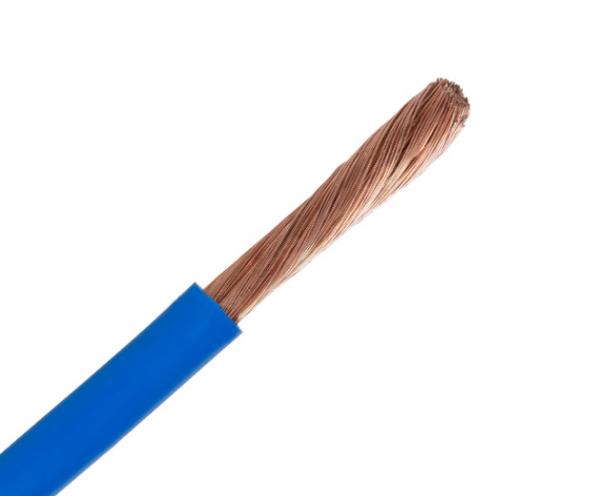

Lightning Flexible Electrical Cable OFC Conductor Low Voltage Double PVC Insulated
Lightning Flexible Electrical Cable OFC Conductor Low Voltage Double PVC Insulated image
MOQ :
100m
Price :
USD 0.87-2.66/M
Payment Terms :
L/C, T/T
Delivery Time :
7 Days after received deposit
Packaging Details :
Wooden drum
Application :
Industrial,Household
Sheath color :
Optional
Conductor Type :
Flexible
Product name :
Flexible Electrical Cable
Conductor Material :
Pure Copper
Insulation Material :
PVC
Brand Name :
HOLD-ONE
low voltage flame retardant power cable
Flexible Electrical Cable
1. 300/500V and /450/750V of flexible cable
2. Conductor Cu/CCA/AL

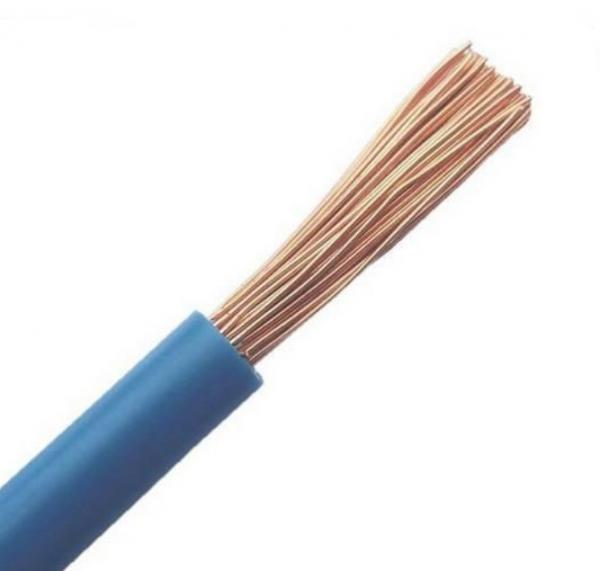

3. single core electrical cable
4. For fixed wiring
Conductors: pure cable /CCA
Insulation: PVC (Polyvinyl-Chloride)
Colour: any color for electricable
Brief construction
1) Conductor: Copper ,Stranded
2) Insulation: PVC
3) Sheath:PVC
4) Other special characteristics: Design and manufacture according to the requirements of customers.
Flexible Electrical Cable Application
Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power
plant, household electrical applance,insurment and telecommunication equipment.
Service performance
1) Long-term working temperature: not be higher than 70°C
2) When laying the cable, the ambient temperature should not lower than 0°C
3) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.
Number of cores | Normal area (mm²) |
Structure (m) |
Approx overall dia (mm) |
2 cores | 0.5 | 28/0.15 | 5.2 |
0.75 | 24/0.2 | 6.4 | |
1 | 32/0.2 | 6.6 | |
1.5 | 30/0.25 | 7.6 | |
2.5 | 49/0.25 | 9.4 | |

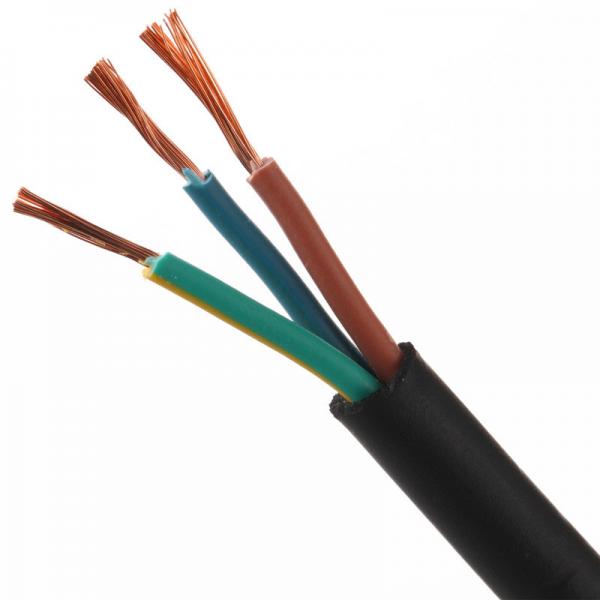

3 cores | 0.5 | 28/0.15 | 5.5 |
0.75 | 24/0.2 | 7.2 | |
1 | 32/0.2 | 7.2 | |
1.5 | 30/0.25 | 8.5 | |
2.5 | 49/0.25 | 10 | |
4 | 56/0.3 | 11.7 | |
6 | 84/0.3 | 13 | |
4 cores | 1 | 32/0.2 | 8 |
1.5 | 30/0.25 | 9.2 | |
2.5 | 49/0.25 | 11 | |
4 | 56/0.3 | 12.8 | |
6 | 84/0.3 | 15.4 | |
10 | 126/0.32 | 18.8 | |
5 core | 1.5 | 30/0.25 | 10.7 |
2.5 | 49/0.25 | 12.8 | |
4 | 56/0.3 | 14.5 | |
6 | 84/0.3 | 16.4 | |
10 | 126/0.32 | 21.1 | |
16 | 126/0.40 | 25.4 |
We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.
We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
We are China Lightning Flexible Electrical Cable OFC Conductor Low Voltage Double PVC Insulated manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
