Large Transmission Capacity Bare Aluminum Conductor For Overhead Line IEC60502
Large Transmission Capacity Bare Aluminum Conductor For Overhead Line IEC60502 image
Brand Name :
TANO CABLE
Model Number :
ACSR
Certification :
ISO, CCC, CE
Place of Origin :
China
MOQ :
1000meter
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T
Supply Ability :
2000km per month
Delivery Time :
5-25 working days
Packaging Details :
by wooden or iron-wooden drum
material :
aluminum and steel wire
core :
Negotiate
insulation :
None
application :
overhead line
Standard :
IEC60502,ASTM,BS,IEC,GB/T1179-2208
Packing :
wooden drum

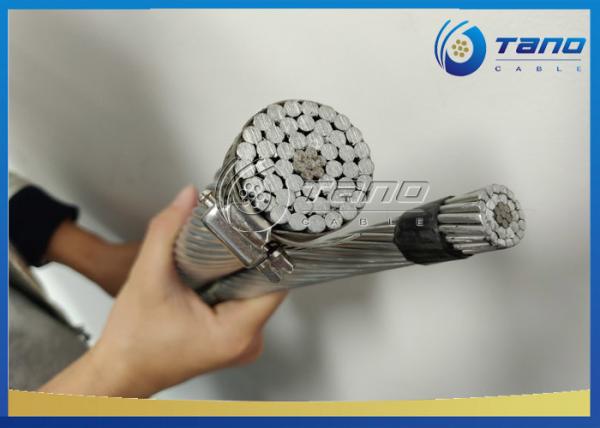

TANO CABLE Aluminum ACSR Conductor Steel Reinforced Transmission Line
Applications
ACSR conductor widely used in power transmission lines with various voltage levels, since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical features exist.
Standard
ASTM B 232/B 232M
Specification
Code Number | Nominal Area | No./Nominal diameter of wires | Approximate Overall Diameter | Approximate Weight | Nominal Breaking Load | Nominal DC Resistance at 20℃ | Current Rating(*) | |||
Aluminum | Steel | Total | Aluminum | Steel | ||||||
mm2 | mm2 | mm2 | No./mm | No./mm | mm | kg/km | KN | ohm/km | A | |
Turkey | 13.3 | 2.22 | 15.52 | 6/1.68 | 1/1.68 | 5.04 | 53.6 | 4.98 | 2.1499 | 76 |
Swan | 21.18 | 3.53 | 24.71 | 6/2.12 | 1/2.12 | 6.36 | 85.3 | 7.83 | 1.3501 | 101 |
Swanate | 21.12 | 5.35 | 26.47 | 7/1.96 | 1/2.61 | 6.53 | 99.6 | 9.79 | 1.3539 | 102 |
Sparrow | 33.59 | 5.6 | 39.19 | 6/2.67 | 1/2.67 | 8.01 | 135.7 | 11.92 | 0.8512 | 135 |
Sparate | 33.54 | 8.55 | 42.09 | 7/2.47 | 1/3.30 | 8.24 | 158.7 | 15.08 | 0.8525 | 135 |
Robin | 42.41 | 7.07 | 49.48 | 6/3.00 | 1/3.00 | 9 | 171.1 | 14.86 | 0.6742 | 156 |
Raven | 53.52 | 8.92 | 62.44 | 6/3.37 | 1/3.37 | 10.11 | 216.1 | 18.33 | 0.5343 | 180 |
Quail | 67.33 | 11.22 | 78.55 | 6/3.78 | 1/3.78 | 11.34 | 272 | 22.46 | 0.4247 | 207 |
Pigeon | 85.12 | 14.19 | 99.31 | 6/4.25 | 1/4.25 | 12.75 | 343 | 28.02 | 0.3359 | 239 |
Penguin | 107.22 | 17.87 | 125.09 | 6/4.77 | 1/4.77 | 14.31 | 432.7 | 35.36 | 0.2667 | 275 |
Waxwing | 134.98 | 7.5 | 142.48 | 18/3.09 | 1/3.09 | 15.45 | 430.2 | 29.8 | 0.2129 | 313 |
Partridge | 134.87 | 21.99 | 156.86 | 26/2.57 | 7/2.00 | 16.28 | 545.9 | 47.15 | 0.2141 | 316 |
Ostrich | 152.19 | 24.71 | 176.9 | 26/2.73 | 7/2.12 | 17.28 | 613.4 | 53.38 | 0.1897 | 341 |
Merlin | 170.22 | 9.46 | 179.68 | 18/3.47 | 1/3.47 | 17.35 | 542.8 | 37.36 | 0.1688 | 361 |
Linnet | 170.55 | 27.83 | 198.38 | 26/2.89 | 7/2.25 | 18.31 | 687.5 | 59.16 | 0.1693 | 365 |
Oriole | 170.5 | 39.78 | 210.28 | 30/2.69 | 7/2.69 | 18.83 | 783.3 | 72.06 | 0.1698 | 367 |
Chickadee | 200.93 | 11.16 | 212.09 | 18/3.77 | 1/3.77 | 18.85 | 641.3 | 43.15 | 0.143 | 400 |
Brant | 201.56 | 26.13 | 227.69 | 24/3.27 | 7/2.18 | 19.62 | 761 | 61.83 | 0.1433 | 403 |
Ibis | 201.34 | 32.73 | 234.07 | 26/3.14 | 7/2.44 | 19.88 | 812.4 | 68.05 | 0.1434 | 404 |
Lark | 200.9 | 46.88 | 247.78 | 30/2.92 | 7/2.92 | 20.44 | 925.2 | 84.07 | 0.1441 | 406 |
Pelican | 242.31 | 13.46 | 255.77 | 18/4.14 | 1/4.14 | 20.7 | 769.7 | 51.15 | 0.1186 | 448 |
Flicker | 241.58 | 31.4 | 272.98 | 24/3.58 | 7/2.39 | 21.49 | 913.5 | 72.06 | 0.1195 | 450 |
Hawk | 241.65 | 39.19 | 280.84 | 26/3.44 | 7/2.67 | 21.77 | 975.1 | 81.84 | 0.1195 | 451 |
Hen | 241.27 | 56.3 | 297.57 | 30/3.20 | 7/3.20 | 22.4 | 1110.6 | 98.3 | 0.12 | 453 |
Osprey | 282.47 | 15.69 | 298.16 | 18/4.47 | 1/4.47 | 22.35 | 897.7 | 59.6 | 0.1017 | 492 |
Parakeet | 282.31 | 36.6 | 318.91 | 24/3.87 | 7/2.58 | 23.22 | 1065.6 | 83.18 | 0.1023 | 495 |
Dove | 282.59 | 45.92 | 328.51 | 26/3.72 | 7/2.89 | 23.55 | 1138.6 | 94.3 | 0.1022 | 497 |
Eagle | 282.07 | 65.82 | 347.89 | 30/3.46 | 7/3.46 | 24.22 | 1295.6 | 114.76 | 0.1026 | 499 |
Peacock | 306.13 | 39.78 | 345.91 | 24/4.03 | 7/2.69 | 24.19 | 1158.9 | 90.74 | 0.0943 | 520 |
Squab | 305.83 | 49.81 | 355.64 | 26/3.87 | 7/3.01 | 24.51 | 1237 | 101.41 | 0.0944 | 521 |
Wood Duck | 307.06 | 71.65 | 378.71 | 30/3.61 | 7/3.61 | 25.27 | 1408.4 | 121.43 | 0.0943 | 525 |
Teal$ | 307.06 | 69.62 | 376.68 | 30/3.61 | 19/2.16 | 25.24 | 1396.6 | 124.54 | 0.0943 | 525 |
Kingbird | 323.01 | 17.95 | 340.96 | 18/4.78 | 1/4.78 | 23.9 | 1026.6 | 68.05 | 0.089 | 533 |
Swift | 323.02 | 8.97 | 331.99 | 36/3.38 | 1/3.38 | 23.66 | 956.5 | 60.05 | 0.089 | 532 |
Rook | 323.07 | 41.88 | 364.95 | 24/4.14 | 7/2.76 | 24.84 | 1217.5 | 95.19 | 0.0894 | 537 |
Grosbeak | 321.84 | 52.49 | 374.33 | 26/3.97 | 7/3.09 | 25.15 | 1300.8 | 104.97 | 0.0897 | 537 |
Scoter | 322.56 | 75.26 | 397.82 | 30/3.70 | 7/3.70 | 25.9 | 1480.7 | 127.66 | 0.0897 | 541 |
Egret$ | 322.56 | 73.54 | 396.1 | 30/3.70 | 19/2.22 | 25.9 | 1469 | 130.77 | 0.0897 | 541 |
Flamingo | 337.27 | 43.72 | 380.99 | 24/4.23 | 7/2.82 | 25.38 | 1276.6 | 99.64 | 0.0856 | 551 |
Gannet | 338.26 | 54.9 | 393.16 | 26/4.07 | 7/3.16 | 25.76 | 1363.3 | 110.31 | 0.0854 | 553 |
Stilt | 363.27 | 46.88 | 410.15 | 24/4.39 | 7/2.92 | 26.32 | 1370.4 | 107.2 | 0.0795 | 576 |
Starling | 361.93 | 59.15 | 421.08 | 26/4.21 | 7/3.28 | 26.68 | 1463.7 | 118.32 | 0.0798 | 577 |
Redwing$ | 362.06 | 82.41 | 444.47 | 30/3.92 | 19/2.35 | 27.43 | 1650.6 | 143.23 | 0.0799 | 580 |
Coot | 401.86 | 11.16 | 413.02 | 36/3.77 | 1/3.77 | 26.39 | 1195.8 | 73.39 | 0.0715 | 607 |
Tern | 403.77 | 27.83 | 431.6 | 45/3.38 | 7/2.25 | 27.03 | 1331.8 | 94.3 | 0.0715 | 610 |
Condor | 402.33 | 52.15 | 454.48 | 54/3.08 | 7/3.08 | 27.72 | 1520.7 | 118.32 | 0.0718 | 612 |
Cuckoo | 402.33 | 52.15 | 454.48 | 24/4.62 | 7/3.08 | 27.72 | 1522.2 | 117.43 | 0.0718 | 612 |
Drake | 402.56 | 65.44 | 468 | 26/4.44 | 7/3.45 | 28.11 | 1626.4 | 131.66 | 0.0717 | 615 |
Mallard$ | 403.84 | 91.78 | 495.62 | 30/4.14 | 19/2.48 | 28.96 | 1836 | 159.24 | 0.0717 | 619 |
Ruddy | 455.5 | 31.67 | 487.17 | 45/3.59 | 7/2.40 | 28.74 | 1507.3 | 104.53 | 0.0634 | 656 |
Canary | 456.28 | 59.15 | 515.43 | 54/3.28 | 7/3.28 | 29.52 | 1723.1 | 134.33 | 0.0633 | 660 |
Catbird | 484.61 | 13.46 | 498.07 | 36/4.14 | 1/4.14 | 28.98 | 1434.4 | 86.74 | 0.0593 | 679 |
Rail | 483.84 | 33.54 | 517.38 | 45/3.70 | 7/2.47 | 29.61 | 1598.1 | 110.76 | 0.0597 | 680 |
Cardinal | 484.53 | 62.81 | 547.34 | 54/3.38 | 7/3.38 | 30.42 | 1825.9 | 142.34 | 0.0596 | 685 |
Tanager | 522.79 | 14.52 | 537.31 | 36/4.30 | 1/4.30 | 30.1 | 1553.5 | 93.85 | 0.055 | 710 |
Orotlan | 523.87 | 36.31 | 560.18 | 45/3.85 | 7/2.57 | 30.81 | 1730.5 | 118.32 | 0.0551 | 713 |
Curlew | 522.51 | 67.73 | 590.24 | 54/3.51 | 7/3.51 | 31.59 | 1977.6 | 153.9 | 0.0553 | 716 |
Bluejay | 565.49 | 38.9 | 604.39 | 45/4.00 | 7/2.66 | 31.98 | 1866 | 127.66 | 0.0511 | 745 |
Finch $ | 565.03 | 71.57 | 636.6 | 54/3.65 | 19/2.19 | 32.85 | 2127.8 | 164.58 | 0.0514 | 748 |
Bunting | 605.76 | 41.88 | 647.64 | 45/4.14 | 7/2.76 | 33.12 | 1996.9 | 136.55 | 0.0477 | 776 |
Grackle$ | 602.79 | 76.89 | 679.68 | 54/3.77 | 19/2.27 | 33.97 | 2278.1 | 176.59 | 0.0481 | 777 |
Skylark | 646.02 | 17.95 | 663.97 | 36/4.78 | 1/4.78 | 33.46 | 1913.6 | 115.65 | 0.0445 | 804 |
Bittern | 644.4 | 44.66 | 689.06 | 45/4.27 | 7/2.85 | 34.17 | 2130.8 | 145.89 | 0.0448 | 805 |
Pheasant$ | 645.08 | 81.71 | 726.79 | 54/3.90 | 19/2.34 | 35.1 | 2431.4 | 183.26 | 0.045 | 808 |
Dipper | 684.24 | 47.2 | 731.44 | 45/4.40 | 7/2.93 | 35.19 | 2263.2 | 154.79 | 0.0422 | 834 |
Martin$ | 685.39 | 86.67 | 772.06 | 54/4.02 | 19/2.41 | 36.17 | 2581.7 | 194.82 | 0.0423 | 838 |
Bobolink | 725.27 | 50.14 | 775.41 | 45/4.53 | 7/3.02 | 36.24 | 2397.2 | 164.13 | 0.0398 | 862 |
Plover$ | 726.92 | 91.78 | 818.7 | 54/4.14 | 19/2.48 | 37.24 | 2734.9 | 206.39 | 0.0399 | 866 |
Nuthatch | 764.2 | 52.83 | 817.03 | 45/4.65 | 7/3.10 | 37.2 | 2529.6 | 171.25 | 0.0378 | 888 |
Parrot$ | 766.06 | 97.03 | 863.09 | 54/4.25 | 19/2.55 | 38.25 | 2883.7 | 217.51 | 0.0379 | 892 |
Lapwing | 807.53 | 55.6 | 863.13 | 45/4.78 | 7/3.18 | 38.22 | 2663.5 | 180.14 | 0.0358 | 916 |
Falcon$ | 806.23 | 102.43 | 908.66 | 54/4.36 | 19/2.62 | 39.26 | 3038.5 | 229.52 | 0.036 | 919 |
Chukar$ | 903.18 | 73.54 | 976.72 | 84/3.70 | 19/2.22 | 40.7 | 3083.1 | 217.51 | 0.0321 | 976 |
Bluebird$ | 1092.84 | 88.84 | 1181.68 | 84/4.07 | 19/2.44 | 44.76 | 3731.9 | 256.65 | 0.0266 | 1083 |
Kiwi$ | 1099.76 | 47.52 | 1147.28 | 72/4.41 | 7/2.94 | 44.1 | 3423.9 | 215.28 | 0.0264 | 1083 |
Thrasher$ | 1171.42 | 63.94 | 1235.36 | 76/4.43 | 19/2.07 | 45.79 | 3754.2 | 243.75 | 0.0248 | 1122 |
