Large Diameter Conductor Cable Pulling Stringing Block MC Nylon
Large Diameter Conductor Cable Pulling Stringing Block MC Nylon image
Brand Name :
Suntech
Model Number :
SHD660
Certification :
ISO9001
Place of Origin :
Ningbo,China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
800pcs per month
Delivery Time :
5-7 days after deposit
Packaging Details :
Exported Box or Pallets
Material :
MC Nylon, Cast-steel Sheave
Item :
Overhead Line Stringing Pulley
Name :
Stringing blocks
Conductor :
Rubber Lined Aluminum Sheave
Size :
SHD660
Weight :
100kg

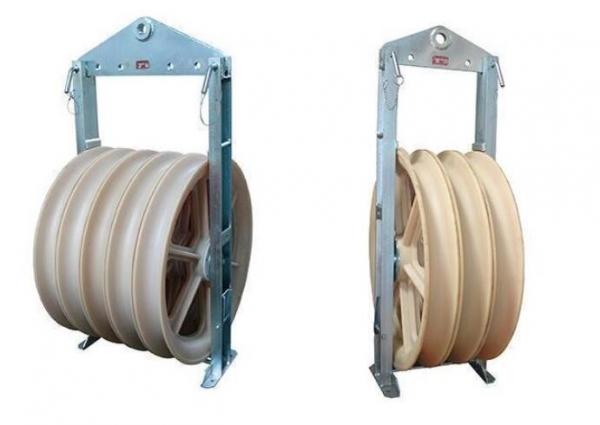

Large Diameter Conductor Cable Pulling Pulley Stringing Block MC Nylon Block
Quick details:
1. Transmission Line Stringing Accessories
2. Conductor/Cable/OPGW Bundled Conductor Pulley
3. Diameter: 660mm, Width: 110mm
4. One, Three, Five wheel
5. With Rubber Covered or Without
6. Middle:cast steel sheave.
Application
In transmission power line and communications cable installation work, stringing job is a must , and various of tools will be applied for this job, in which conductor stringing block is one of them. It is a very good tool to protect cables and conductors.
Conductor Pulley Block Specifications
| Item Number | Model | Number of Sheave |
Rated Load (kN) |
Weight (kg) | Features |
| 10121 | SHD660 | 1 | 20 | 30 | Rubber coated aluminum sheave |
| 10122 | SHS660 | 3 | 40 | 106 | Middle: cast steel sheave with the width of 90mm Conductor: rubber coated aluminum sheave |
| 10123 | SHW660 | 5 | 60 | 150 | |
| 10124 | SHDN660 | 1 | 20 | 24 | MC nylon sheave |
| 10125 | SHSLN660 | 3 | 40 | 92 | Middle: MC nylon sheave Conductor: rubber coated aluminum sheave |
| 10126 | SHWLN660 | 5 | 60 | 120 | |
| 10127 | SHSQN660 | 3 | 40 | 76 | MC nylon sheave |
| 10128 | SHWQN660 | 5 | 60 | 110 | |
| 10129 | SHQZ660 | 7 | 80 | 268 | Middle: cast steel sheave Conductor: rubber coated aluminum sheave |
| 10130 | SHQ660A | 7 | 75 | 190 | Middle: cast steel sheave Conductor: MC nylon sheave |
We are China Large Diameter Conductor Cable Pulling Stringing Block MC Nylon manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Cable Pulling Stringing Block, conductor stringing blocks, Large Diameter Conductor Stringing Blocks, MC Nylon Stringing BlockSimilar Or Related
