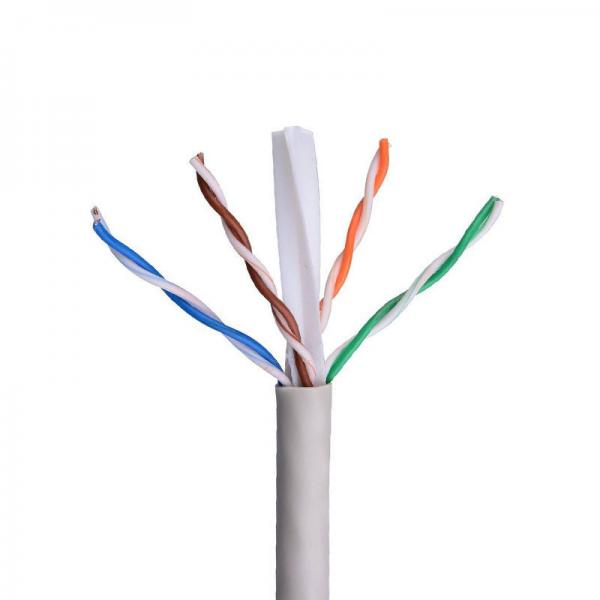

Lan cable 1000Ft 23Awg twisted pairs 305m network cable Cat 6

Lan cable 1000Ft 23Awg twisted pairs 305m network cable Cat 6 image

Get a Quote Email to us

Brand Name :
JHY CABLE

Model Number :
network cable

Certification :
CE/ROHS/ISO9001

Place of Origin :
SHENZHEN CHINA

MOQ :
10 boxes

Price :
Negotiable

Payment Terms :
L/C, T/T

Supply Ability :
20 kilometer/ day

Delivery Time :
10~15 working days

Packaging Details :
305 meters per box or according to the customer’s request.

Conductor :
Bare copper wire

Conductor Size :
0.35mm–0.58mm

Core :
4 Twist Pairs

AWG (Gauge) :
23AWG/24AWG/26AWG

Insulation Material :
HDPE

Shield type :
Utp, Ftp, Sftp

Jacket Material :
PE/LSZH/ PVC

Jacket Color :
Grey/blue or as required

Length :
305m 1000ft

Application :
Networking

Lan cable 1000Ft 23Awg twisted pairs 305m network cable Cat 6

Production Description:

1. Production Parameters:

Cable Type	CAT6 network cable
Cable Material	BC
Jacket color	Grey, blue, black, white, yellow, or others
OD	6.0*1.4mm
Jacket Material	PVC

Item (n)	structure (mm)	Insulation Thickness (mm)	Approx overall dia. (mm)
FTP Cat 6	4×0.50	0.98	7.3
FTP Cat 6	4×0.55	1.03	7.4
FTP Cat 6	4×0.57	1.05	7.4
UTP Cat 6	4×0.50	0.96	6.3
UTP Cat 6	4×0.55	1.01	6.4
UTP Cat 6	4×0.57	1.03	6.4

2. Core Identification

3. Production Features

Suitable for Fast, Gigabit, and 10-Gigabit Ethernet
Digital Communication Applications of up to 550MHz Bandwidth
4-Pair Easily Identified Color-Striped Pairs Cat6 Cabl
CE / ISO / RoHS Approved, PVC Jacket Use Indoors
Exceeds ANSI/TIA 568-C.2 , ISO/IEC 11801 Standards
Excellent Attenuation and Crosstalk Characteristics .

4. Company Certificates

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

5. Application

Exceeds ANSI/TIA-568-C.2 Cat.6 and ISO 11801 2nd Edition Class E channel standards.
Exceeds requirements of ANSI/TIA-568.C.2 and IEC 61156-5 Cat.6 component standards.
Meets IEEE802.3af and IEEE 802.3 at for PoE applications.

6. Tabular data

Construction

	1.Conductor	bare copper
	2. Insulation	HDPE
	3. sheath	PVC
	4. Shield	AL,TC, AM
	5. Cross	Environment protection PE
	6. Drain wire	TC
	7. Rip cord:	Nylon

Packaging

Approx.Weight	Package	Package Dimension(cm)	Outer packing
13.8 kg	305 m per box	42 x 42 x 24	Carton box

7. Product Image

Product Package

Fluke Test Report

Product compare

Jinhuanyu product other products

8. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

9. Company information

Company Contact Information:

OUR SERVICE

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Email: [email protected]

Website: Http://www.sz-hy.cn
Website on alibaba.com: sz-jhy.en.alibaba.com

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

Company established time: Since 1993
26 years of cable manufacturing and sales experience
Annual sales of about 600 million US dollar
150,000 m2 Production area
Over 1000 Will-trained employees
4 industrial parks
Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106

We are China Lan cable 1000Ft 23Awg twisted pairs 305m network cable Cat 6 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
