ITU Fiber Optic Cable
ITU Fiber Optic Cable image
Brand Name :
Geto Telecom
Model Number :
ADSS
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
1000M
Price :
0.3
Payment Terms :
L/C, T/T
Supply Ability :
3000 M/Day
Delivery Time :
5-8 Days
Packaging Details :
Drum
Product Name :
ADSS Fiber Cable
Fiber Type :
ITU G652D ,G657A,OM1,OM2,OM3,OM4
Fiber Core :
4-96 Cores
Application :
self supporting outdoor fiber optic cable
Armored :
Yes
Operating Temperature :
-40℃ to + 70℃
Out sheath :
Black Polyethylene (PE)
Packing :
1km/2km/4km/roll
Color :
Black, Usually Black Color, blue or others, Aqua, yellow
Jacket material :
LSZH, PVC, PE, TPU, PVC/LSZH
Sheath :
MDPE/HDPE, PLENUM, LSZH, PVC, ect
Strength member :
steel wire, Metallic wire, FRP
fiber optic outdoor cable Single Sheath ADSS Fiber Cable
Description
Single sheath ADSS (All-dielectric self-supporting) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements. It is used by electrical utility companies as a communications medium, installed along existing overhead transmission lines and often sharing the same support structures as the electrical conductors.
Characteristics
Excellent water-blocking performance;
Excellent resistance to lateral pressure, and mechanical and temperature performance.
Excellent performance of resistance to electromagnetic interference.
Specification

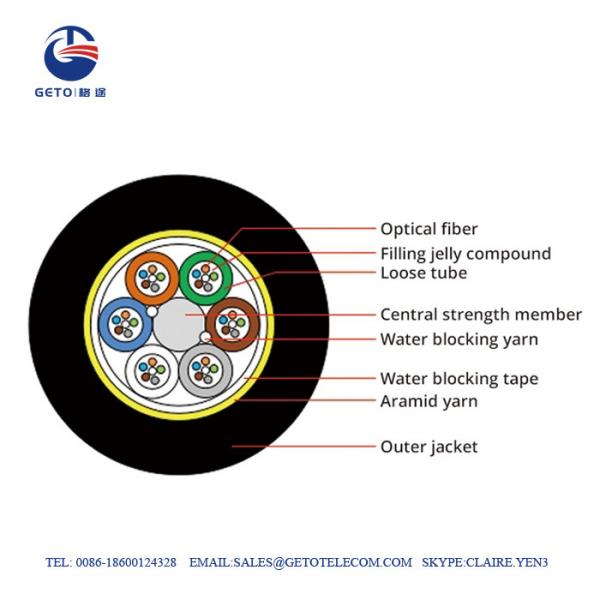

Single Sheath ADSS (loose tube stranding, Non-metal strength member, Half dry water-blocking, PE inner sheath, Aramid yarn strength member, PE outer sheath)
| Item | 62.5μm(OM1) 850nm/1300nm |
50μm(OM2) 850nm/1300nm |
G. 652 1310nm/1550nm |
G. 655 1550nm/1625nm |
| Attenuation Of Maximum Value(dB/km) | 3.5/1. 5 | 3.5/1. 5 | 0. 36/0. 22 | 0. 22/0. 26 |
| Attenuation Of Typical Value(dB/km) | 3.5/1. 5 | 3.0/1. 0 | 0. 35/0. 21 | 0. 21/0. 24 |
| Structure parameters: | |||||||
| Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) |
CSM diameter/pad diameter(mm) | Thickness of outer jacket(mm) | Cable diameter(mm) | Cable weight (kg/km) |
| 4 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 80 |
| 6 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
| 8 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
| 12 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
| 24 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 83 |
| 36 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 83 |
| 48 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7±0.1 | 11.3±0.5 | 97 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7±0.1 | 11.3±0.5 | 98 |
| 96 | 1+8 | 12 | 2.2±0.1 | 3.0/3.9 | 1.7±0.1 | 12.5±0.5 | 122 |
| Cable Type | Drum | ||||
| Height(mm) | Width (mm) | Inner Diameter (mm) | Length (Km) | Drum Type | |
| ADSS-4 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-6 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-8 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-12 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-24 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-36 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-48 | 950 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-72 | 950 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-96 | 1200 | 760 | 650 | 2 | Plywood wood drum |
Our service
1, Product consulting service
2, Cost-saving advice
3, Fast response speed to needs
4, Professional and complete reference documents
5, Safe and cheap transportation solutions
6, 7*24 Hours After Sales Service
Contact us
Email: [email protected]
Whatsapp/Tel: 86-18600124328
Web: www.getotelecom.com
Company
We are China ITU Fiber Optic Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
