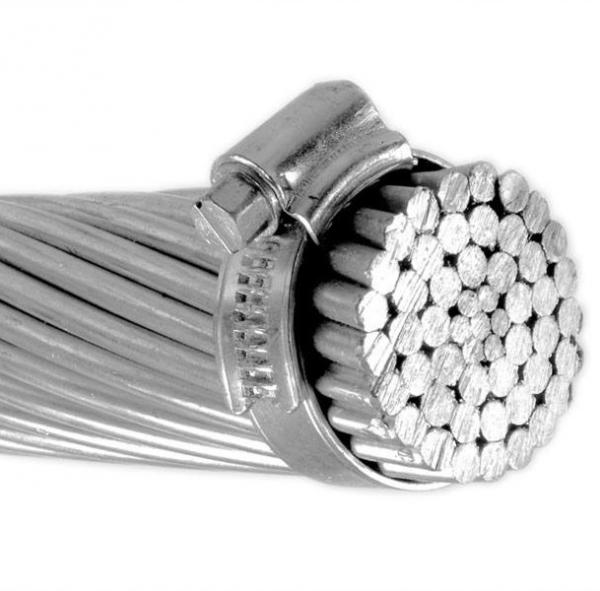

Iso All Aluminium Alloy Acsr Panther Conductor High Voltage

Iso All Aluminium Alloy Acsr Panther Conductor High Voltage image

Get a Quote Email to us

Brand Name :
Sanwu

Model Number :
ACSR, ACSR

Certification :
ISO CCC

Place of Origin :
Henan

MOQ :
1000M

Price :
USD 0.5 M

Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability :
200 tons per day

Delivery Time :
1-15days

Packaging Details :
To be negotiated

Type :
High Voltage

Conductor Material :
Aluminum

Span :
100-150

Diameter :
11.0mm-12.0mm

Insulation Material :
No

Products Description

Application Features

Use in aerial bundled conductor (ABC) systems for city power grid transmission line.

Operating voltage up to 600/1000 volts. Main for overhead single-phase and three-phase electricity distribution and other purposes.Stable working temperature -10°C to 80°C Economical – Good electricity property and cheaper than cooper cables.Flexible – easy to install and work with distributions and other applications.Safe – prevent electric short circuit and potential risk of fire.Durable – anti UV Radiation and moisture, Corrosion Resistance.Aesthetically pleasing – Good finishing is guaranteed.Adaptable – physical properties and electricity suits Africa environment and market.

Specifications

Conductor Technical Structure			Unit	Value
Structure		Center: steel wire	Nos./mm	1/2.0
		Layer 1:steel wire		6/2.0
		Layer 2: Aluminum wire		10/2.57
		Layer 3: Aluminum wire		16/2.57
Standard			/	GB/T1179/IEC 61089/ASTM B232 / B232M-2009 / B498
Stranding direction of outer layer			Direction	Right-hand
Conductor diameter			mm	16.28±1％
Cross section			mm2	156.8±1％
Conductor weight			kg/km	547.8±1％
Rated tensile strength			kN	52
Modulus of Elasticity			GPa	73.9
Coefficient of linear expansion			10-6/℃	18.9
Max. DC Resistance at 20℃			Ohm/ft	0.637
Lay ratio	Aluminum layer		times	16-wire layer 10-14 10-wire layer 10-16
	Steel layer			6-wire layer 18-30

Properties of Aluminum Wire (Before Stranding)	Unit	Value
Diameter and tolerance	mm	2.57±0.03
Min. tensile strength	MPa	175
Min. elongation at 250mm	%	1.7
Max. resistivity at 20℃	Ω·mm2/m	0.028172

<tr style="box-sizing: border-box; margin: 0px; padding: 0px; font-style: inherit; font-variant: inherit; font-weight:

We are China Iso All Aluminium Alloy Acsr Panther Conductor High Voltage manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

Similar Or Related

No related articles

Quick Contact

If you have any questions or would like to book a session please contact us.

FAST AND RELIABLE SERVICE FOR YOUR PROJECT

Contact our trained experts today to find your perfect power solution.

ASK A QUESTION

Properties of Steel wire (Before stranding)	Unit	Value
Diameter and tolerance	mm	2.0±0.02
Min. tensile strength	MPa	1410
Min. tension at 1% elongation	MPa	1280
Min elongation at 250 mm	%	3.5
Class of zinc coating	/	Class A
